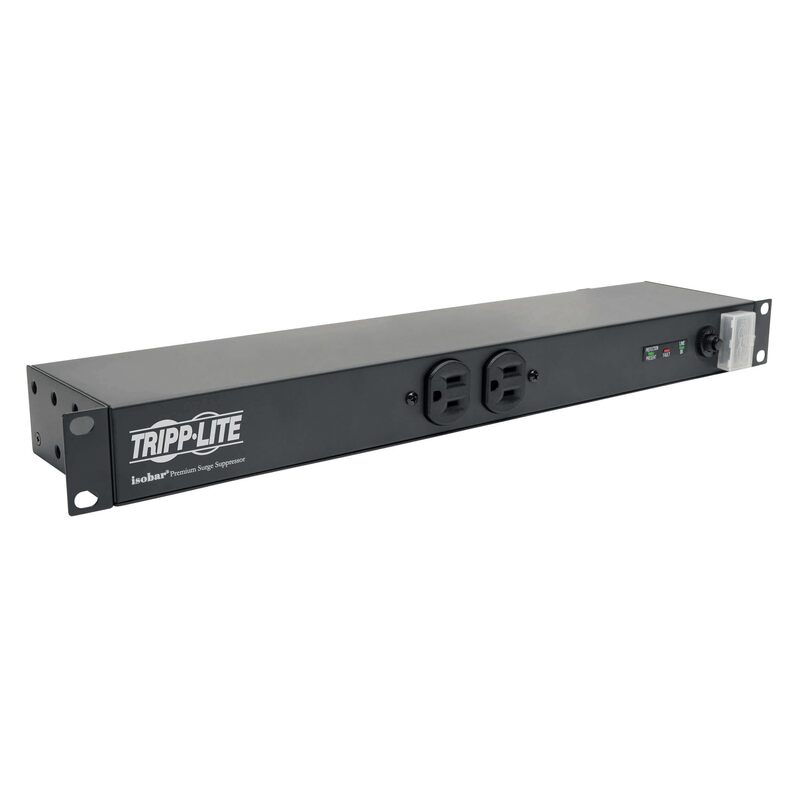

Tripp Lite 1U Rackmount Power Strip PDU, 15A 120V, 15ft Cord
Customize
This Tripp Lite family of 1U rackmount power strips and PDUs delivers reliable 15A/120V AC power distribution in a rugged all-metal cabinet designed for rack, wall or under-counter mounting. Units feature front and rear NEMA 5-15R outlets to support a range of rack equipment and transformer-friendly spacing; detachable mounting hardware enables versatile installation in EIA-standard 19 in. racks or alternative mounting locations. Each unit includes a lighted on/off switch with snap-in switch guard, a resettable 15A circuit breaker for overload protection and a long 15 ft power cord with NEMA 5-15P plug (straight or right-angle variants available). Models in the family range from basic rackmount PDUs to surge-protected suppressors offering joule-rated surge suppression and EMI/RFI noise filtering; product packages include mounting hardware, instruction manual and are covered by a limited lifetime warranty.
- RELIABLE PRODUCT FULLY BACKED AND SUPPORTED: This product is covered by a Lifetime Limited Manufacturer's Warranty and a $25,000 Connected Equipment Insurance. It is also supported by Tripp Lite's expert technical support team over phone, web and email.
- VERSATILE INSTALLATION: Mounts in 1U rackmount standard 19 inch 2-post and 4-post rack. Also mounts on wall, workbench or under a counter with moveable rack ears. Ready for toolless 0U vertical installation with optional PDUSIDEBRKT (sold separately).
- ADVANCED FEATURES: Lighted on/off switch with locking covers and diagnostic LEDs confirm power, protection & line fault status at a glance. Long 15 foot (4.6 m) power cord with 15A plug & sturdy metal housing are designed for enhanced operation.
- HIGH JOULE RATING & PREMIUM POWER PROTECTION (20A): Features 3840 joule of network-grade surge protection. An 15A resettable circuit breaker trips in the event of an overload. Two exclusive ISOBAR filter banks limits up to 80 dB of EMI/RFI line noise.
- RACKMOUNT ISOBAR SURGE PROTECTOR: Rack-mount surge strip helps protect Audio/Video, IT hardware, and other electronics from dangerous surges, spikes & line noise. Features 12 15A outlets in exclusive isolated filter banks, 2 front and 10 rear.
Specifications:
| Materials & Construction | |
| Outer Material | Metal |
| Product Details | |
| Amperage | 15.0 |

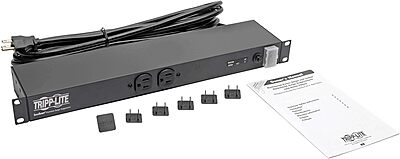

| Includes | 15 Ft Ac Power Cord; Instruction Manual; Light Switch With Cover; Mounting Flange |
| Lpwrsmaximumcurrentsurge (a) | 96000 |
| Model | Isobar Surge Protector Rackmount Metal 12 Outlet 15' Cord 1u rm |
| Number Of Outlets | 12 |
| Special Feature | Surge Protection |
| Standards | Ansi C62.41; Ieee 587; Ieee 587 Category A Specifications; Ieee 587 Category B Specifications; Ul1449 3rd Edition |
| Surge Suppression | Yes |
| Warranty | Limited Lifetime |
| Sizing & Dimensions | |
| Weight | 5.88 pounds |
| Technical Specifications | |
| Agency approvals | UL1449/1283/cUL |
| Input cord | 15 ft |
| Isolated filter banks | 2 |
| Output volt amp capacity (amps) | 15 |
| Overload protection | 15-amp circuit breaker |
| Switches/LE Ds | Lighted On/Off power switch; Circuit breaker reset button; 3 diagnostic LEDs |
