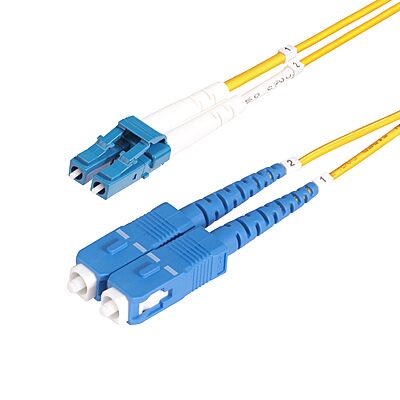

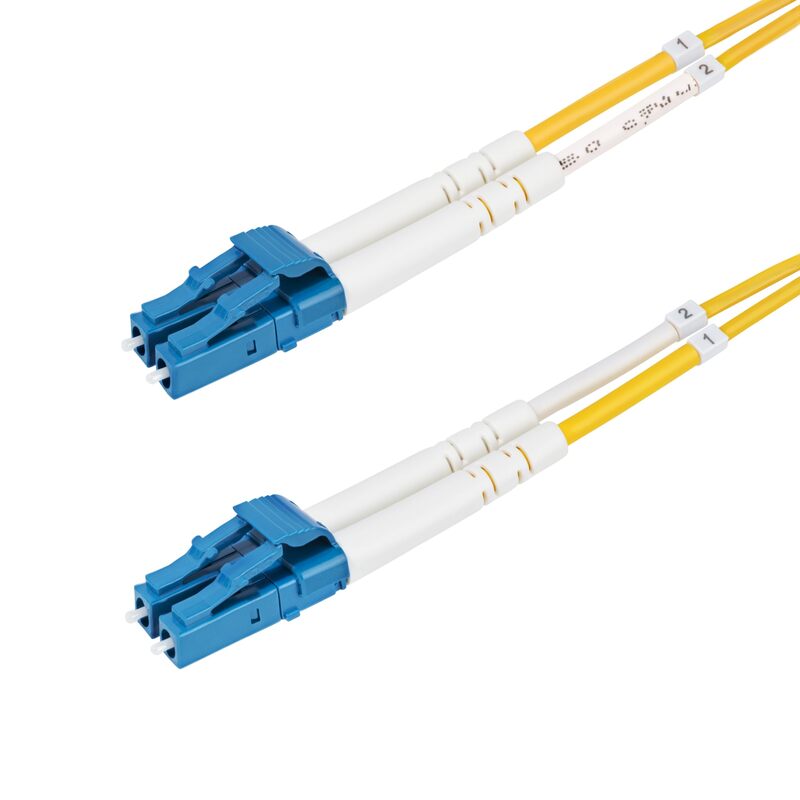

StarTech.com OS2 Single Mode Duplex Fiber Optic Patch Cable, 9/125, 100G, LSZH

These StarTech.com OS2 single-mode duplex fiber optic patch cables are designed for high-performance 10G–100G networks and data center, server and switch connections. Available with common connector options (LC/LC and LC/SC), the cables combine bend-insensitive fiber construction and molded strain reliefs to maintain low attenuation through micro and macro bends. They support Coarse Wavelength Division Multiplexing (CWDM) across an extended 1260-1625nm range and are backward compatible with 9/125 fiber equipment for legacy LAN interoperability. Housed in a Low-Smoke Zero-Halogen (LSZH) flame retardant jacket, the patch cables minimize smoke and toxic fumes in enclosed environments. Each cable is individually tested for insertion loss and attenuation to meet relevant ITU-T and IEC standards and is backed for life with free lifetime multi-lingual technical assistance.

• SPECS: 1 meter (3.3 foot); OS2 Single Mode; LC/LC (UPC) Duplex; 100Gbps; 9/125um; 1260-1625nm Laser Optimized; Insertion Loss: 0.3dB; Return Loss: 55dB; Cable OD: 2mm; Bend Radius: 10mm (0.39in) loaded/unloaded
• COMPATIBILITY: Single Mode Fiber Patch Cord supports 100G networks; Backward compatible with OS1; High micro-bend resistance facilitates tight bends in complex installations; Ideal for connecting between servers/switches and data center equipment
• SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 0.35dB/km outperforms industry standards
• QUALITY CONSTRUCTION: LC/LC-UPC ends for improved return loss over PC polish; Numbered and color-coded connectors to indicate polarity; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 10mm
• OS2 FIBER CABLE: Single Mode OS2 Fiber Cable is immune to EMI and optimized for 100Gbps networks; Coarse Wavelength Division Multiplexing (CWDM) enables extended 1260-1625nm wavelength support for greater channel isolation over long distances
