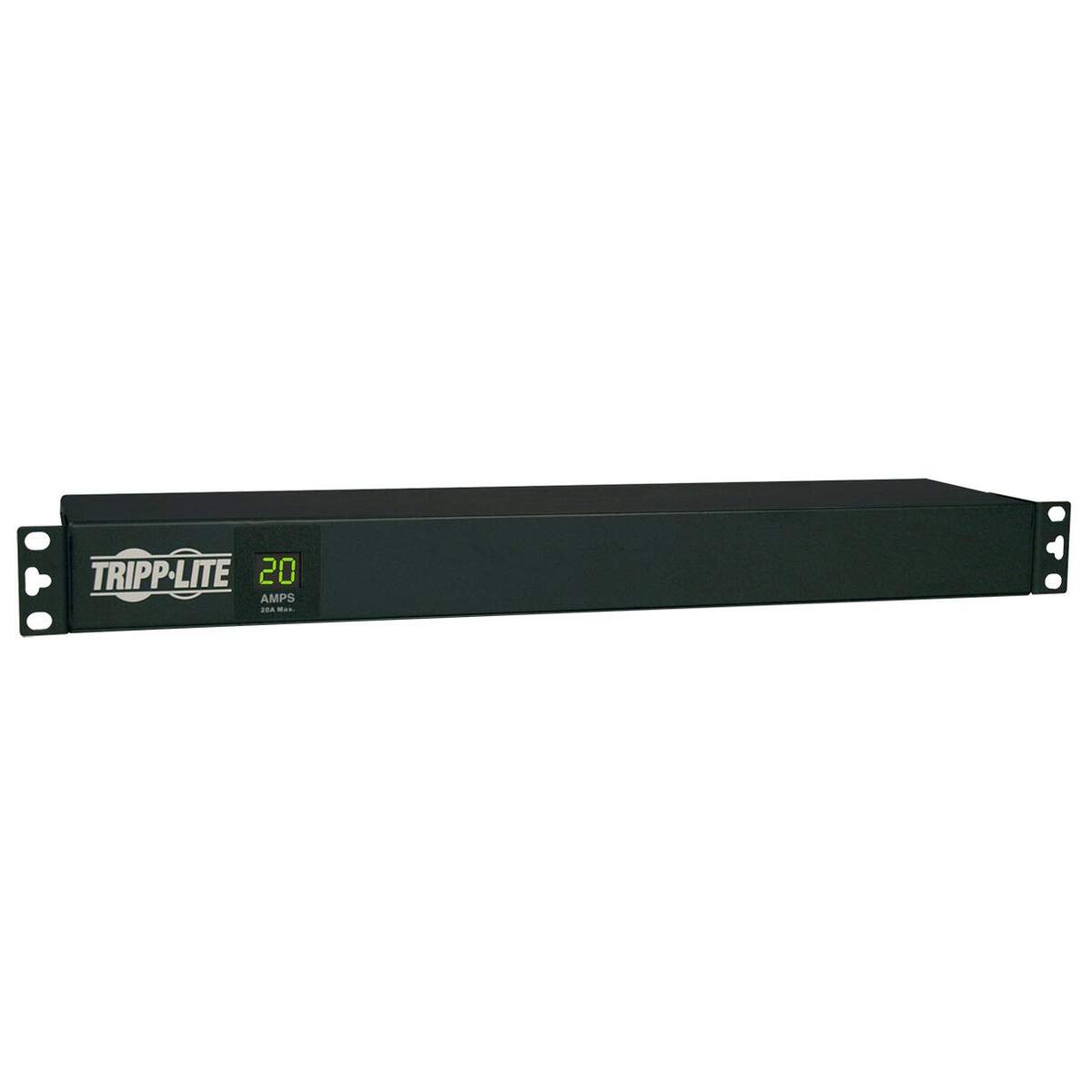

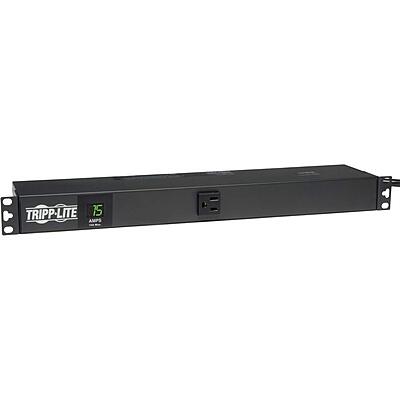

Tripp Lite Metered 1U Rack-Mount PDU
Customize
Tripp Lite metered 1U rack-mount PDU provides real-time local reporting of output current via a built-in digital current meter, enabling visual monitoring of load levels to help prevent circuit overloads. Designed for reliable rack-mount multi-outlet power distribution from UPS, generator or mains input, it features rugged all-metal construction and a 15 ft cord for flexible installation in rack enclosures and network closets. The unit supports switch-free operation to avoid accidental shutdowns of connected equipment and includes mounting accessories for secure 1U rack installation. Backed by a 2-year warranty, this metered PDU is intended for indoor rack and network environments where continuous load monitoring and dependable power distribution are required.
- 20a single phase 120V Metered power distribution unit/ PDU (agency de-rated to 16a continuous)
- Built-in 2 digit Visual meter continuously reports PDU load level in Amps
- Attached NEMA L5-20P 20a 120V input Plug with 15 ft./ 4.5m line cord
- 12 NEMA 5-15/20R outlets
- 2-Year Limited Warranty
- 1.92kW Single-Phase 20A Metered 120V Horizontal Rack-Mount Power Distribution Unit
- 12 NEMA 5-15/20R outlets; 15 ft. cord with NEMA 5-20P / L5-20P input
- Reversible housing; 4.5 in. / 11.4cm depth
- Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
Specifications:
| Materials & Construction | |
| Outer Material | Metal |
| Product Details | |
| Amperage | 20.0 |
| Model Number | PDUMH20 |
| Nema Configuration | 5-15/20R |
| Recommended Environment | Indoor |
| Special Feature | Detachable |
| Total Power Outlets | 12 |
| Voltage | 120 Volts |
| Sizing & Dimensions | |
| Weight | 5.9 pounds |
| Technical Specifications | |
| Amperage | 20.0 |
| Item model number | PDUMH20 |
| Total Power Outlets | 12 |
| Voltage | 120 Volts |
| Warranty | 2-Year Limited Warranty |
