StarTech.com Mini DisplayPort to HDMI Converter Cable
Customize

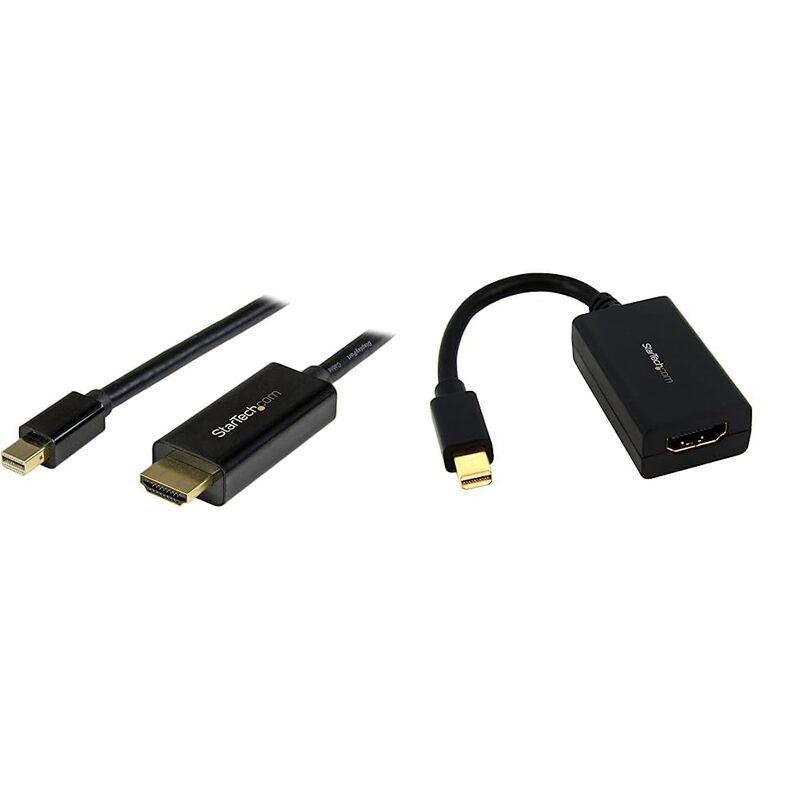

The StarTech.com Mini DisplayPort to HDMI converter cable provides a compact, passive solution to connect Mini DP (including Thunderbolt 1 & 2) devices to HDMI monitors, TVs or projectors. The cable delivers Ultra HD 4K at 30Hz (backward compatible with 1080p/720p) and supports multi-channel (7.1) audio, HDCP 1.4 and plug-and-play operation without an external power source. Its single-cable design reduces clutter and enables tidy installations for portable use with MacBook, Microsoft Surface, Ultrabook and other mDP hosts, as well as for desktops, NUCs and docking stations. The product family includes versions with integrated converter circuitry and different cable lengths/finishes to suit installation needs, and is backed by a 3-year limited warranty and free lifetime technical support from StarTech.com.
- Product 2: PERFORMANCE: mDP 1.2 to HDMI 1.4 adapter connects your mDP host to an HDMI display - 1920x1200/1080p 60Hz Video, 7.1ch Audio, HDCP 1.4, DPCP, 5" (13cm) attached cable - Upgraded version available with 12"/30cm attached cable for extended reach (MDP2HDEC)
- Product 2: HOST COMPATIBILITY: Passive Mini DP to HDMI display adapter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- Product 2: INCREASE PRODUCTIVITY: Mini DisplayPort to HDMI adapter connects an HDMI monitor, TV or projector, or add a second display to your workstation - Compact, small form factor design makes it easy to carry between home office and office
- Product 2: RELIABLE CONNECTION: MiniDisplayPort to HDMI video converter is designed with gold-plated connectors to ensure enhanced signal quality - Tested with HDMI cables up to 50ft (15m)
Specifications:
| Product Details | |
| Compatible Devices | Projector, Laptop, Television, Desktop |
| Connector On First End Details | 1 X 20-Pin Mini Displayport 1.2 Digital Audio/Video - Male |
| Connector On Second End Details | 1 X 19-Pin Hdmi 1.4 Digital Audio/Video - Male |
| Connector Type On First End | Mini Displayport 1.2 Digital Audio/Video - Male |
| Connector Type On Second End | Hdmi 1.4 Digital Audio/Video - Male |
| Product Line | Startech.com |
| Sizing & Dimensions | |
| Weight | 1.0000 pounds |
| Technical Specifications | |
| Audio Support | 7.1ch Audio |
| DPCP | DPCP supported |
| HDCP | HDCP 1.4 |
| Supported Resolution Details | Supports Ultra HD (UHD) 4K 30Hz (3840x2160) or 4096x2160 @ 24Hz; Backward compatible with 1080p |
