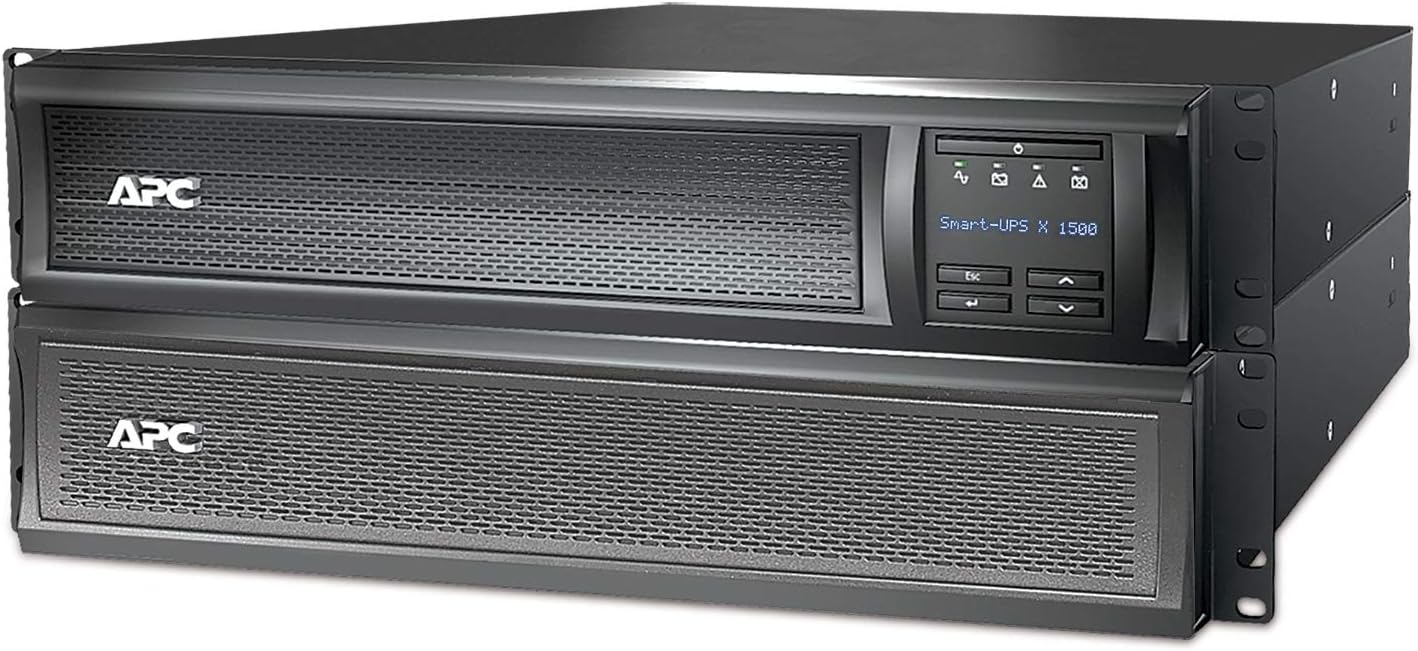

APC SMX Series Smart-UPS Network UPS & External Battery Pack
Customize

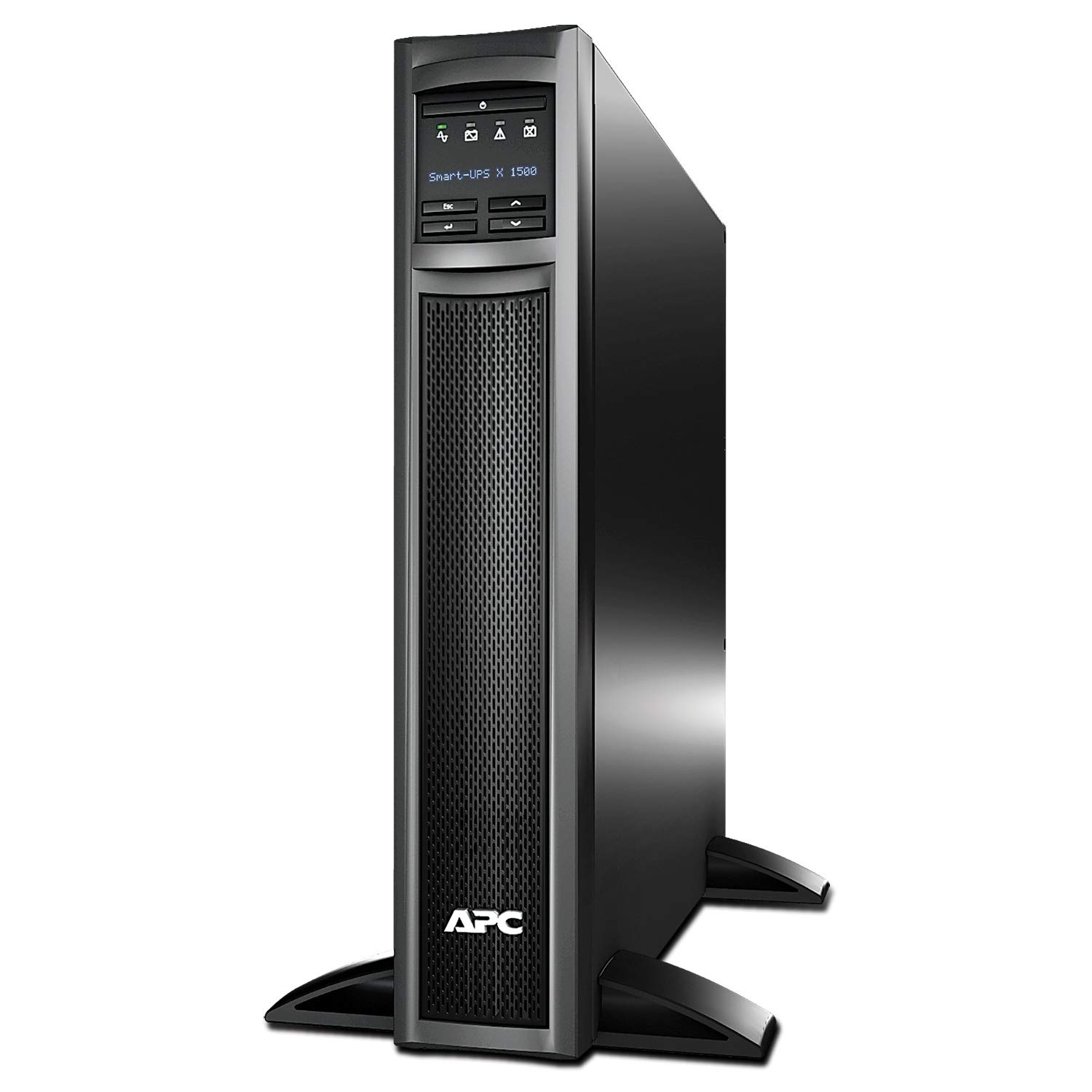

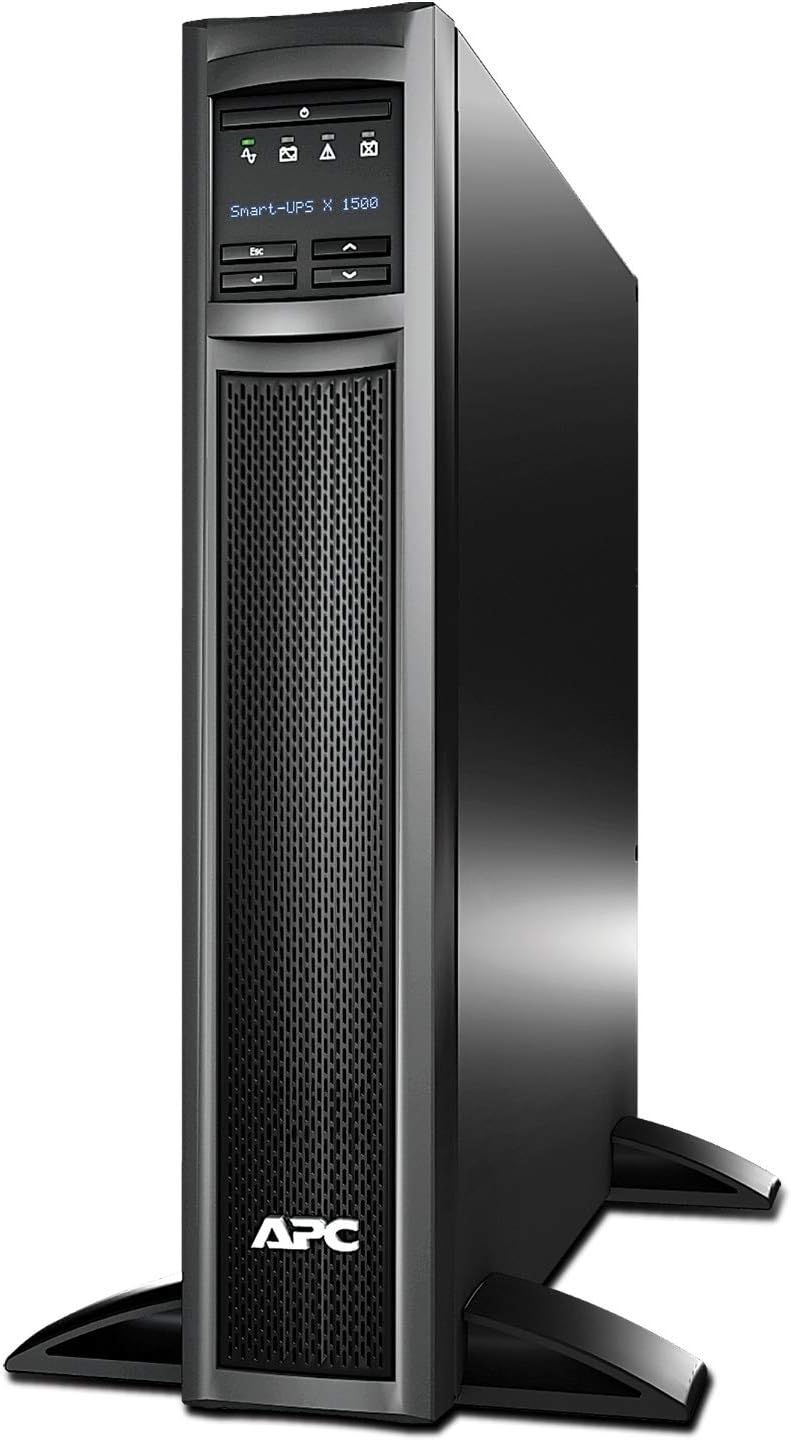

The APC SMX Series Smart-UPS product family includes network-capable line-interactive UPS units and compatible external battery packs designed for servers, storage, networking and commercial applications. Units are rack/tower convertible and deliver pure sine wave output compatible with active power factor corrected servers and sensitive electronics. Remote monitoring and management are available via SmartConnect, Network Management Card or EcoStruxure IT; some models include a preinstalled Network Management Card while others support optional NMC installation. Key features across the family include Automatic Voltage Regulation (AVR) to correct voltage fluctuations, Green mode for improved operating efficiency, an intuitive LCD interface, predictive battery replacement information, Energy Meter with kWh monitoring, and an Emergency Power Off (EPO) switch. Extended runtime is achieved with compatible external battery packs (SMX48RMBP2U) that connect to SMX-series UPS units for scalable backup capacity.
- 1500VA / 1200W Pure Sine Wave UPS Battery Backup
- Smart-UPS Extended Run Option: Extended run models accept external battery packs (model SMX48RMBP2U, sold separately) for a longer runtime, to power critical servers, security, and comm. systems through prolonged outages
- Includes an installed Network Management card as well as APC SmartConnect. SmartConnect is an easy to use remote monitoring feature (via a secure portal) that provides automatic notifications, firmware updates, and advanced support services. For all units purchased and/or registered after August 1, 2023, SmartConnect will be offered as a 6-month free trial

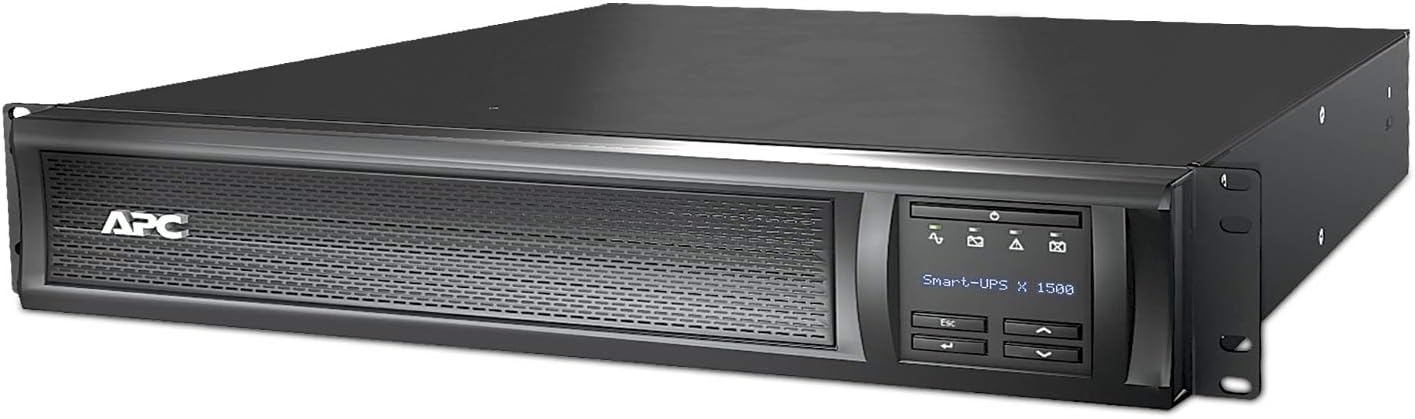

- 2U Rackmount. Rail kit included.

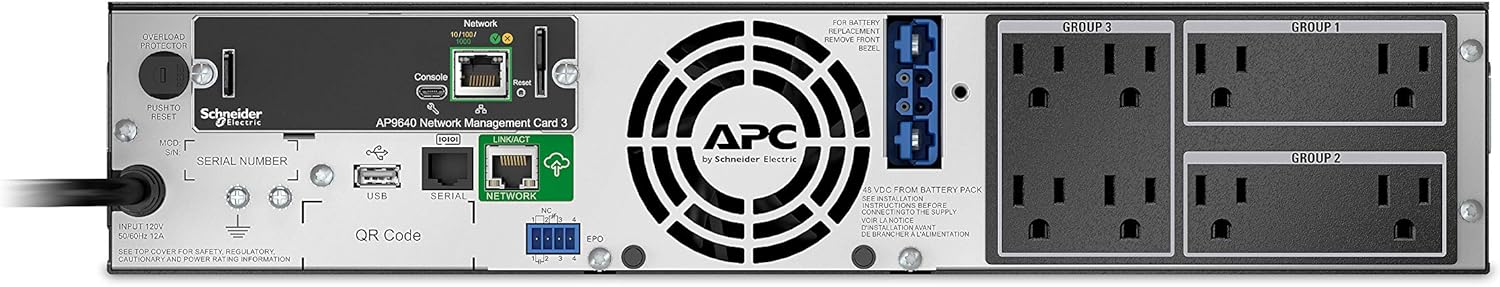

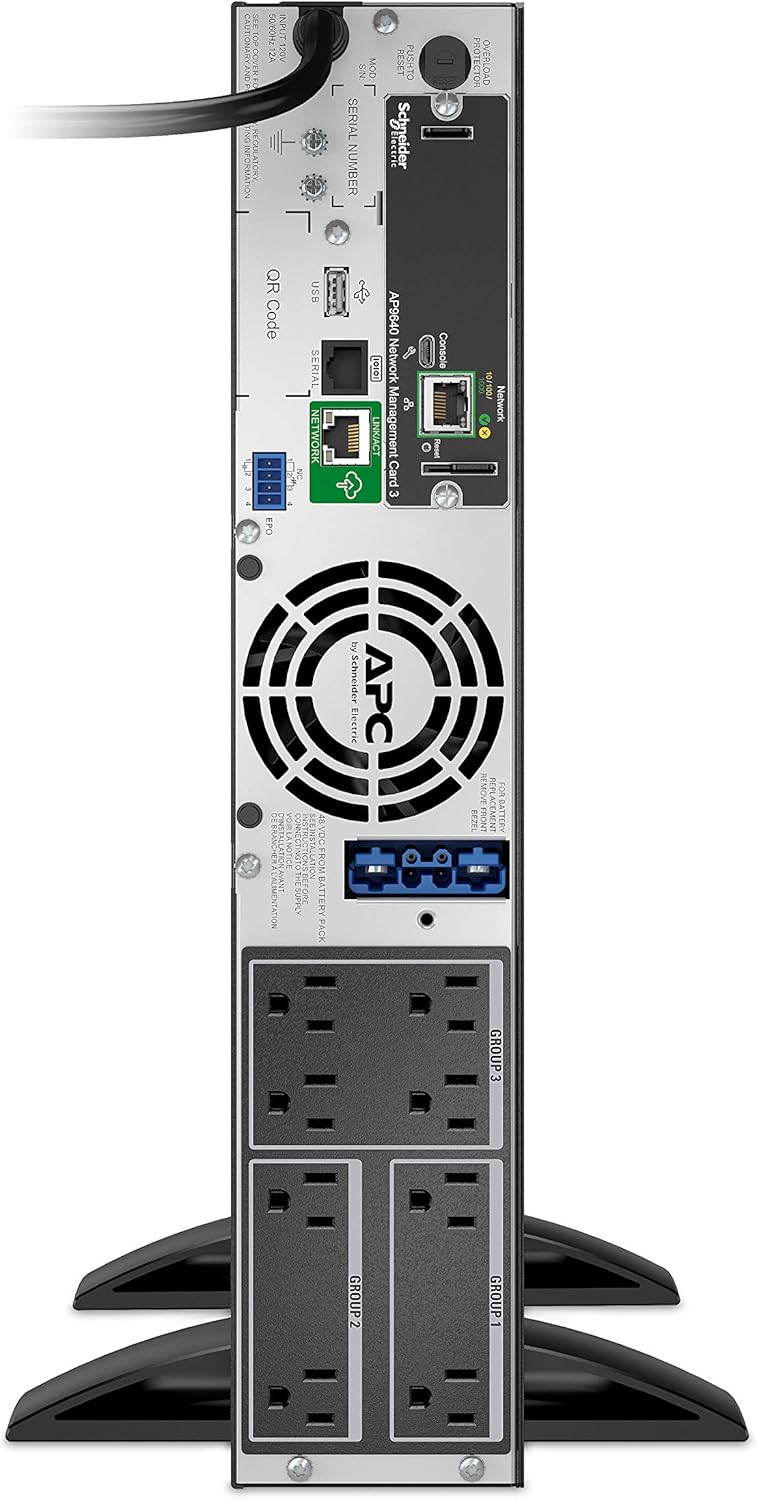

- Input: NEMA 5-15P. Output: NEMA 5-15R (8)
Specifications:
| Materials & Construction | |
| Product Color | Black |
| Product Details | |
| Automatic Voltage Regulation | Yes |
| Batteries | 2 Product Specific batteries required. (included) |
| Battery Cell Composition | Lead Acid |
| Battery Run Time | 5 Min |
| Charge Time (Approx) | 3 hr |
| Frequency Response | 50hz To 20khz |
| Load Capacity (Va) | 1440 |
| Load Capacity (Watt) | 1350 |
| Model | Smx1500rm2ucnc |
| Number Of Surge Only Outlets | 8 |
| Rack Mountable | Yes |
| Surge Rating | 600 Joule |
| Ups Battery Type | Lead-Acid |
| Ups Type | Line Interactive |
| Vertical Rack Space | 2u |
| Voltage (Input) | 120 V |
| Voltage (Output) | 120 V |
| Sizing & Dimensions | |
| Height | 9.75 inches |
| Length | 25 inches |
| Product Dimensions | 25 x 23.4 x 9.75 inches |
| Size | 25 x 23.4 x 9.75 inches |
| Weight | 66.1 pounds |
| Width | 23.4 inches |
| Technical Specifications | |
| Energy Star URL | Https://Www.energystar.gov/Products/Uninterruptible_power_supplies |
| Frequency Response | 50hz To 20khz |
