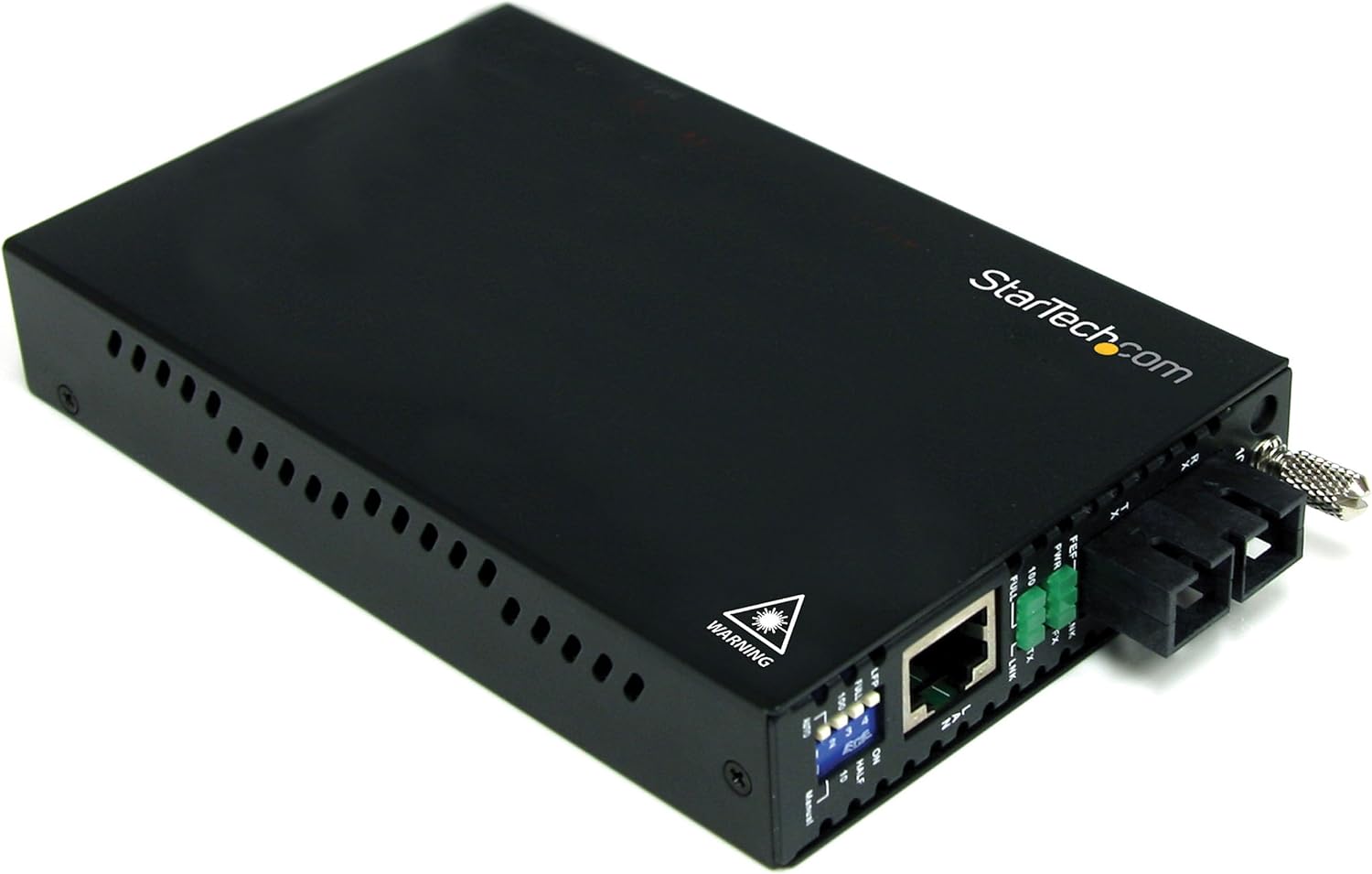

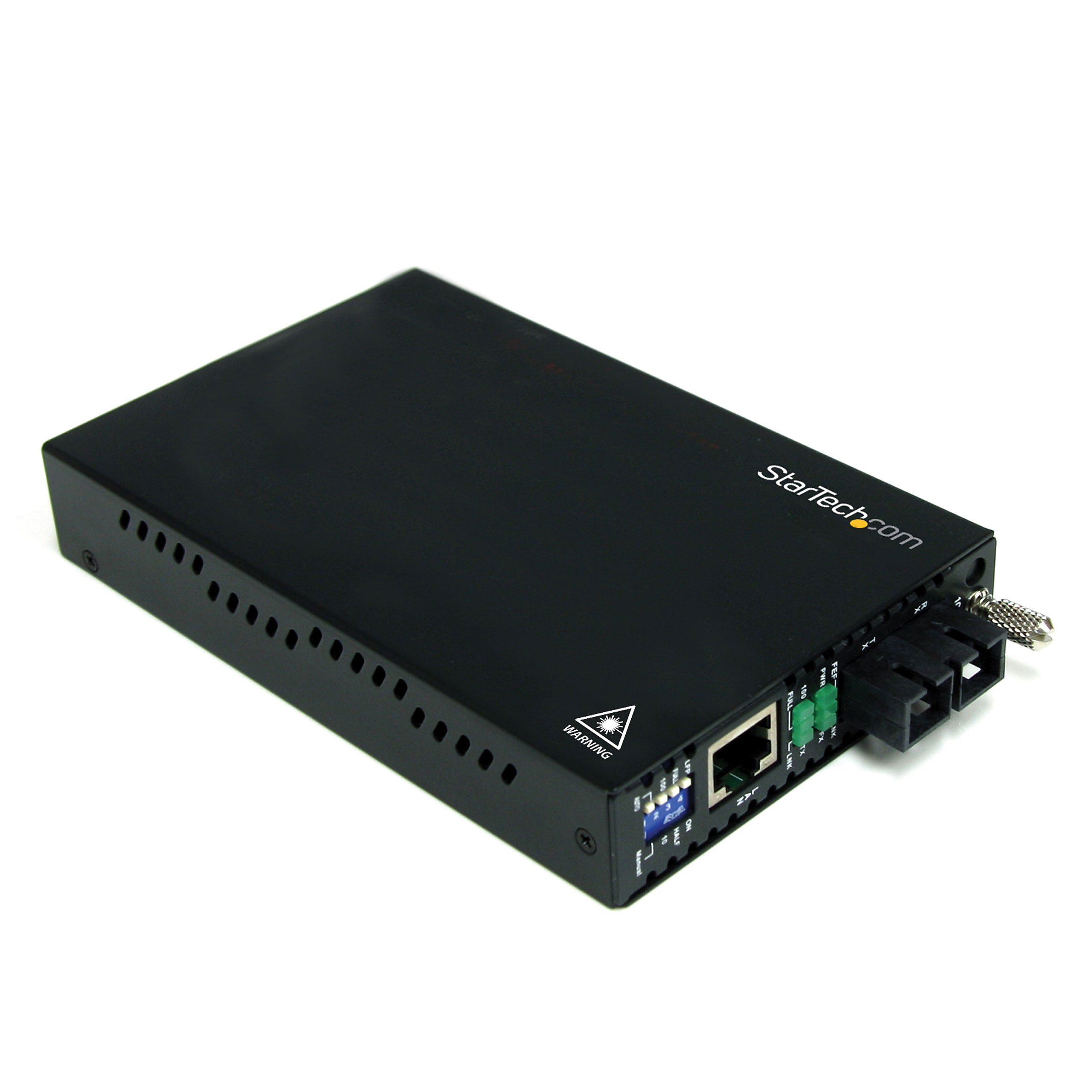

StarTech.com Singlemode SC Fiber Media Converter
Customize

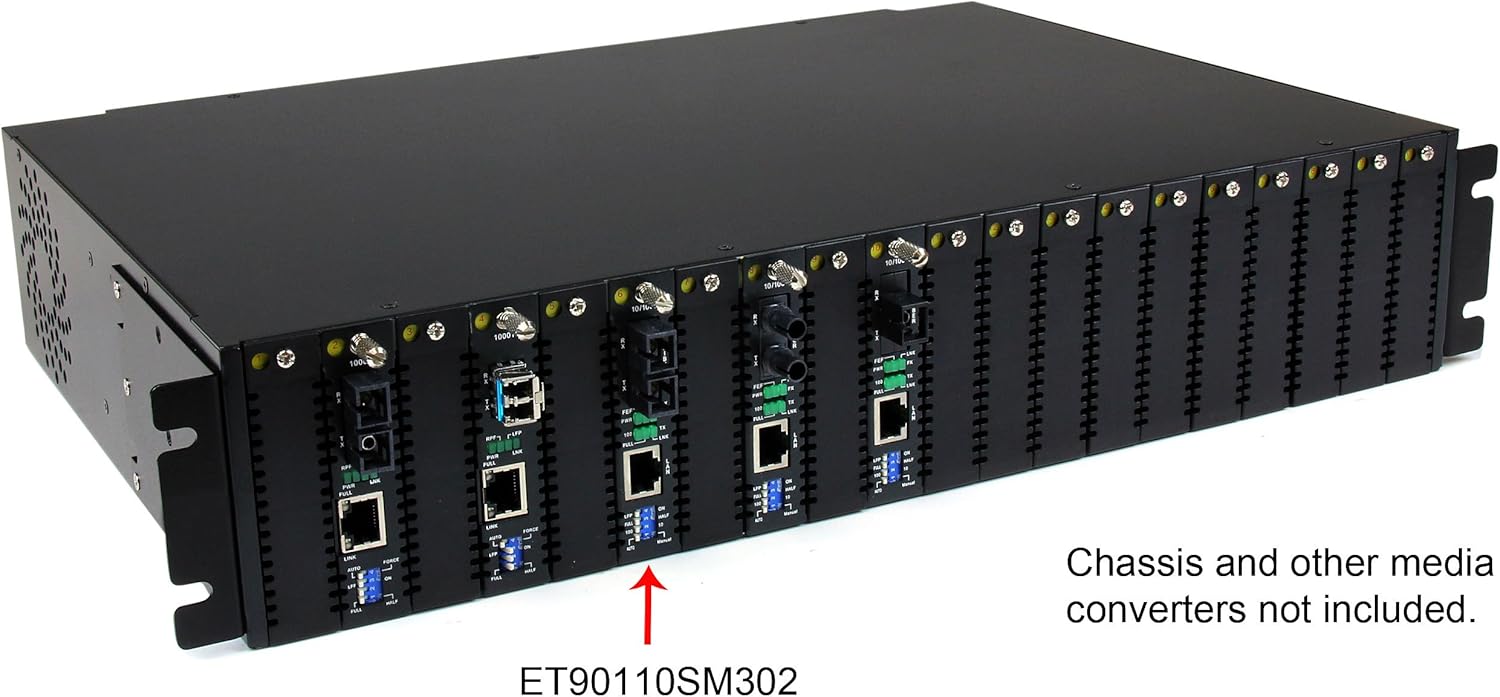

StarTech.com singlemode SC fiber media converters offer reliable Ethernet-to-fiber conversion for extending network connections over single-mode SC fiber at 1310 nm. The product family includes models that support 10/100Base-TX with 100Base-FX fiber links and models that support Gigabit connectivity on 1000BASE-LX networks, providing flexible options for different network speeds and distances. Devices are engineered for durability with compact housings and options for standalone desktop use, rack installation or wall mounting; AC adapters and mounting accessories are included. Common benefits include simple plug-and-play installation with minimal configuration, options for chassis or standalone operation, and enterprise-grade support — each model is backed by a StarTech.com 2-year warranty and free lifetime technical support. Environmental compliance: RoHS, REACH and WEEE.
- Easy to use and install
- Supports full or half-duplex operation
- Maximum Fiber Cable length of 30 km

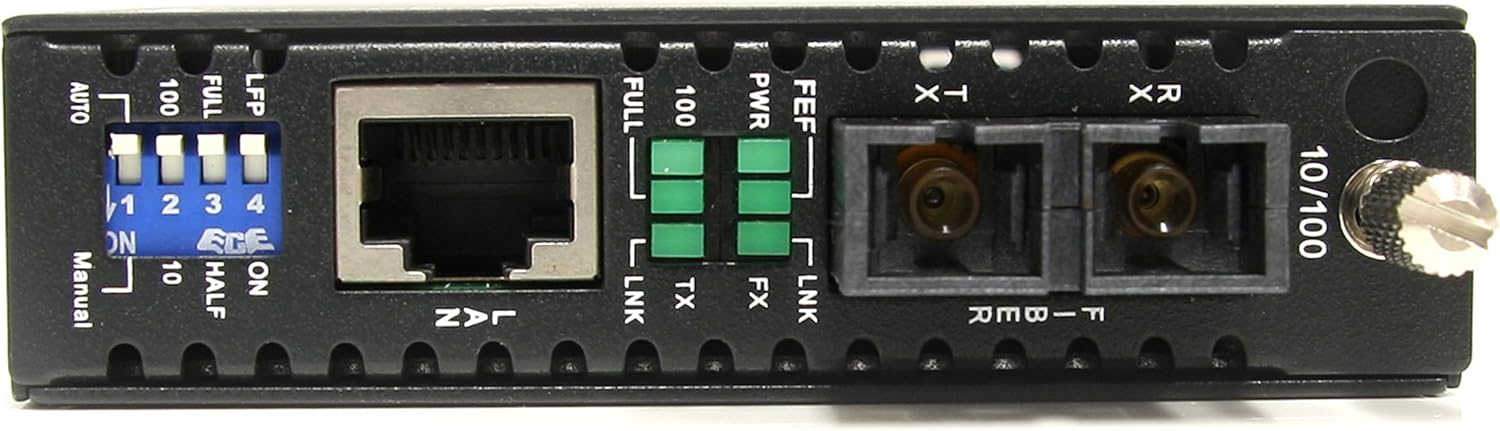

- Advanced features include Link-loss forwarding, remote status monitoring, two frame lengths
- Cost-effective way to extend/bridge networks using fiber cabling
Specifications:
| Materials & Construction | |
| Outer Material | Alloy Steel |
| Product Details | |
| Ethernet Technology | Fast Ethernet |
| Fiber Mode Supported | Single-Mode |
| Fiber Optic Cable Wavelength | 0.00131 |
| Model | 10/100 Mbps Single Mode Fiber Media Converter Sc - 18.6 Miles/30km Over Single Mode Sc Fiber (Et90110sm302) |
| Network Media Type | Optical Fiber |
| Network Technology | 10/100base-Tx; 100base-fx |
| Usb | No |
| Sizing & Dimensions | |
| Height | 2.95 inches |
| Length | 9.06 inches |
| Product Dimensions | 9.06 x 7.28 x 2.95 inches |
| Size | 9.06 x 7.28 x 2.95 inches |
| Weight | 13.8 ounces |
| Width | 7.28 inches |
| Technical Specifications | |
| Number of Channels | 1 |
| Number of Pins | 26 |
| Upper Temperature Rating | 70 Degrees Celsius |
| Voltage | 12 Volts |
