ERGODYNE Squids Power Tool Bracket
Customize

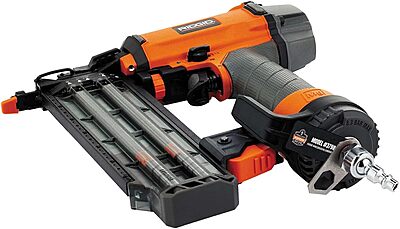

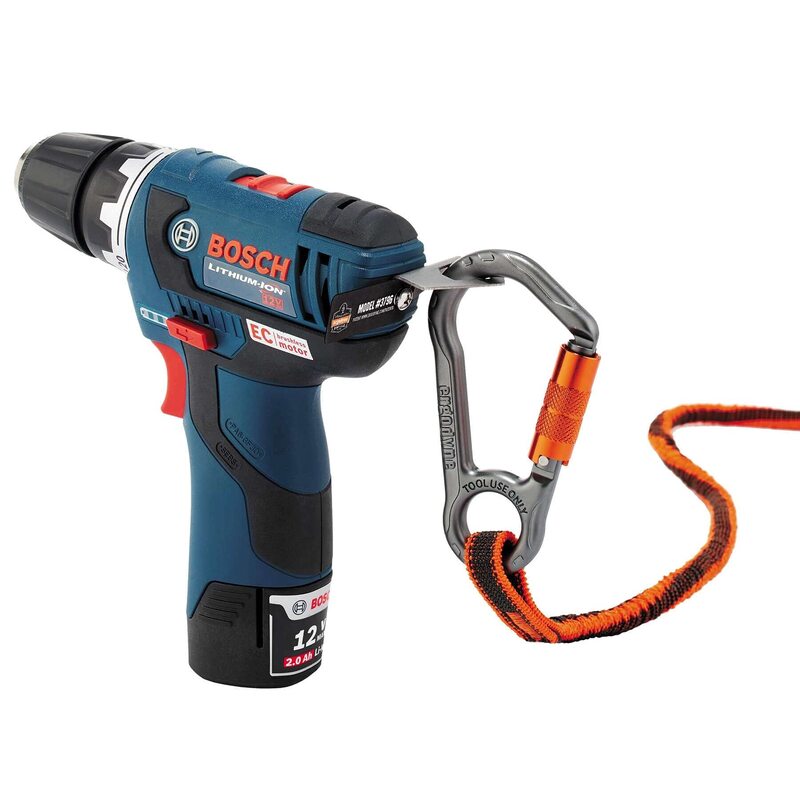

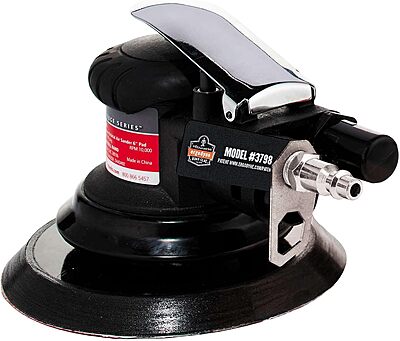

The ERGODYNE Squids family of power tool brackets provides a reliable built-in connection point to tether drills, impact drivers, grinders, pneumatic tools and other power tools and devices with compatible screw ports or couplers. Made from corrosion-resistant stainless steel, each bracket features a connection point and ships with mounting fasteners, connection point hardware or a product label depending on the model. These brackets are designed to retrofit tools that lack attachment points, accommodate a range of metric fasteners and coupler sizes, and integrate tool tethering into fall protection plans to reduce dropped-object hazards. Use Squids power tool brackets to keep tools securely attached on the job and help meet ANSI/ISEA 121-2018 tethering guidance.
- Approved to the ANSI/ISEA 121-2018 standard
- Stainless-steel bracket with built-in connection point for tool tethering is corrosion-resistant to withstand weathering
- Patent-pending tool bracket design discretely fastens to open screw port on cordless drills/drivers so you barely notice it’s there
- Fasteners include alloy steel M2.5 (8mm length) socket cap head, 2 stainless-steel M3 (8mm and 12mm lengths) Philips pan heads, and 3 stainless steel M4 (8mm, 10mm, 12mm lengths) Philips pan heads
- Ambidextrous design can be flipped to either side of the tool attaching to open screw ports meant for accessory belt clips
- Perfect for smaller, cylindrical 12v. drills and impact drivers or other power tools where traditional retrofit attachments are not compatible

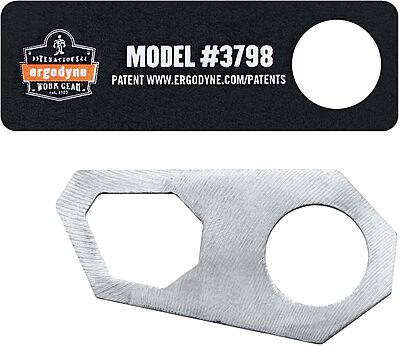

- Set includes 1 bracket connection point, 6 fasteners with locking washers and 2 product labels
Specifications:
| Materials & Construction | |
| Back Material Type | Alloy Steel |
| Finish Type | Stainless Steel |
| Frame Material | Stainless Steel |
| Handle Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Top Material Type | Stainless Steel |
| Product Details | |
| Compliance Standards | Approved To Ansi/Isea 121-2018 Standard |
| For Use With | Small Cylindrical 12 V Drills And Impact Drivers |
| Global Product Type | Tool Hanger Mounting Brackets |
| Included Components | 1 Bracket Attachment |
| Mounting Type | screw port attachment |
| Package Includes | (1) Bracket Connection Point; (6) Fasteners With Locking Washers; (2) Product Labels |
| Special Feature | Discreet Tool Attachment, Corrosion Resistance, Patent-pending design, Ambidextrous Design |
| Sizing & Dimensions | |
| Weight | 0.8 ounces |
| Technical Specifications | |
| Assembly Required | No |
| Maximum Capacity (per fastener) | Up to 3 lbs depending on fastener size (M2.5 = 2.5 lb max; M3/M4 up to 3 lb) |
| Measurement System | Metric (product data includes both metric fasteners and imperial dimensions) |
| Warranty | We stand behind everything we make and guarantee our products to be free of defects in materials and workmanship to the original purchaser for the lifetime of the product. That said, damage, abuse, and/or normal wear are not covered. |
