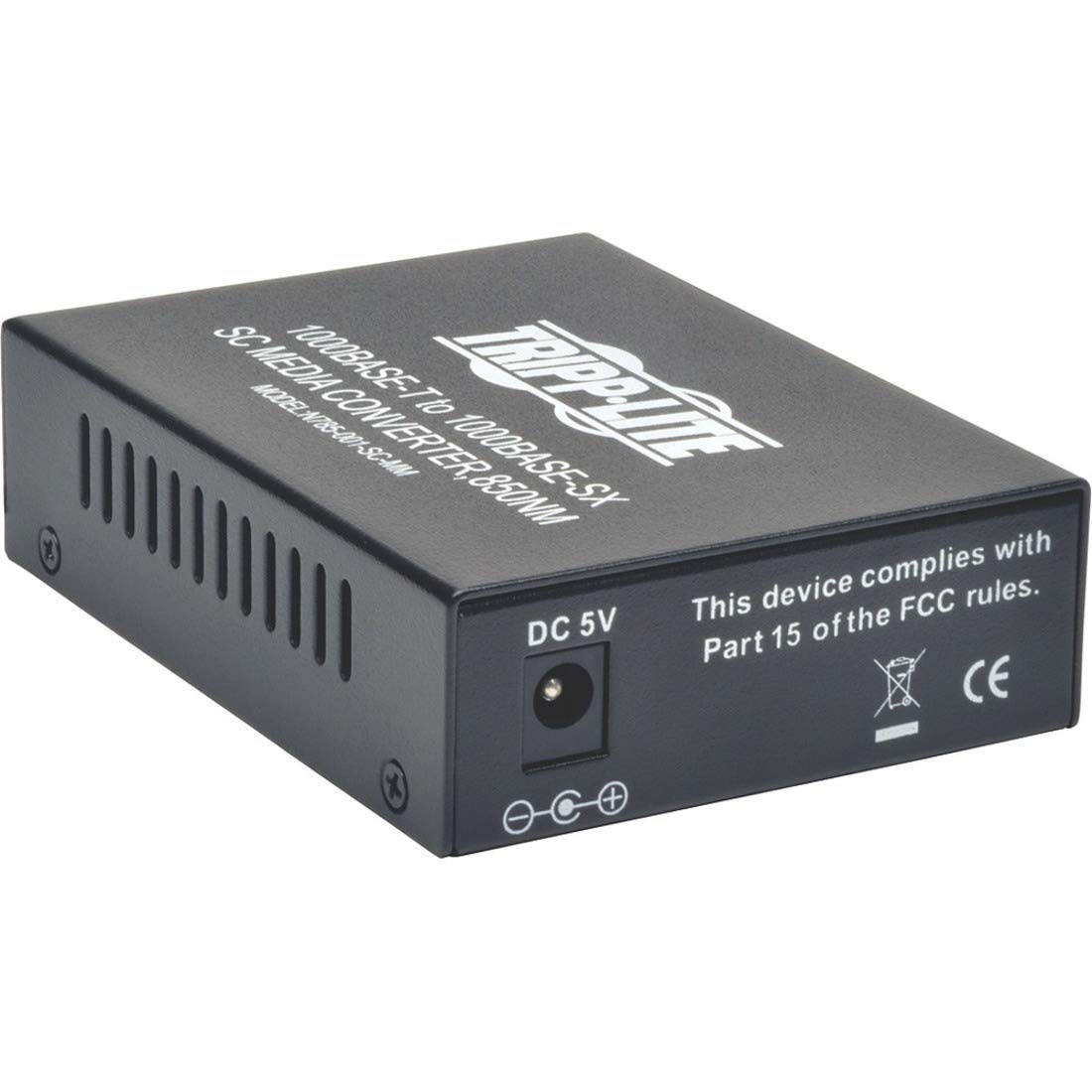

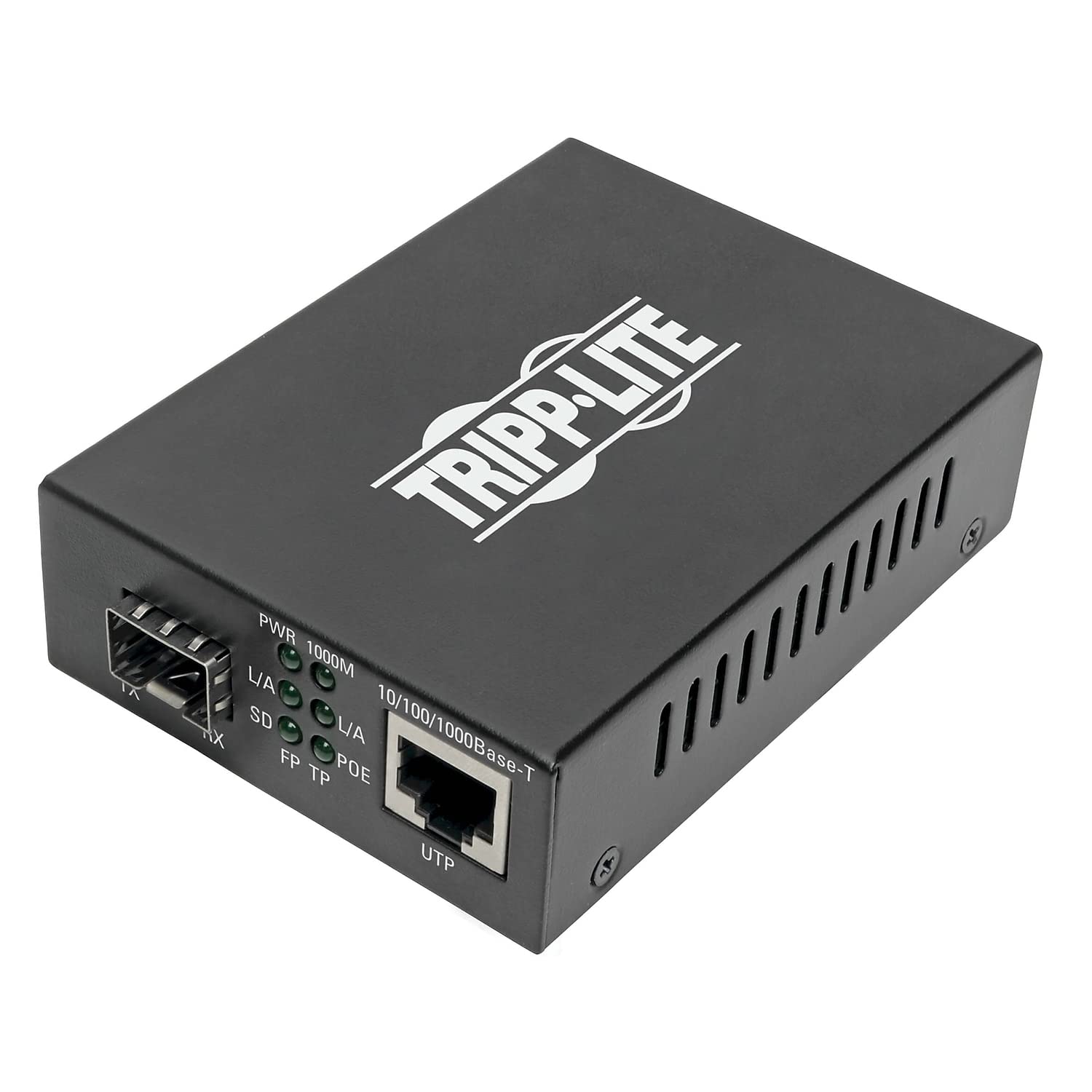

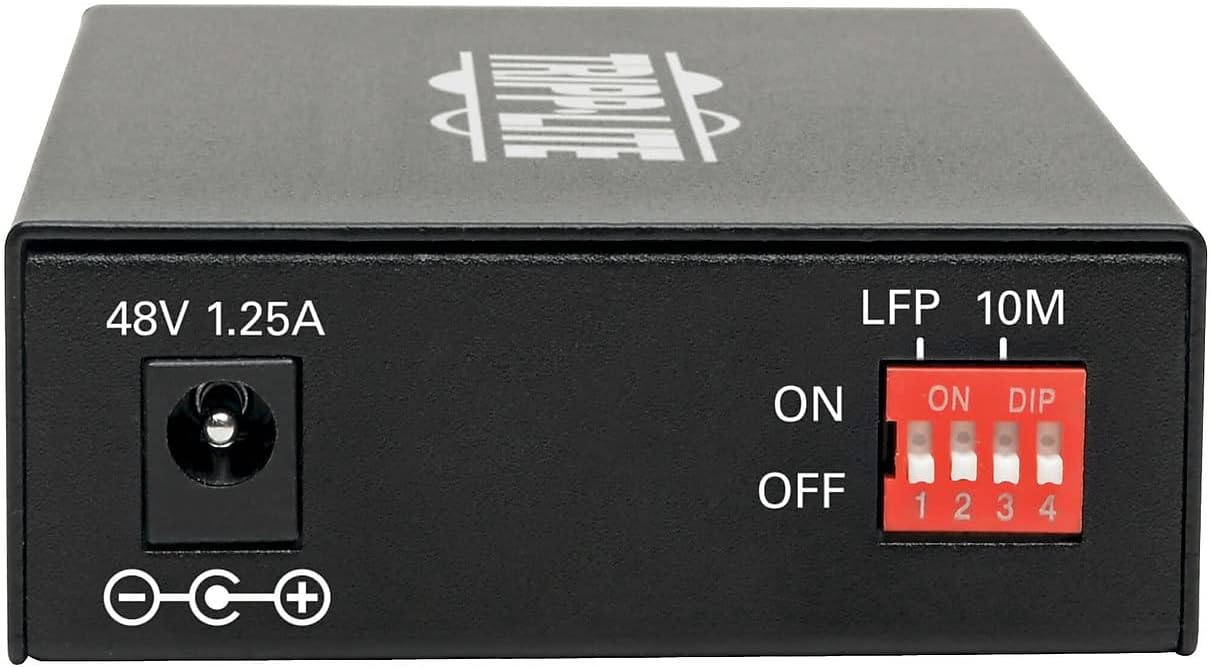

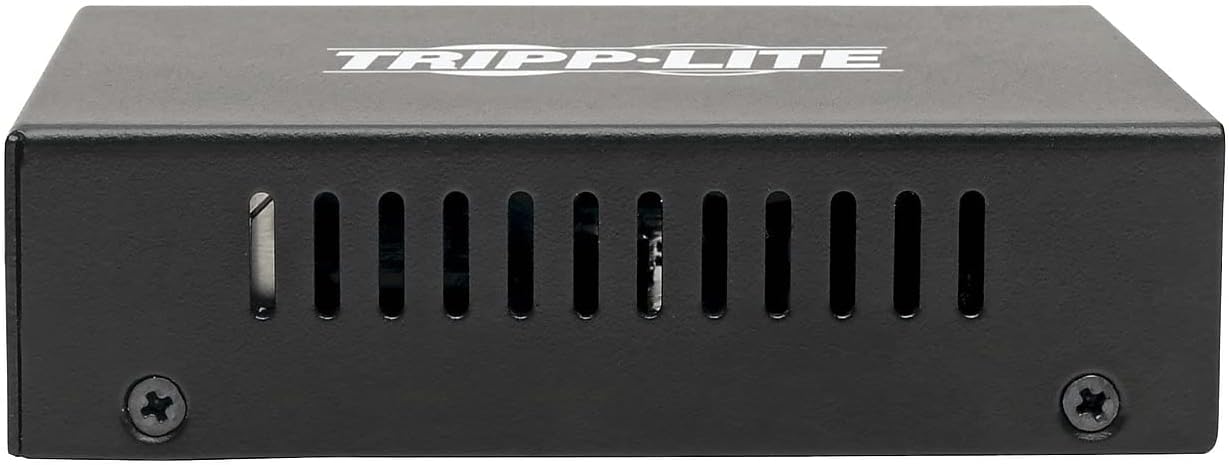

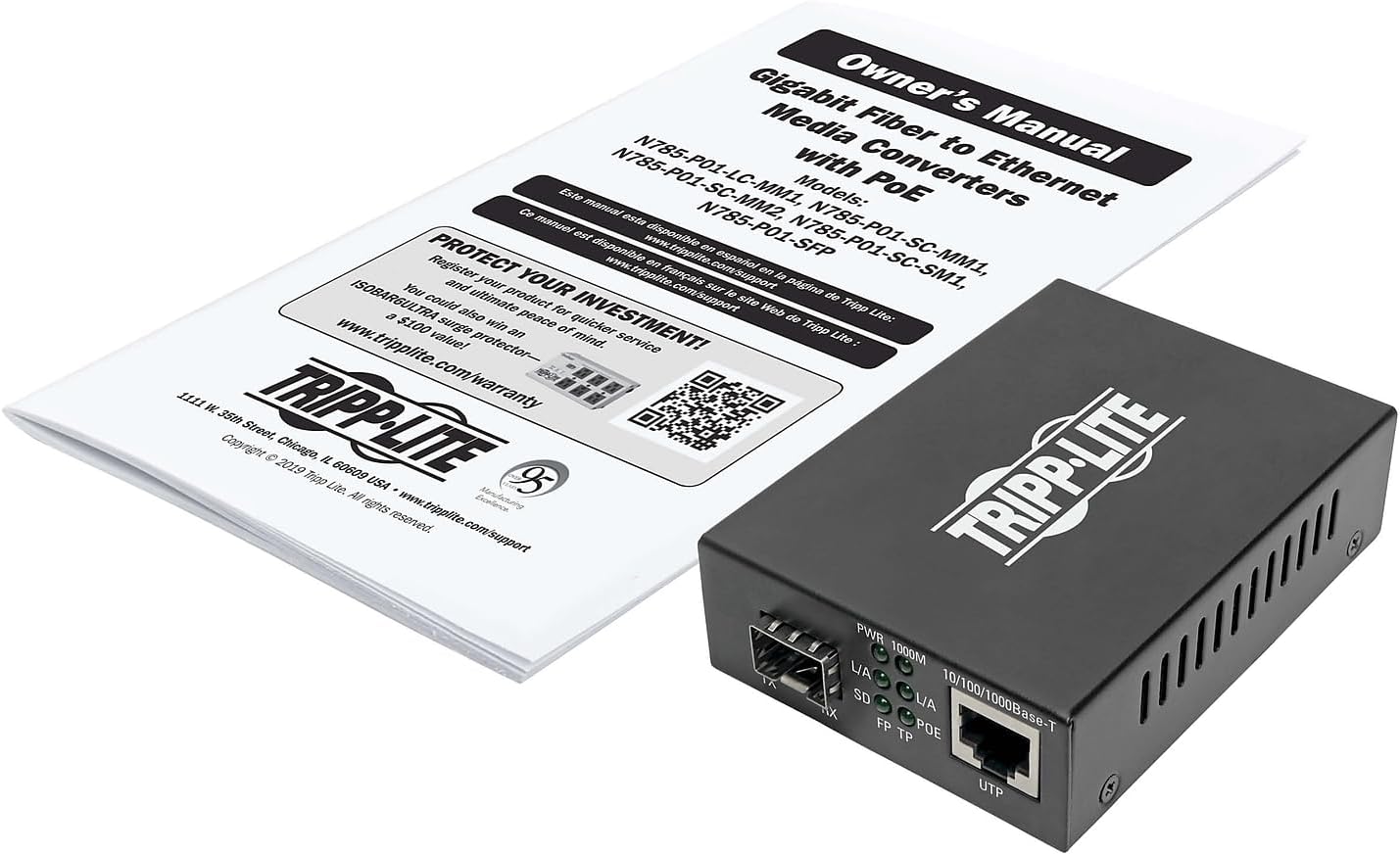

Tripp Lite N785 Series 10/100/1000 media converters convert copper RJ45 Ethernet to fiber optic connections to extend network links beyond copper limitations. The series includes compact converters with LC and SC duplex fiber interfaces and a customizable SFP model, supporting multimode (and with SFP choices, single- or multimode) transceiver options. Common features across the series include auto MDI/MDI-X, automatic speed sensing on the UTP port, half- and full-duplex detection on the fiber port, multiple status LEDs for performance monitoring, and external/small form factor power supplies. Some models support PoE+ to deliver 48 VDC power and data to PoE/PoE+ devices; others interoperate with N785-series non-PoE units and compatible transceivers. Typical use cases include extending Ethernet to remote network devices, linking buildings or floors with fiber runs, and powering remote PoE devices when using PoE-capable models. Manufacturer-backed 2-year limited warranty.
- Extends a Gigabit Ethernet signal up to 550 meters over Multimode Fiber Optic Cable
- Auto detects Full/Half Duplex Transfer Mode
- Up to 550M ( 1800ft ) range
- 6 performance monitoring LEDs
Specifications:
| Product Details |
| Voltage | 5 Volts |
| Sizing & Dimensions |
| Height | 9.1 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 2.2 x 9.1 inches |
| Weight | 6.4 ounces |
| Width | 2.2 inches |
