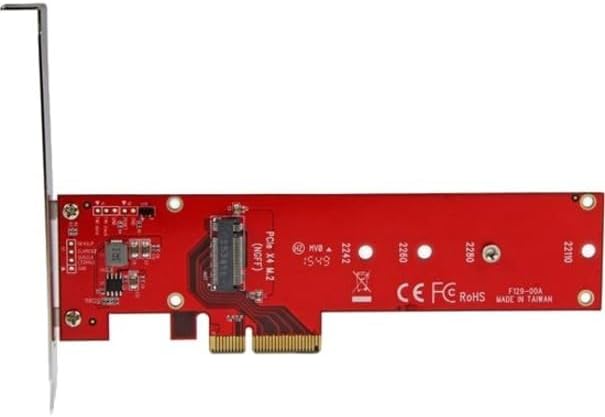

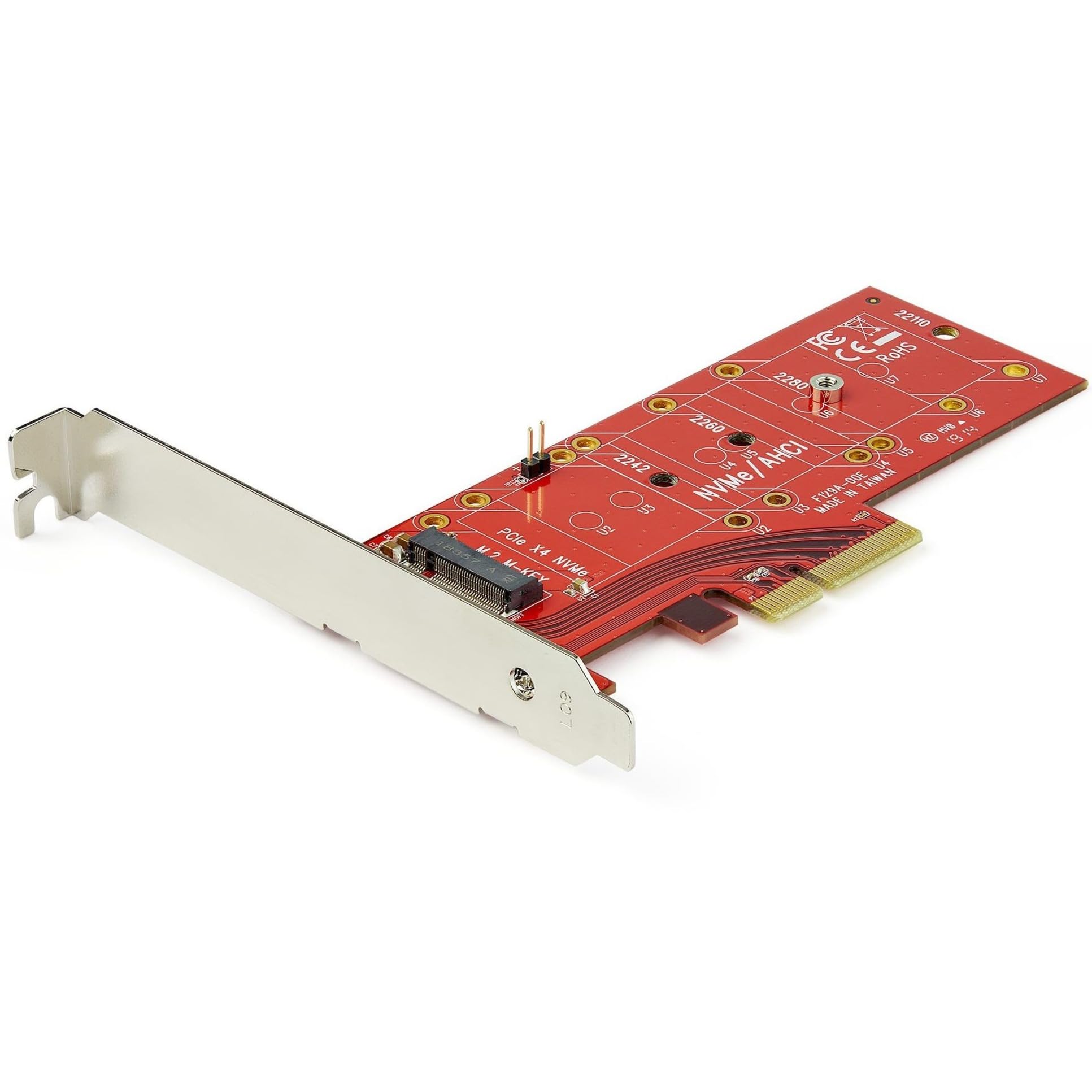

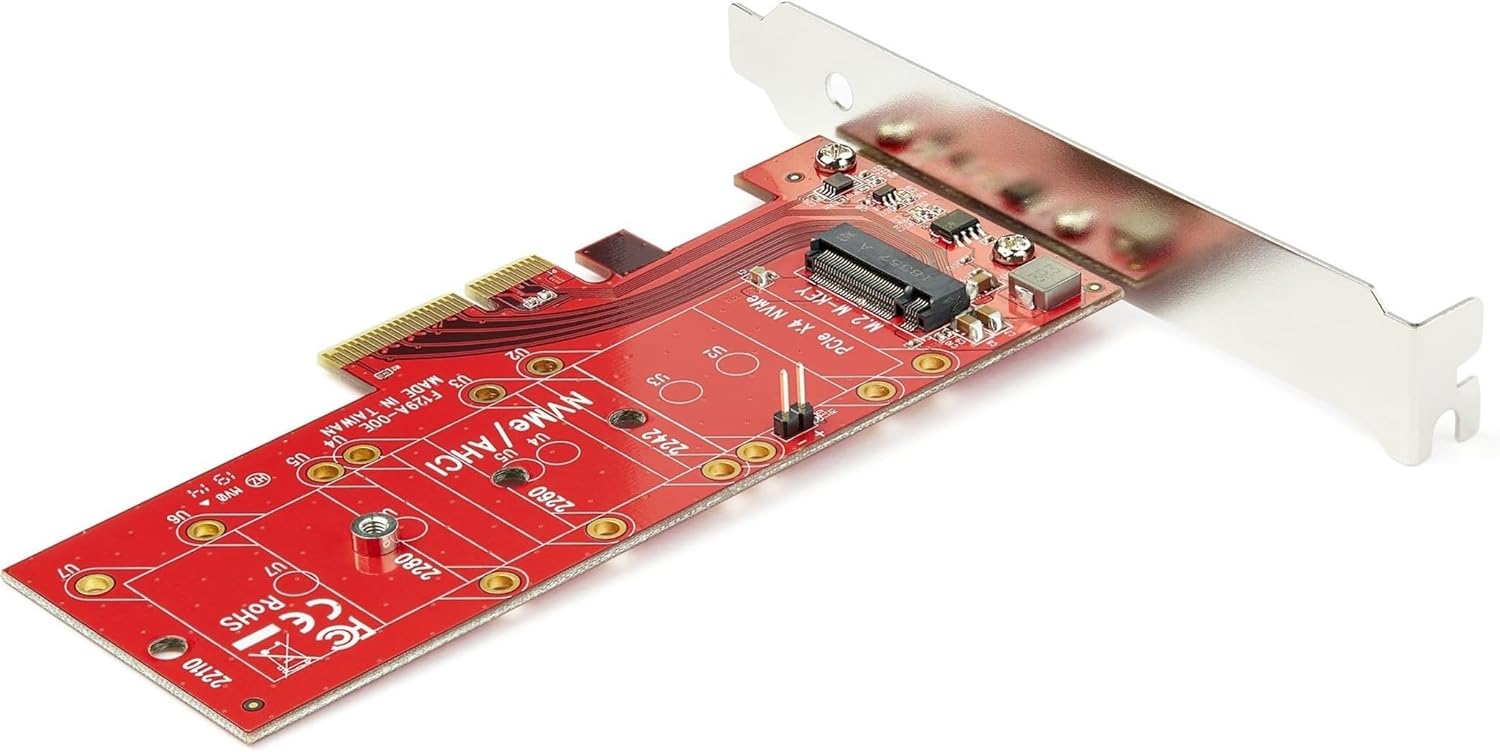

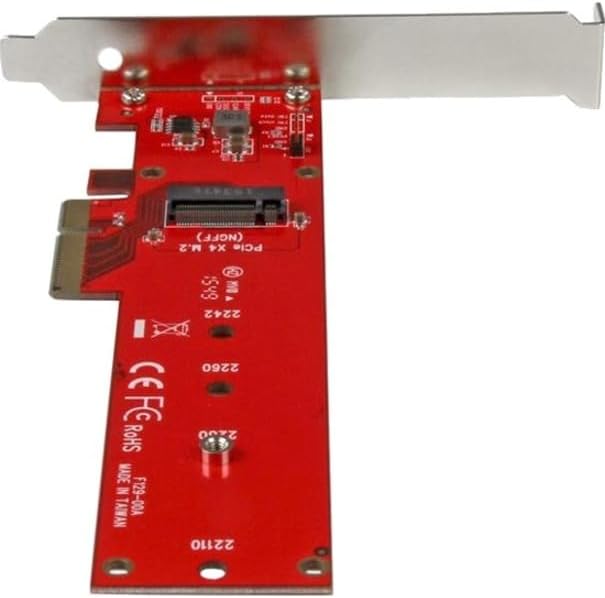

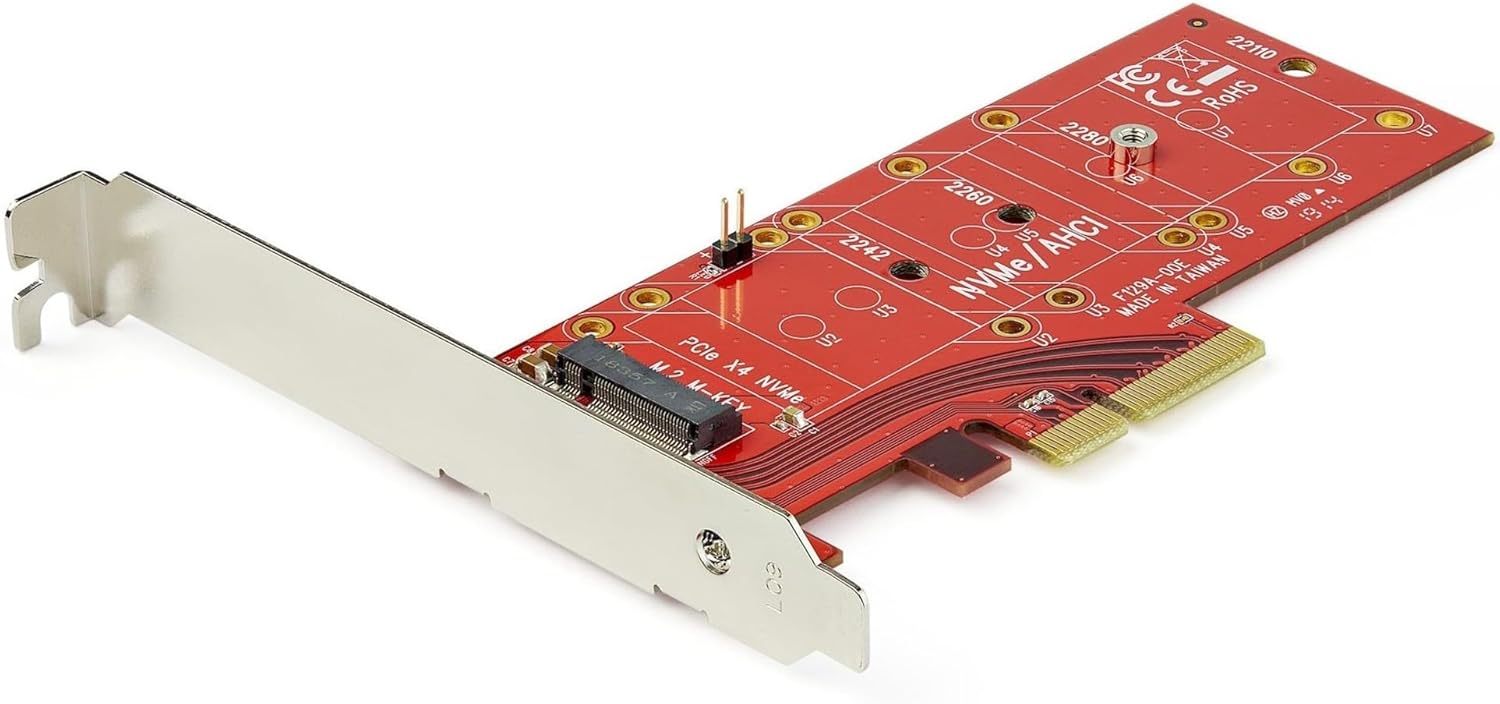

StarTech.com PCIe Adapter Card for M.2 and SATA SSDs
StarTech.com PCIe adapter cards add M.2 (NVMe/AHCI) and/or SATA/eSATA storage via PCIe slots. Includes full-profile and low-profile brackets and a 2-Year warranty.
Out of stock
$29.99 $29.99
$29.99 $29.99
Color
Material
Select Material
Packaged Quantity
Select Packaged Quantity
Customize
Item Package Quantity
1 UOM Quantity
1 Available Quantity
20 GSA Compliant
No Product Details
The StarTech.com family of PCIe adapter and controller cards provides flexible options for expanding internal storage using M.2 and SATA devices. Depending on model, you can add a PCIe M.2 (NVMe or AHCI) drive, multiple M.2 drives (PCIe and/or SATA), or internal/external SATA (eSATA) ports to a system. Supported M.2 sizes across the family include 2280, 2260, 2242, 2230 and 22110, and cards ship with full-profile and low-profile brackets to accommodate standard and small form-factor PCs. Common features found in the line include PCIe slot compatibility (x1/x4/x8/x16), Port Multiplier and jumper configuration options on select models, RoHS/REACH/WEEE compliance on applicable models, and StarTech.com support with a 2-Year warranty.
- THE IT PRO'S CHOICE: IT professionals choice for over 30 years - This NVMe PCIe adapter card is backed for 2 years, including free 24/5 North America based multi-lingual assistance

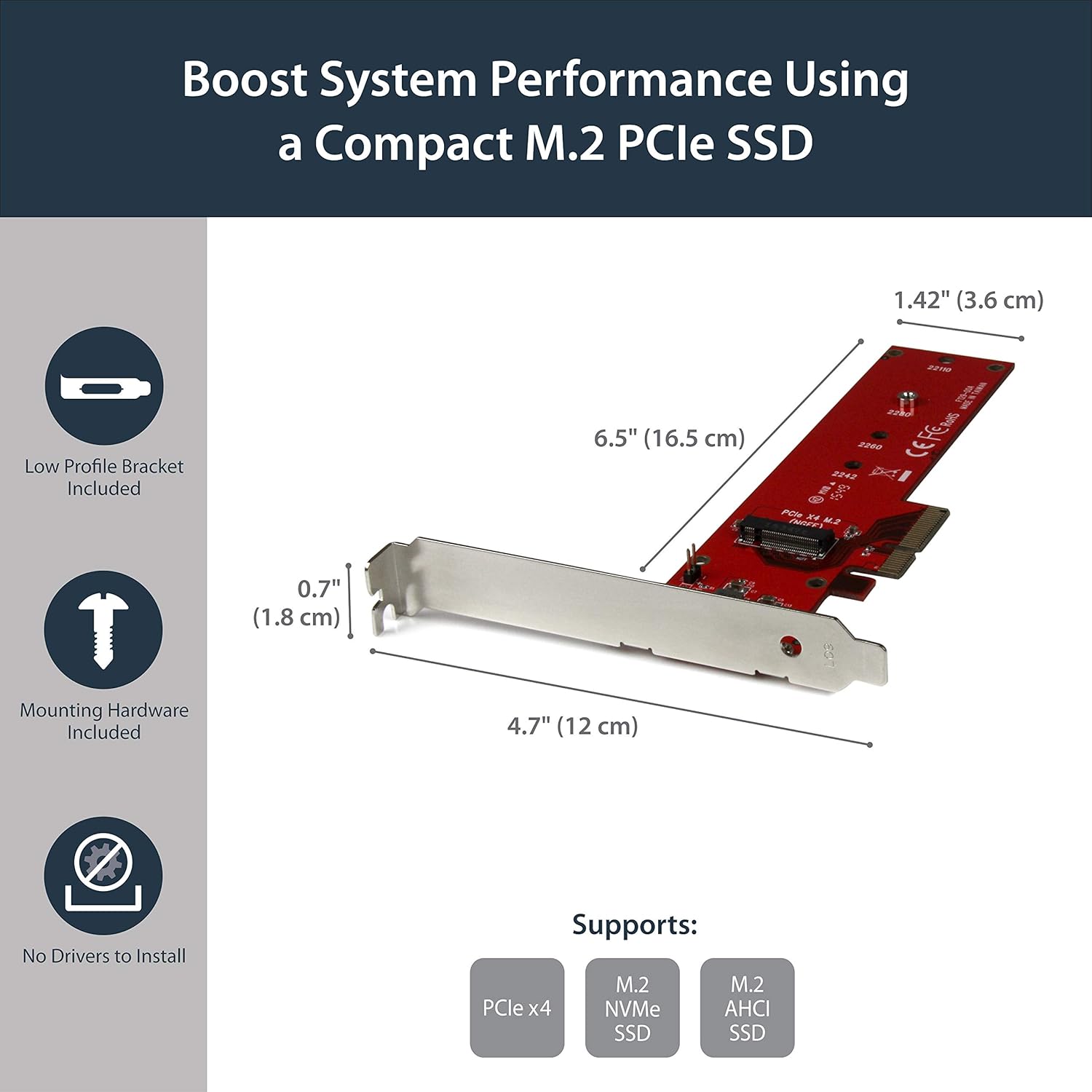

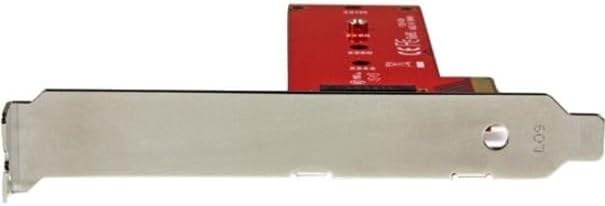

- FULL AND LOW PROFILE: This SSD PCIe M.2 adapter is equipped with a full-profile bracket, and includes a half-height/low-profile bracket for installation in small form-factor computers.
- HASSLE-FREE SETUP: With native OS support, this M 2 PCIe 3.0 x4 adapter is fast to install, ensuring an easy setup - Also compatible with PCIe x8 and x16 slots
- BROAD COMPATIBILITY: This M2 PCIe SSD adapter is compatible with PCIe 3.0 motherboards, and backward compatible with PCIe 2.0 and PCIe 1.0. It also supports PCIe M.2 SSDs (NVMe and AHCI): 2242, 2260, 2280, and 22110 drives for ultimate compatibility
- ENHANCE YOUR PERFORMANCE: Connect a PCIe M.2 SSD (M-Key / NGFF / NVMe or AHCI) to your computer through PCI Express for ultra-fast data access and to boost your system’s performance
Specifications:
| Materials & Construction | |
| Eco Label Standard | RoHS; WEEE; REACH |
| Material (Connector) | Steel |
| Product Details | |
| Country of Origin | Taiwan |
| Hard Drive Interface | NVMe |
| Series | PEX4M2E1 |
| Sizing & Dimensions | |
| Weight | 1.76 ounces |
| Technical Specifications | |
| Compatibility | PCIe 3.0 (backward compatible with PCIe 2.0 and 1.0) |
| Includes | Full-profile bracket and half-height/low-profile bracket |
| Supports Drive Sizes | 2242, 2260, 2280, 22110 |
| Warranty | 2-Year Limited |
