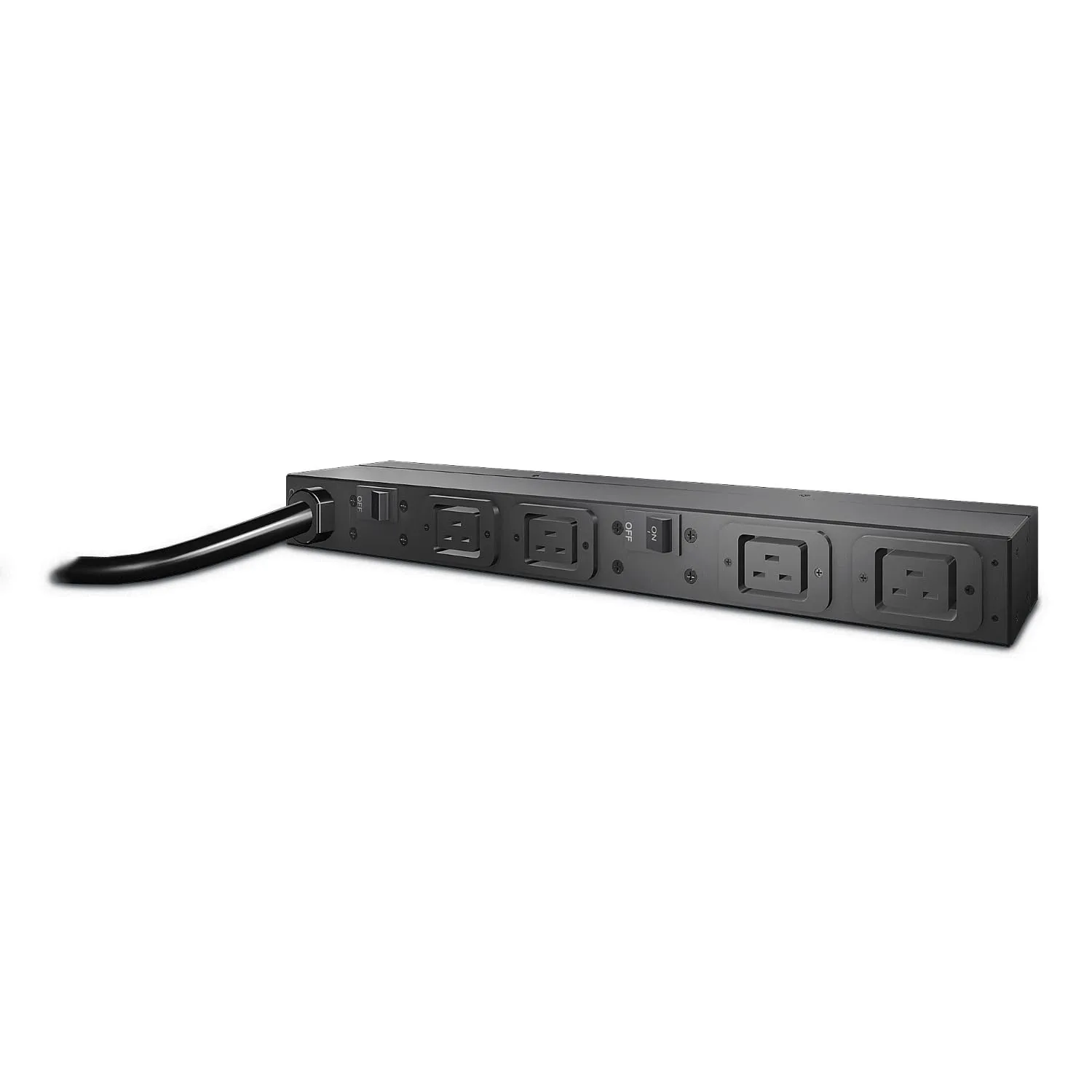

APC Rack Mount Power Distribution Unit (PDU)
Customize

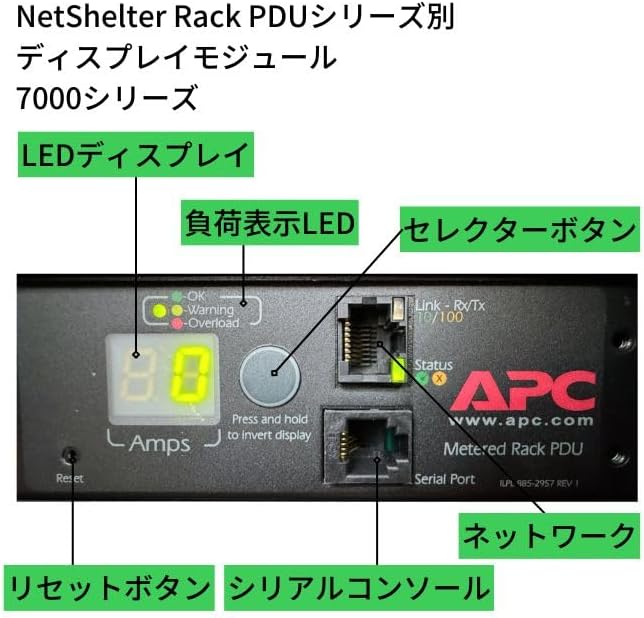

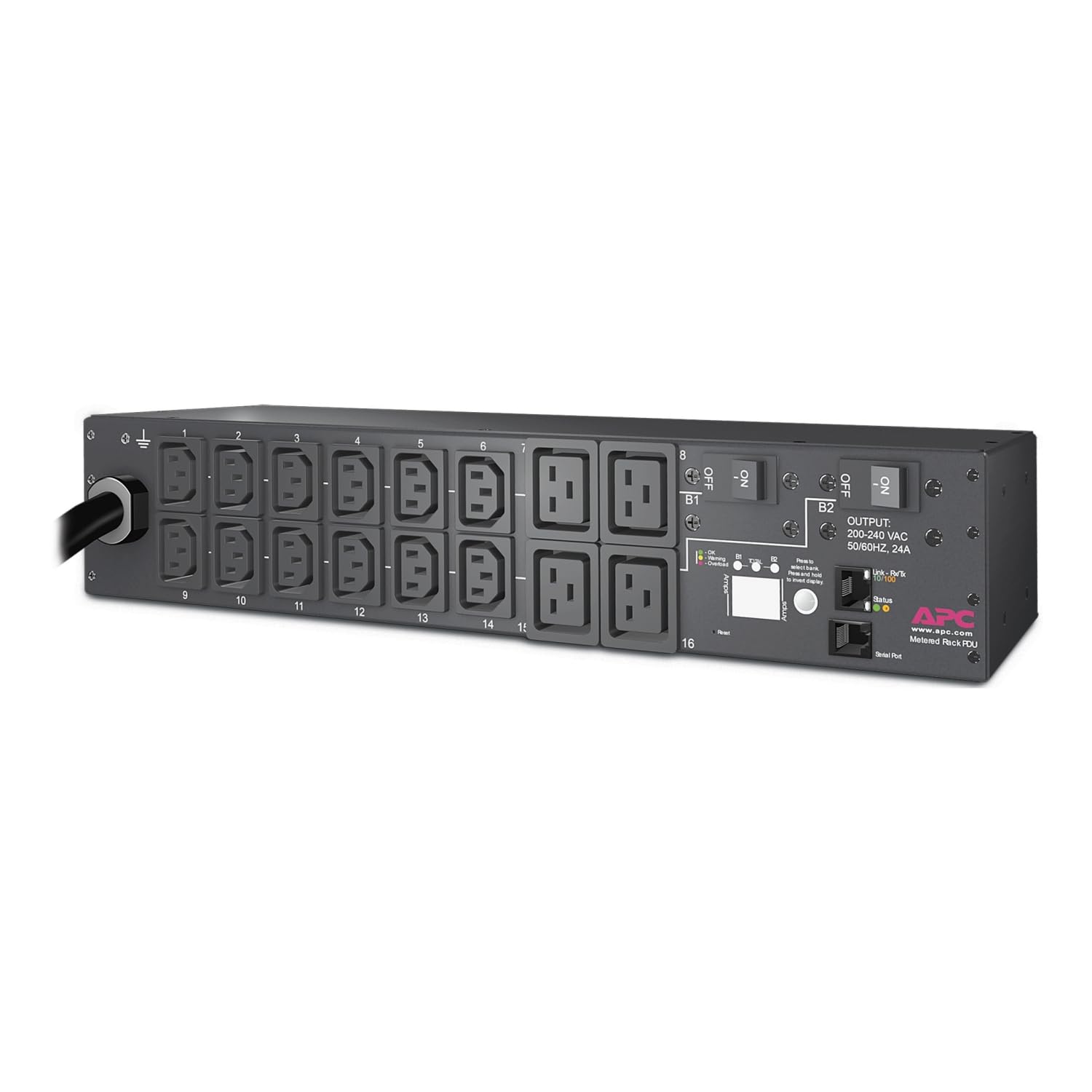

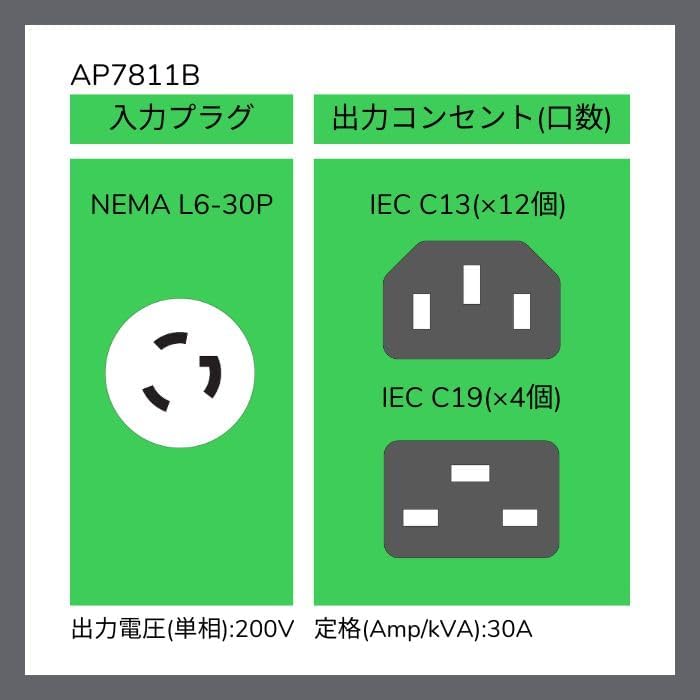

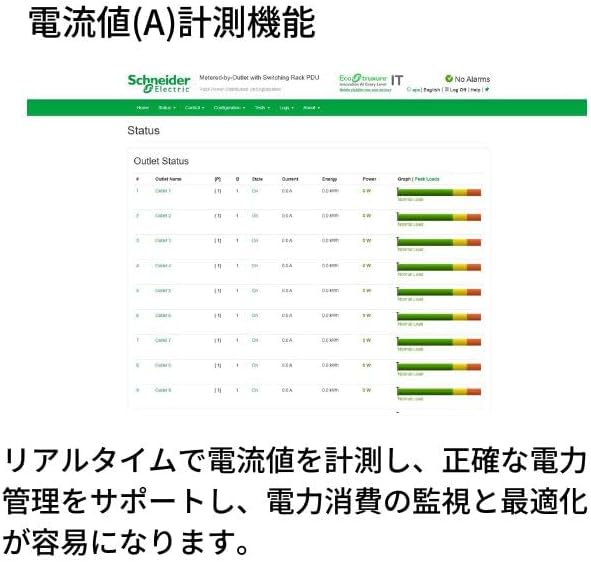

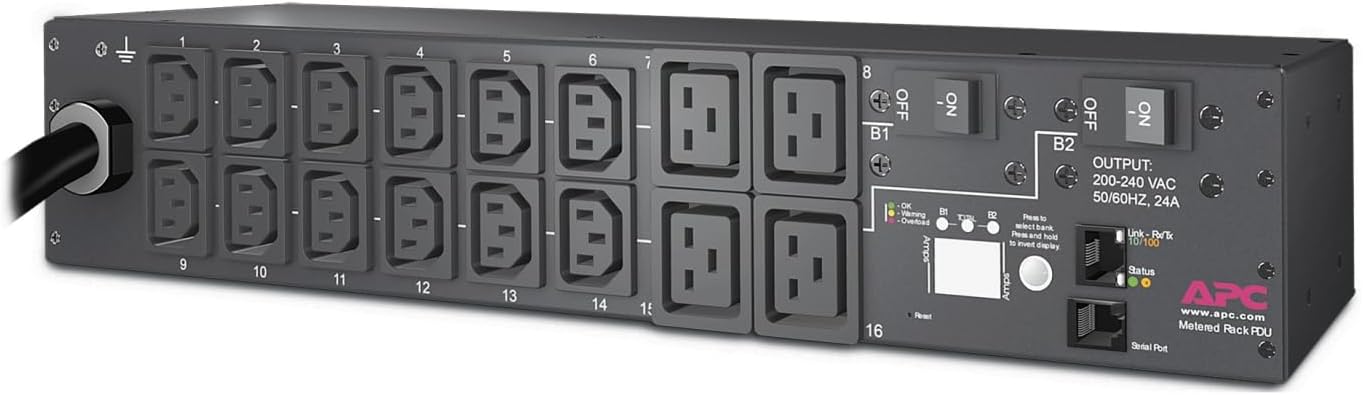

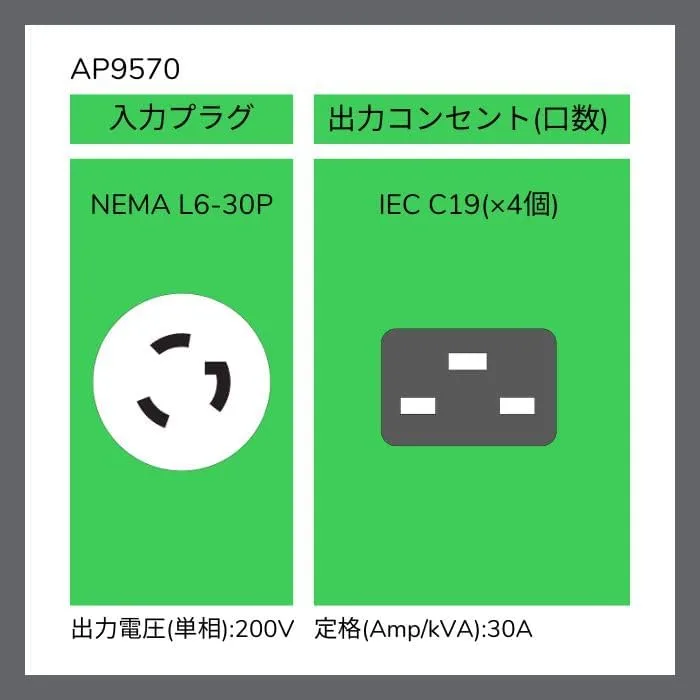

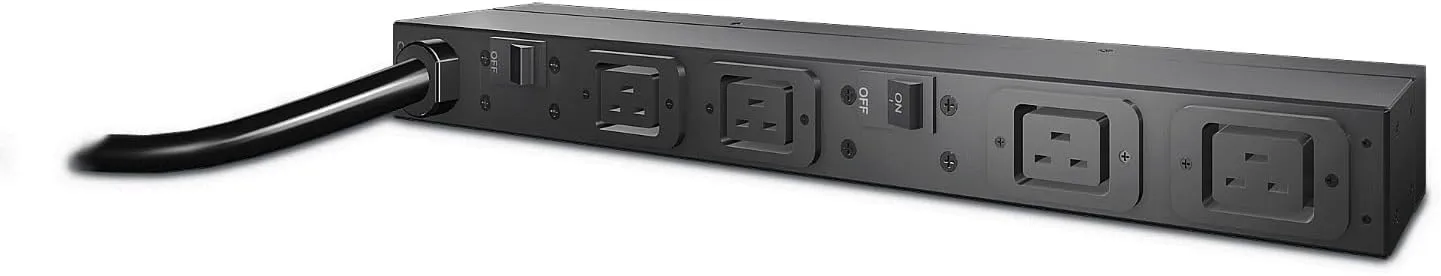

APC Rack Mount PDUs provide rack-mountable power distribution solutions for IT and data center environments. The product family includes vertical (0U) and horizontal (1U/2U) form factors and basic models for straightforward outlet distribution as well as metered models offering real-time local and remote metering, user-defined alarms, and network interfaces for monitoring and management (Ethernet, SNMP, web) with EcoStruxure/InfraStruxure integration on supported units. Models support a variety of input connectors (examples in the family include NEMA L5-20P, NEMA L6-20P, NEMA L6-30P, NEMA L14-30P) and outlet types (including NEMA 5-20R, IEC 60320 C13 and C19) and cord lengths commonly around 9.8 to 12 ft. These PDUs are intended for capacity planning, load distribution, and rack power management in colocation, enterprise, and distributed IT sites. Warranty and compliance details vary by model; select models reference a 2-Year Limited warranty and environmental compliance (RoHS, REACH).
- Cord Length: 9.8 feet

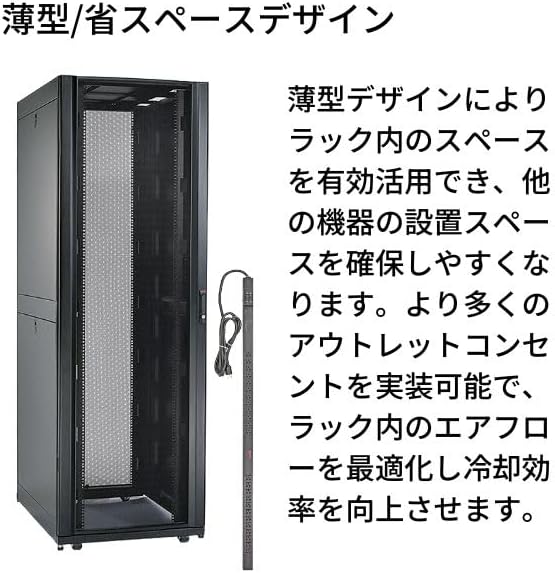

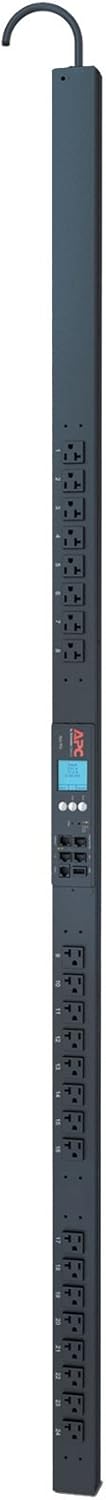

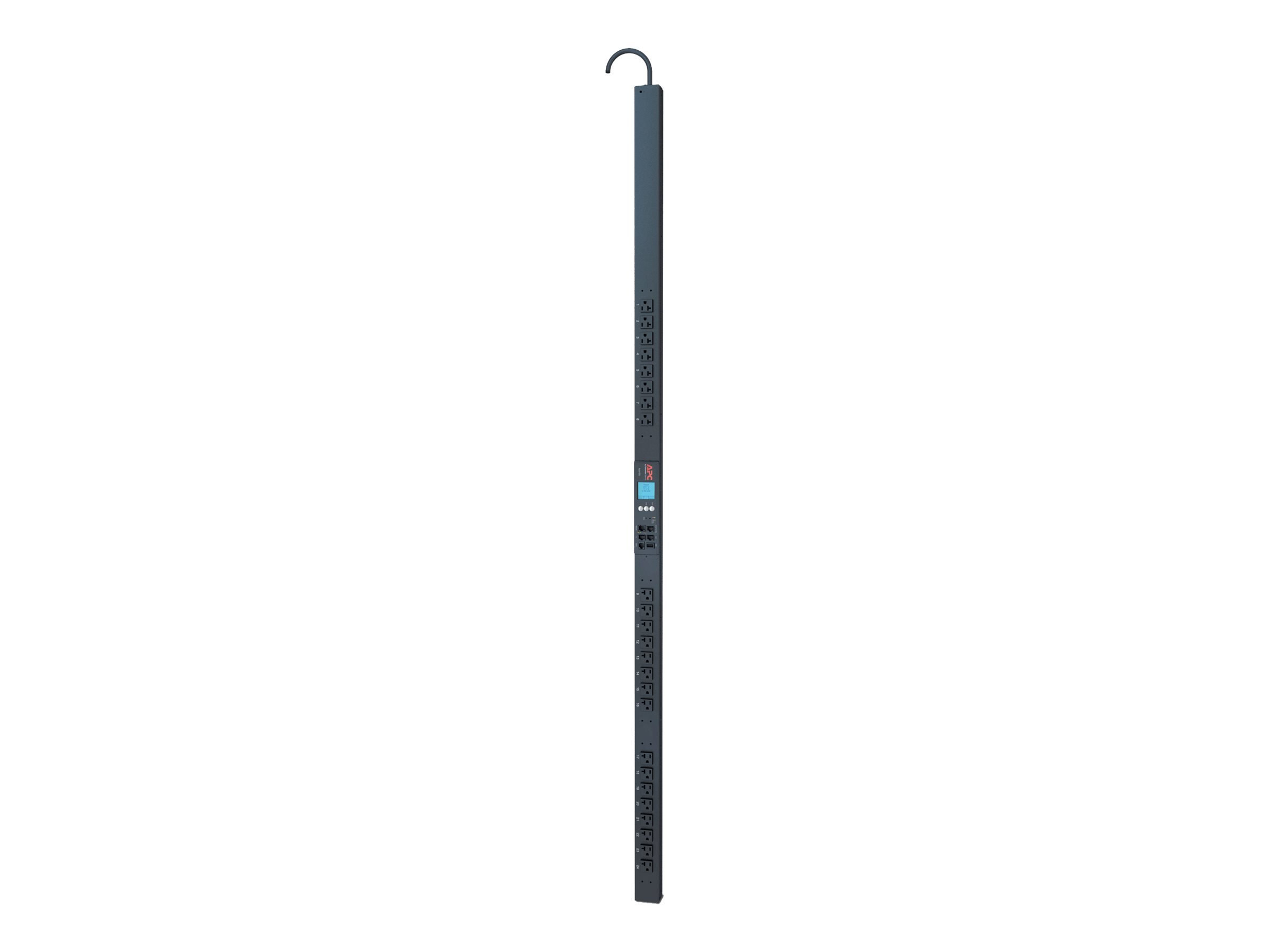

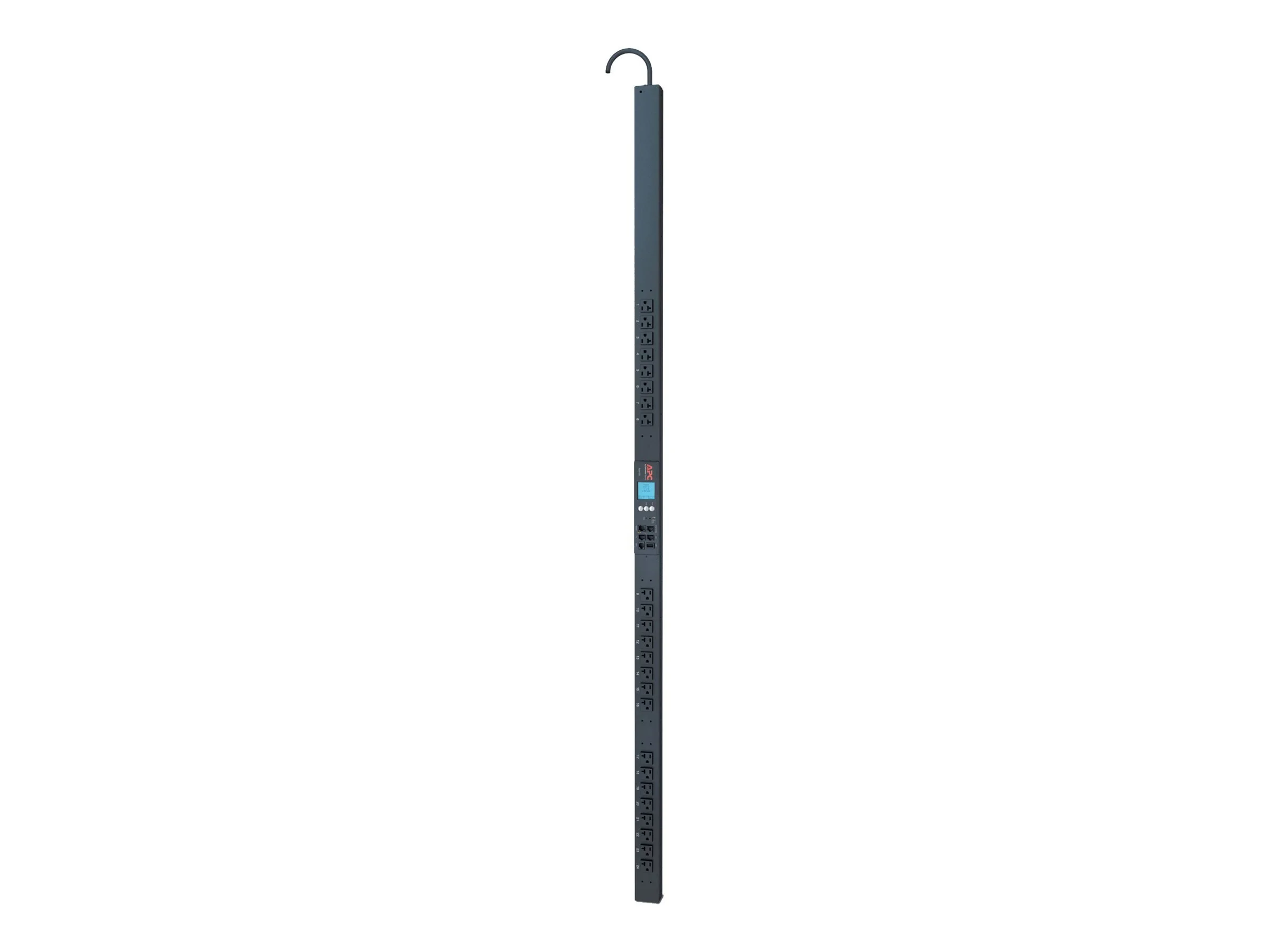

- 0U Vertical Mounting PDU
- Output Receptacles: Twenty-Four (24) 5-20 Outlets
- Input: NEMA L5-20P (1.9 kW)
- 100V-120V Input, Metered 1Ph 20A rackmount Power Distribution Unit
Specifications:
| Product Details | |
| Eco Label Standard | Rohs; Reach |
| End Of Life Manual Availability | Https://Download.schneider-Electric.com/Files?p_endoctype=circularity+profile&p_doc_ref=enveoli1712014_en |
| Environmental Profile Availability | Https://Download.schneider-Electric.com/Files?p_endoctype=environmental+disclosure&p_doc_ref=envpep1712014_en |
| Eu Rohs Declaration Url | Https://Checkaproduct.se.com/Distantrequestdispatcher.aspx?action=export&pid=433134885&lang=en-us |
| Green Premium | Yes |
| Lead Free | Yes |
| Maximum Input Current | 20 V |
| Mercury Free | Yes |
| Mount Type | Rack-Mountable |
| Optimized Energy Efficiency | Yes |
| Pdu Type | Metered |
| Plug/Connector Detail | 1 X Nema L5-20p |
| Plug/Connector Type | Nema L5-20p |
| Power Rating (Va) | 1920 |
| Reach Declaration Url | Https://Checkaproduct.se.com/Distantrequestdispatcher.aspx?action=exportpdfreach&pid=433134885&lang=en-us |
| Receptacle Type | Nema 5-20r |
| Warranty | 2-Year Limited |
| Sizing & Dimensions | |
| Product Weight | 16.1000 |
| Weight | 0.32 ounces |
| Technical Specifications | |
| Is Discontinued By Manufacturer | No |
| Power Rating (Va) | 1920 |
| Proposition 65 Warning | True |
