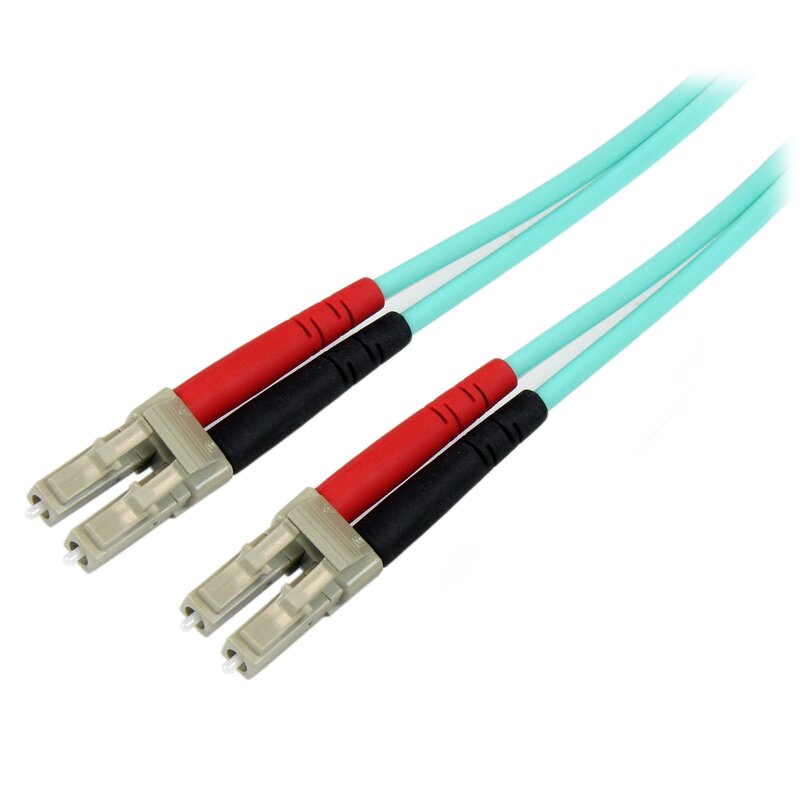

StarTech.com OM3 Multimode LSZH Duplex Fiber Optic Patch Cable
Customize
This StarTech.com OM3 multimode fiber patch cable family delivers dependable, high-bandwidth connectivity for modern data networks. Constructed with 50/125 µm OM3 fiber, the cables support high-speed applications including 10Gb, 40Gb and up to 100Gb Ethernet, making them suitable for backbone runs between switches, hubs, routers and SAN equipment. The LSZH (Low-Smoke, Zero-Halogen) jacket reduces smoke and toxic fume release in the event of a fire, improving safety in a variety of installations. Cables are offered with common professional terminations (LC/UPC and SC/UPC) in duplex configuration and are tested to ensure acceptable optical insertion loss and signal integrity. These patch cables are targeted at data centers, central offices, industrial environments, schools and other settings where high-performance, low-smoke fiber cabling is required, and are available in multiple lengths.
- SPECS: 1m (3.3ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
- COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
Specifications:
| Materials & Construction | |
| Outer Material | LSZH rated plastic |
| Product Details | |
| Cable Characteristic | Patch |
| Compatible Devices | Server, Router |
| Connector On First End Details | 2 X Lc Network - Male |
| Connector On Second End Details | 2 X Lc Network - Male |
| Connector Type On First End | Lc Network - Male |
| Connector Type On Second End | Lc Network - Male |
| Core/Cladding Diameter | 50/125 µm |
| Customer Package Type | Standard Packaging |
| Gender (End 1) | Male |
| Gender (End 2) | Male |
| Number of Pins | 4 |
| Outer Material | LSZH rated plastic |
| Packaged Quantity | 1 |
| Recommended Uses For Product | Industrial |
| Shape | Round |
| Special Feature | High Speed |
| Warranty | Full Lifetime |
| Sizing & Dimensions | |
| Product Weight | 0.0500 |
| Weight | 0.64 ounces |
| Technical Specifications | |
| Packaged Quantity | 1 |
| Warranty | Full Lifetime |
