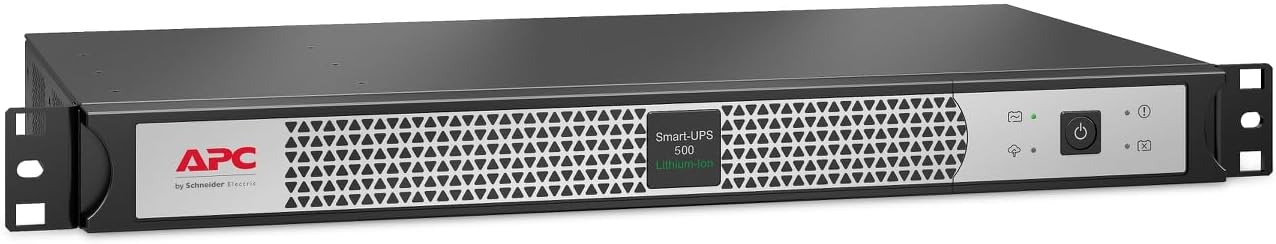

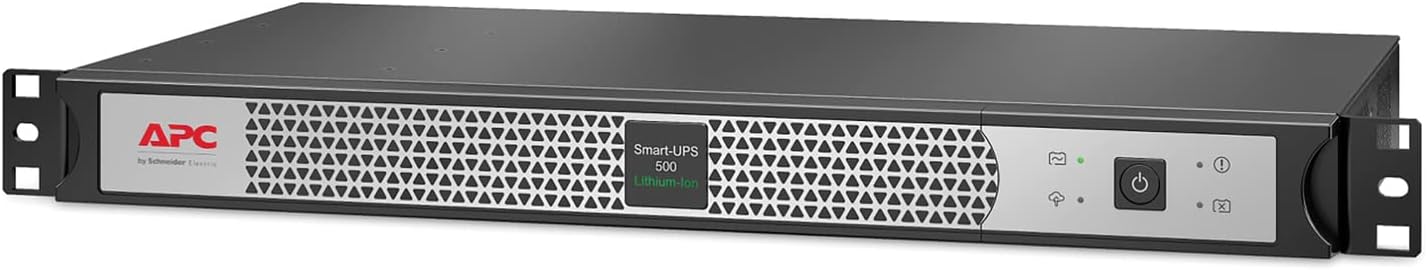

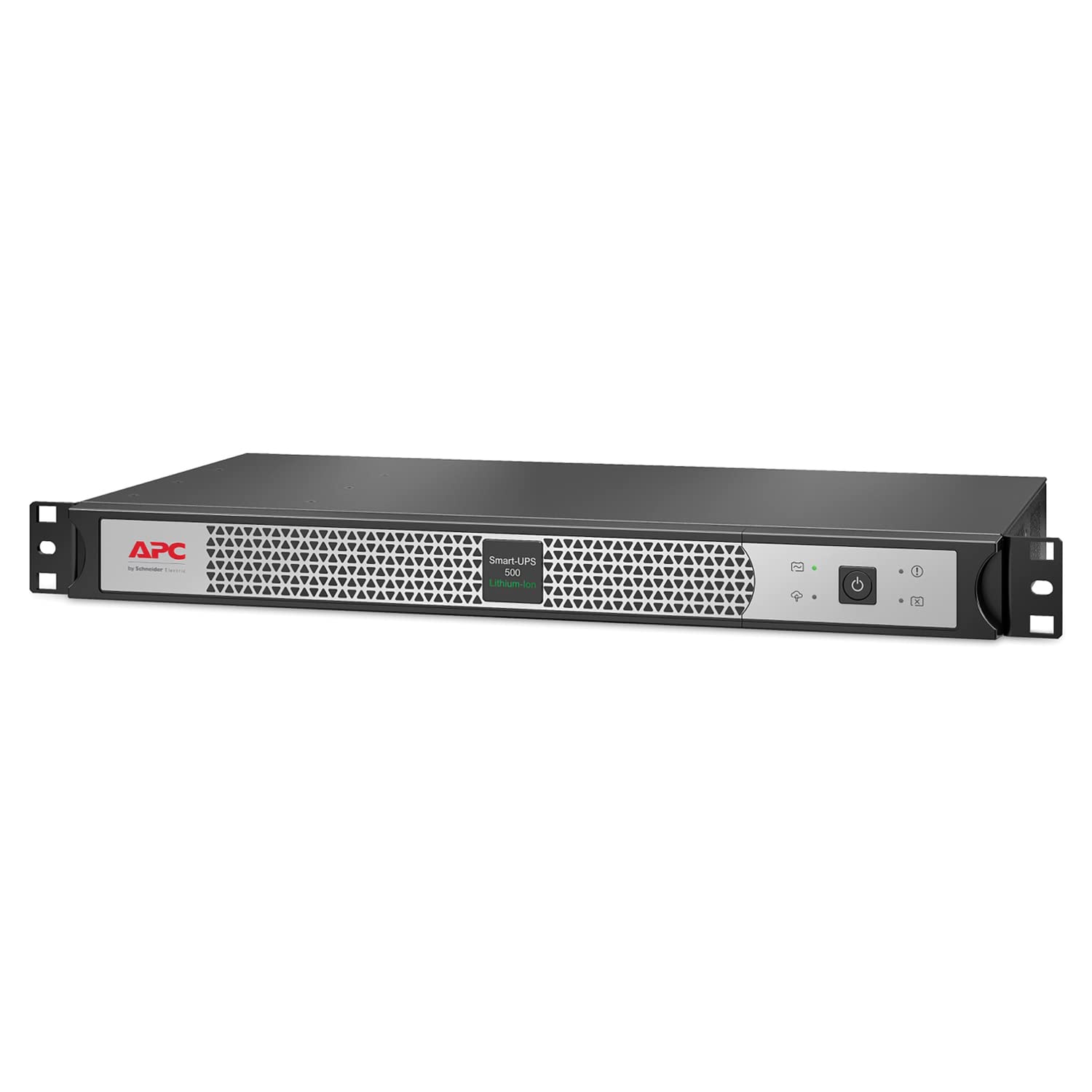

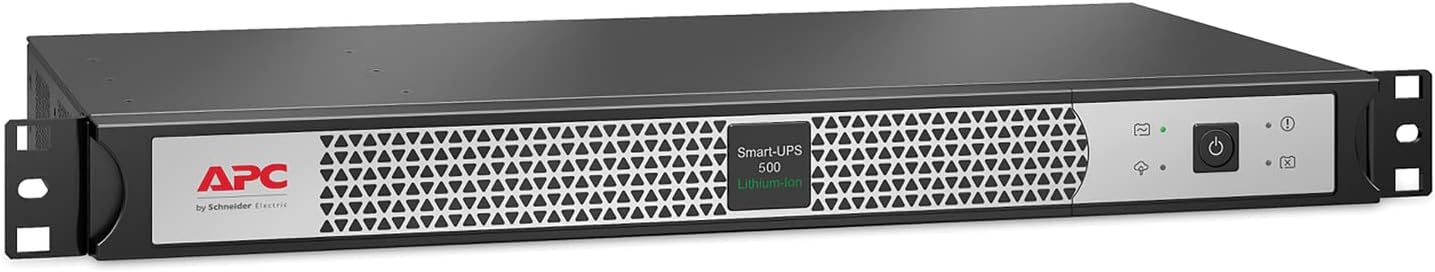

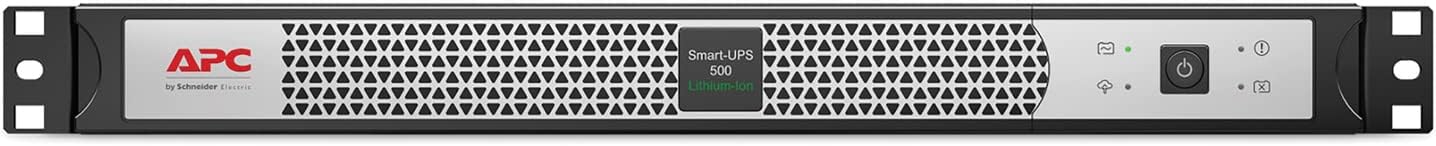

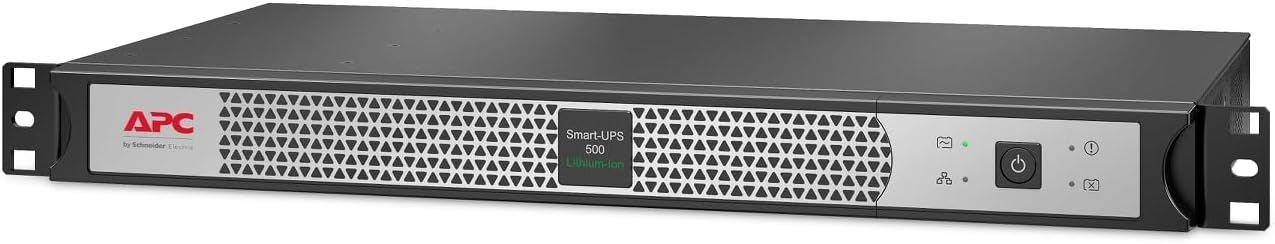

APC Smart-UPS 500VA Lithium-Ion UPS with SmartConnect Short-Depth 1U Rackmount
Customize
The APC Smart-UPS 500VA lithium-ion line-interactive UPS offers reliable, energy-efficient power protection for 120V equipment. Designed as a short-depth 1U rackmount, it fits constrained spaces while providing four NEMA 5-15R outlets and pure sine wave output suitable for servers and networking gear. Built-in SmartConnect cloud-based remote monitoring enables remote visibility and firmware updates; the UPS supports graceful shutdown via serial or USB (PowerChute) and features hot-swap battery support. Protection highlights include a 680 Joule surge rating, ~3 minutes typical battery runtime at full load and approximately 3 hour recharge time. The product is UL listed and comes with a 5-year limited warranty, making it suitable for small edge environments, back office, and network closets.
- 1U Rackmount UPS Includes rack mounting support rails
- APC SmartConnect is an easy to use remote monitoring feature (via a secure portal) that provides automatic notifications, firmware updates, and advanced support services. For all units purchased and/or registered after August 1, 2023, SmartConnect will be offered as a 6-month free trial

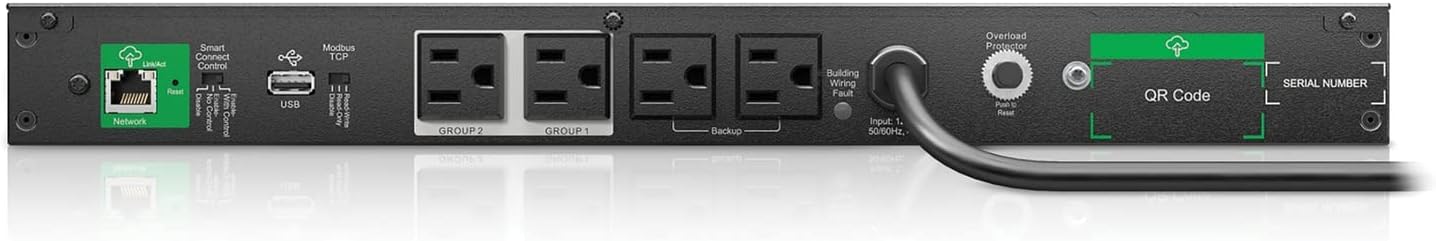

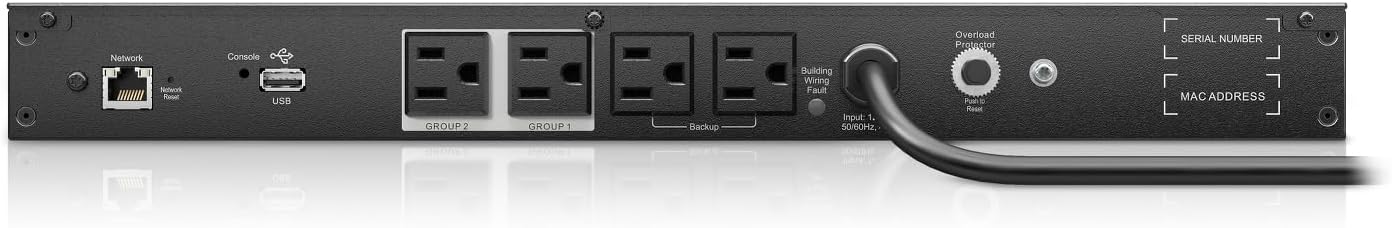

- Input NEMA 5-15P Output (4) NEMA 5-15R Nominal Input/Output Voltage 120V. Cable Length 6 ft.

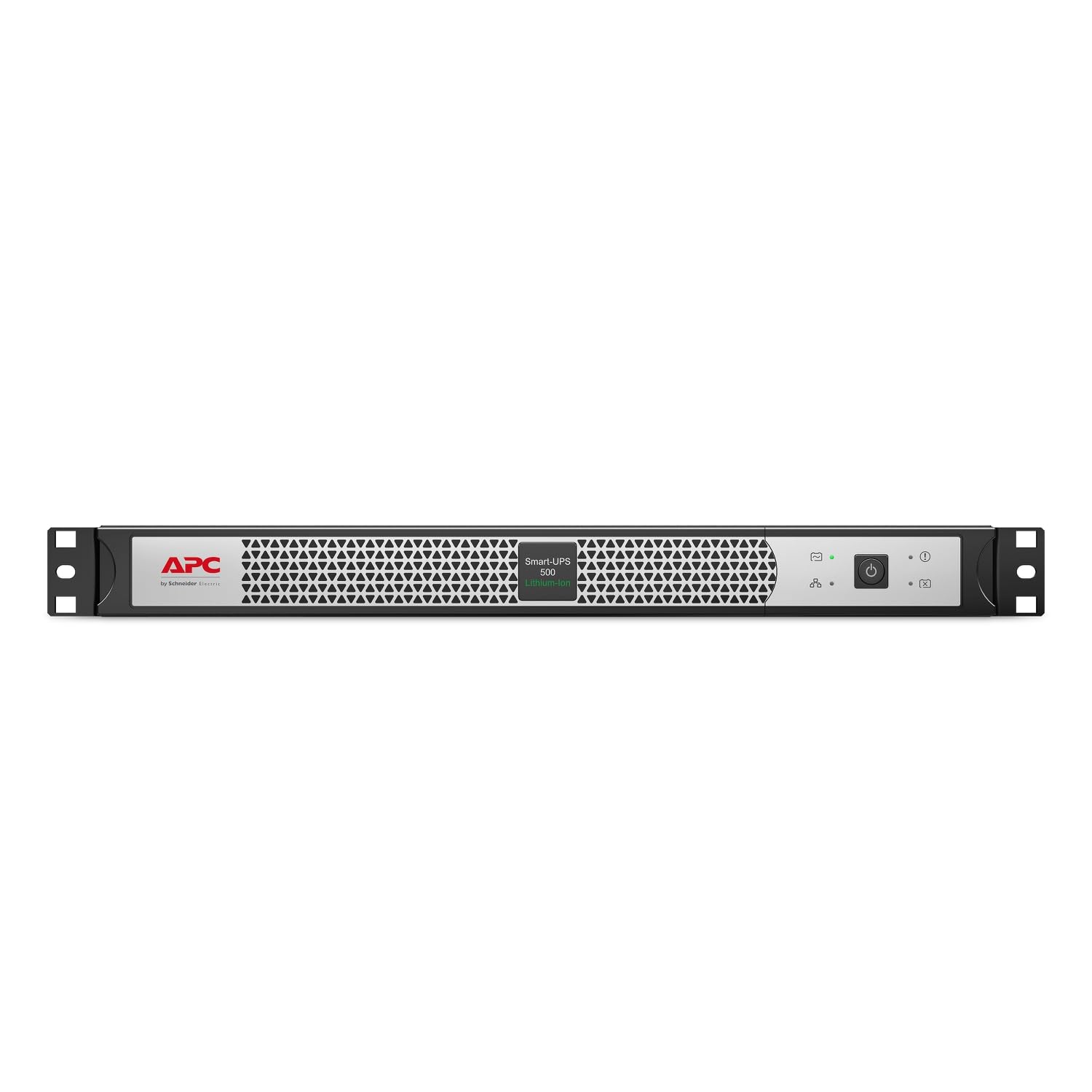

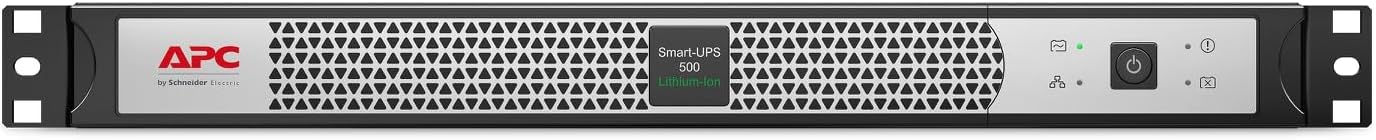

- LED display indicates Online/On Battery SmartConnect Status Network Status Event Detected and Replace battery
- 500VA / 400W Sine Wave UPS battery backup
Specifications:
| Materials & Construction | |
| Batteries | 4 Lithium Polymer batteries required. (included) |
| Battery Cell Composition | Lithium Ion |
| Product Details | |
| Application | Servers/Networking |
| Automatic Voltage Regulation | Yes |
| Battery Run Time | 3 Min |
| Charge Time (Approx) | 3 hr |
| Eco Label Standard | Energy Star |
| Eco-Conscious | Energy Efficient; Helps Save Energy |
| Frequency Response | 50hz To 20khz |
| Green Premium | Yes |
| Load Capacity (Va) | 500 |
| Load Capacity (Watt) | 400 |
| Model | 500va Short Depth With Smartconnect |
| Number Of Surge Only Outlets | 4 |
| Optimized Energy Efficiency | Yes |
| Power Capacity | 500 va |
| Product Color | Black; Silver |
| Product Take Back Program | Yes |
| Rack Mountable | Yes |
| Sound Emission (A-Weighted) | 45 |
| Surge Rating | 680 Joule |
| Ups Battery Type | Lithium-Ion |
| Ups Type | Line Interactive |
| Vertical Rack Space | 1u |
| Warranty | 5-Year Limited |
| Sizing & Dimensions | |
| Weight | 9.26 pounds |
| Technical Specifications | |
| Surge Rating | 680 Joule |
| Ul Listed | Yes |
| UPS Weight | 9.22 lb |
| Warranty | 5-Year Limited |
