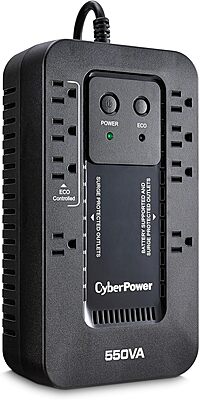

CYBERPOWER Ecologic UPS Battery Backup & Surge Protector
Customize
The CYBERPOWER Ecologic UPS line offers compact, standby-topology power protection that combines battery backup with surge suppression for home offices, desktops, workstations and networking equipment. Designed with ECO Mode to reduce energy consumption by turning off peripherals when the connected system is off or in sleep mode (USB connection required), these UPS models use simulated sine wave output and sealed lead-acid batteries to support essential devices during power interruptions. Built-in EMI/RFI noise filtration and 526 Joule surge suppression help protect sensitive electronics, and each unit is covered by a 3-year warranty (including batteries) plus a $100,000 Connected Equipment Guarantee. The Ecologic series provides a balance of compact form factor and core protections suitable for home networks and small office setups.
- 3-YEAR WARRANTY – INCLUDING THE BATTERY; dollar 100,000 Connected Equipment Guarantee and FREE PowerPanel Personal Edition Management Software (Download)
- ECO MODE: When the UPS detects a computer is off or in sleep mode, it will automatically turn off power to computer peripherals connected to ECO mode outlets, reducing power usage and lowering energy costs
- LED STATUS LIGHTS: Indicate Power-On and ECO Mode On/Off
- EIGHT NEMA 5-15R OUTLETS: Four battery backup & surge protected outlets, Four surge protected outlets (Three ECO controlled); INPUT: NEMA 5-15P right angle, 45 degree offset plug with five foot power cord
- 550VA/330W Ecologic Battery Backup Uninterruptible Power Supply (UPS) System uses simulated sine wave output to safeguard workstations, networking devices, and home entertainment equipment
Specifications:
| Product Details | |
| Application | Home Network |
| Battery Run Time | 2 Min |
| Cable Included | Yes |
| Charge Time (Approx) | 8 hr |
| EMI/RFI Noise Filtration | Yes |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs) |
| Frequency Response | 50hz To 20khz |
| Item model number | EC550G |
| Load Capacity (Watt) | 330 |
| Number Of Surge Only Outlets | 4 |
| Output Power Factor | 0.6 |
| Power Capacity | 550 va |
| Surge Rating | 526 Joule |
| Surge Suppression | Yes |
| Ups Battery Type | Lead-Acid |
| Sizing & Dimensions | |
| Height | 3.1 inches |
| Length | 5.9 inches |
| Product Dimensions | 5.9"D x 10.6"W x 3.1"H |
| Weight | 6 pounds |
| Width | 10.6 inches |
