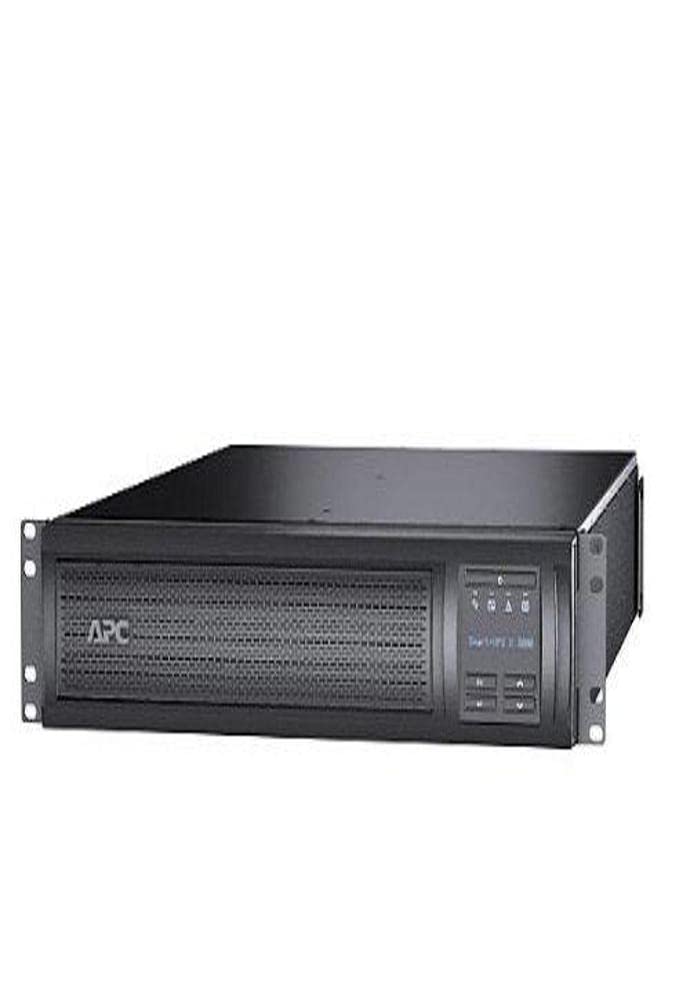

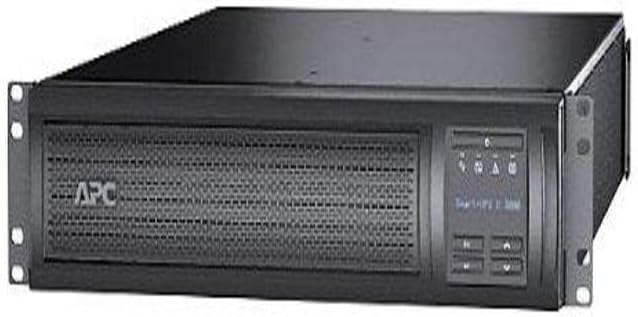

APC Smart-UPS X SMX Series 2U Rack/Tower Line-Interactive UPS
Customize

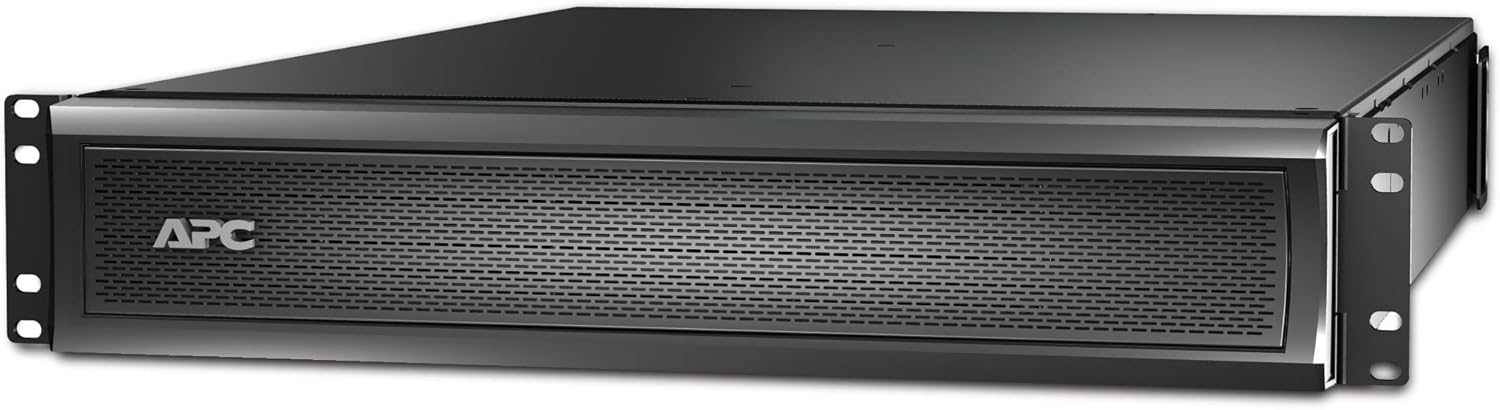

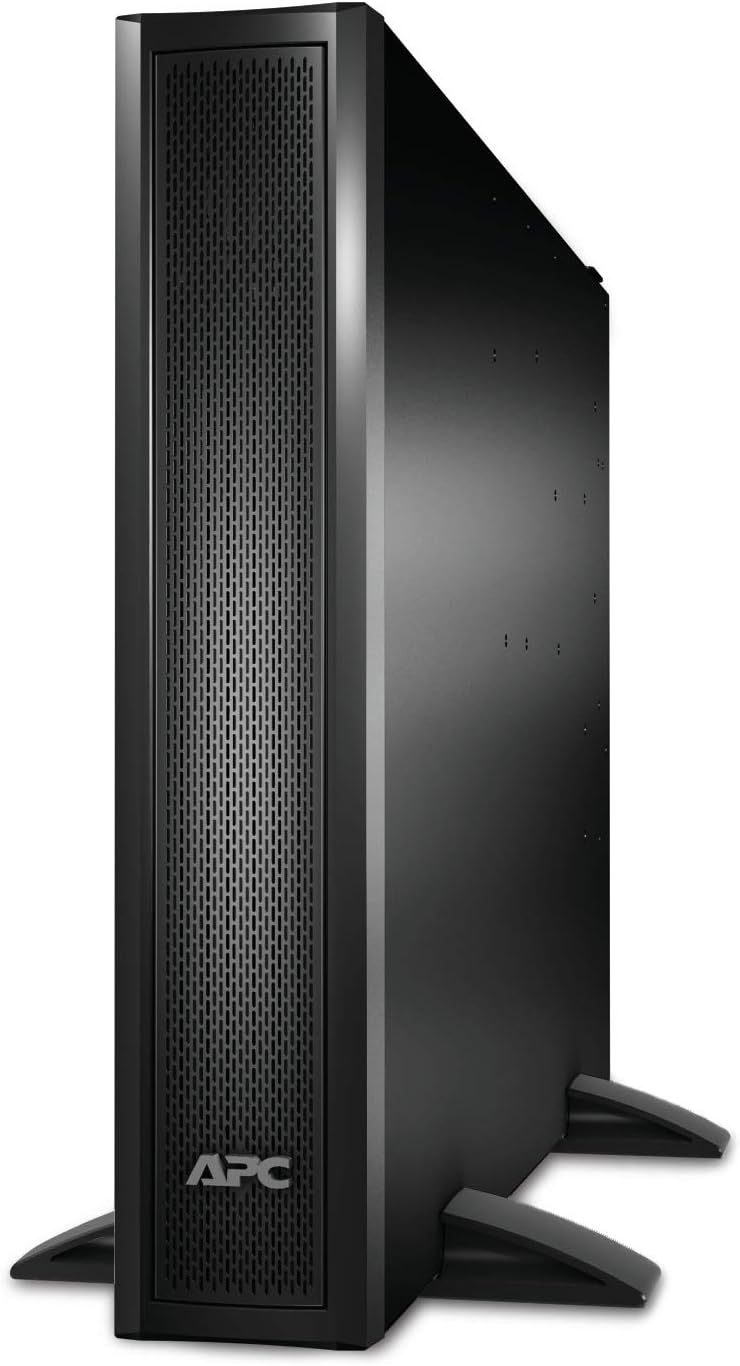

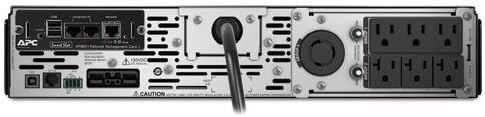

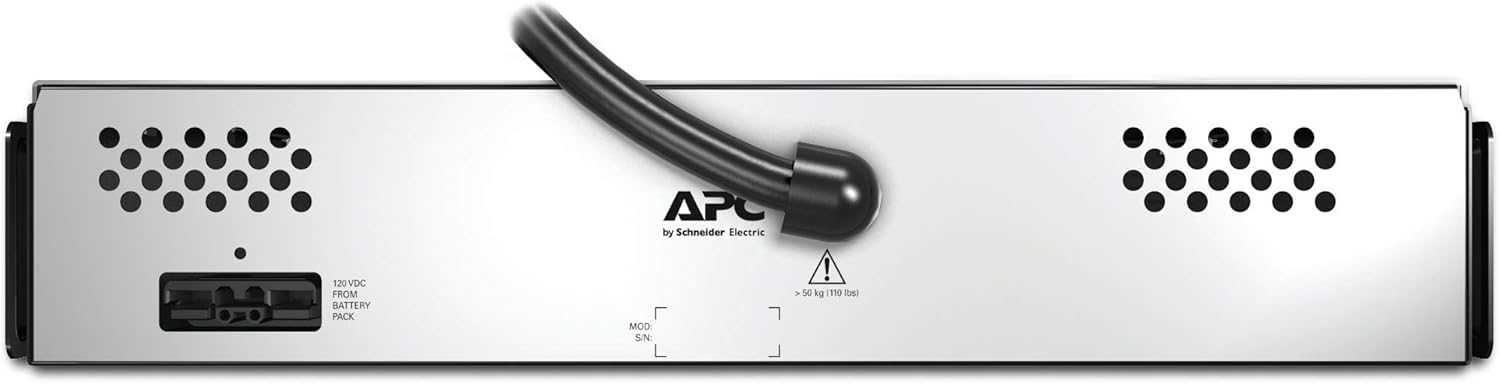

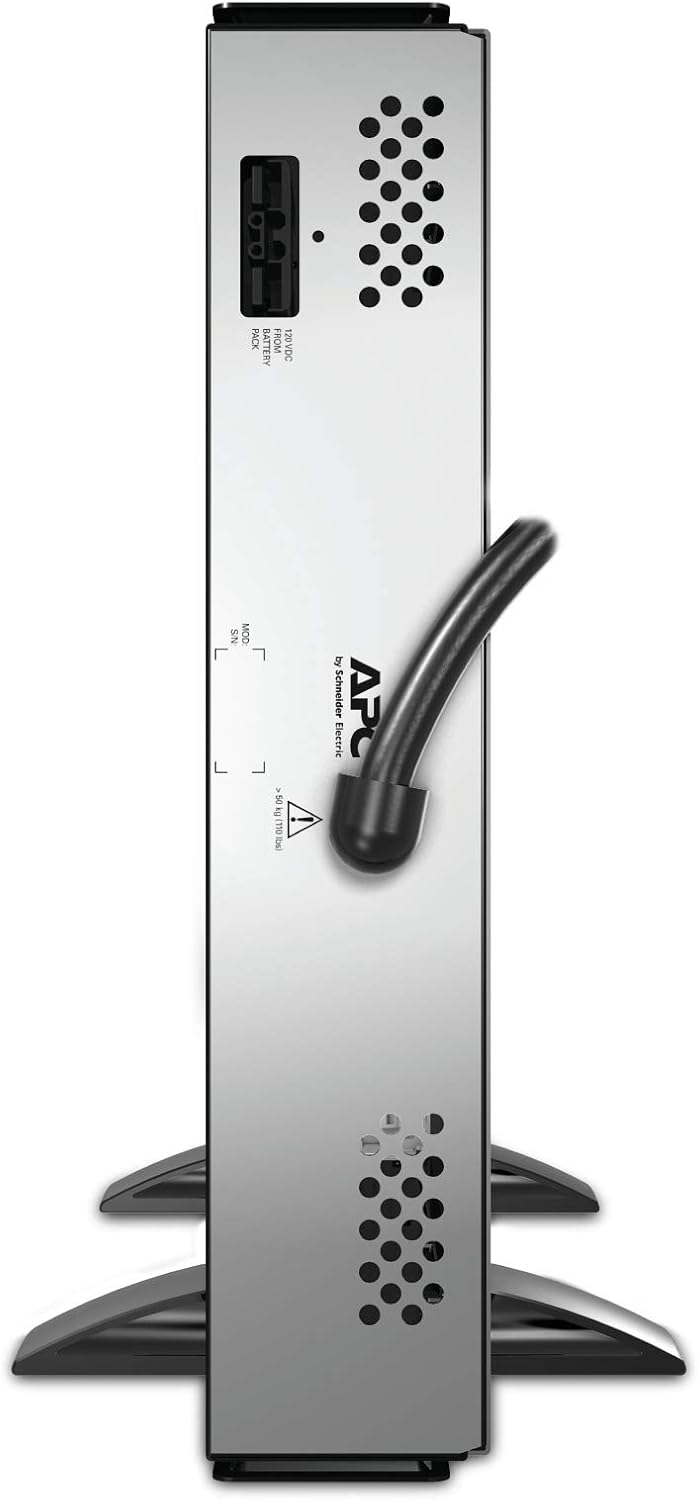

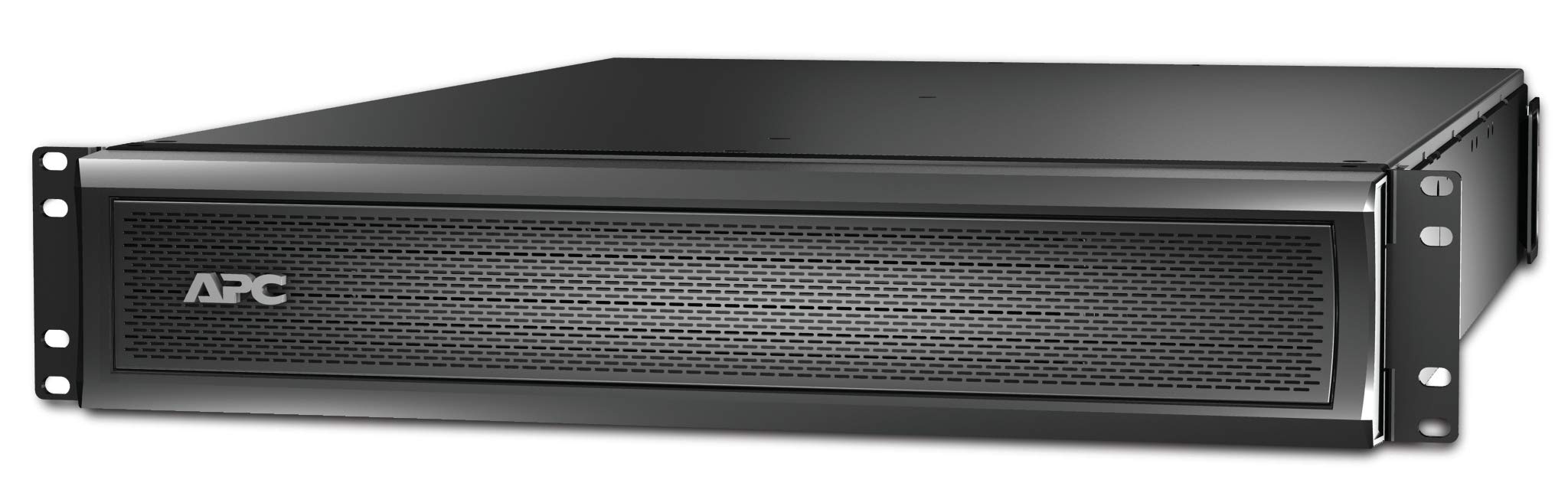

The APC Smart-UPS X (SMX) series is a family of 2U rackmount/tower convertible, line-interactive UPS units and compatible external battery packs designed to protect servers, networking equipment and critical IT infrastructure. Common features across the SMX line include an intuitive LCD, sealed lead-acid batteries, automatic voltage regulation (AVR), automatic self-test, cold-start capability and multiple switched outlet groups for granular power management. The series supports external battery packs and hot-swappable/replaceable batteries to extend runtime and reduce Mean Time to Repair. Select models include a preinstalled Network Management Card (NMC) and work with PowerChute Network Shutdown and EcoStruxure IT for centralized monitoring and graceful shutdown of systems. Rack-mounting brackets, tower mounting options and rail kits are provided on applicable configurations to support installation in diverse IT environments.
- Topology: line interactive; Plug Type: L5
- Battery type maintenance-free sealed lead-acid battery with suspended electrolyte: leak proof typical recharge time 3 hours)
- Nominal input voltage 120V input frequency 50/60 Hz +/- 3 Hz (auto sensing)
- Output voltage distortion less than 5% at full load output frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal waveform Type sine wave
- Output power capacity 2700 watts/ 3000 VA max configurable power 2700 watts/ 3000 VA nominal output voltage 120V efficiency at full load 98%
Specifications:
| Product Details | |
| Battery Cell Composition | Sealed Lead Acid |
| Is Discontinued By Manufacturer | No |
| Item model number | SMX3000RMLV2UNC |
| Voltage | 120 Volts |
| Sizing & Dimensions | |
| Height | 3.36 inches |
| Length | 26.26 inches |
| Product Dimensions | 17 x 26.26 x 3.36 inches |
| Weight | 84.6 pounds |
| Width | 17 inches |
| Technical Specifications | |
| Battery Cell Composition | Sealed Lead Acid |
| Voltage | 120 Volts |
