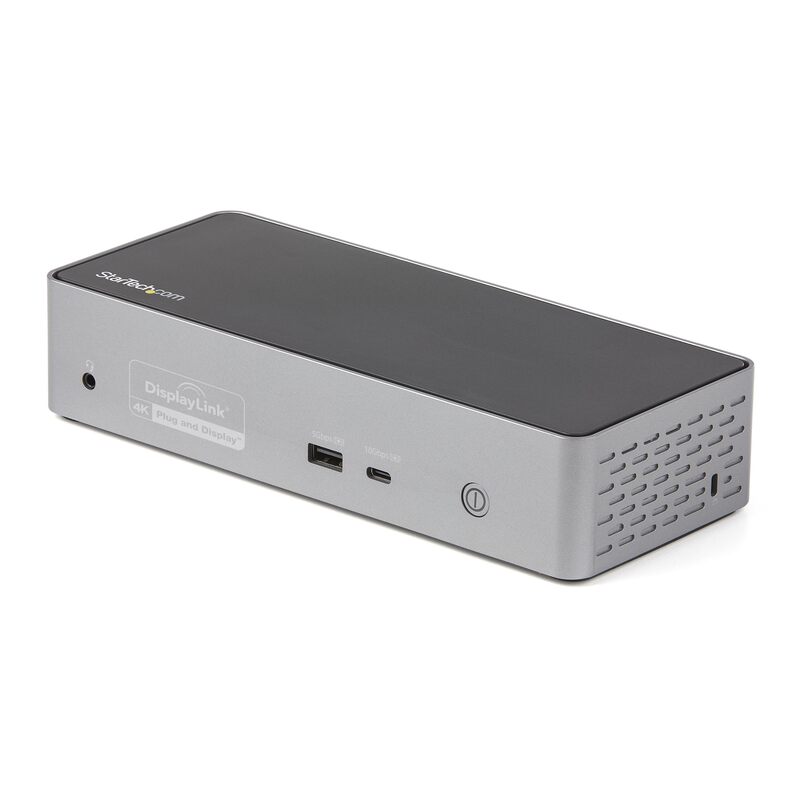

StarTech.com Universal USB-C and Thunderbolt Docking Station
Customize
This StarTech.com universal docking station family transforms compatible USB-C, USB4 and Thunderbolt laptops into full-featured workstations. Models support multiple 4K displays (up to 4K 60Hz where supported) across HDMI and DisplayPort outputs, while providing high-power USB-C Power Delivery (98–100W depending on model) to charge laptops. The docks include multi-port USB hubs, Ethernet connectivity (Gigabit/2.5Gb where specified), and front/rear peripheral ports to connect keyboards, mice, storage and audio accessories. Enterprise and prosumer features found across models include DisplayLink support on select units, Thunderbolt/USB4 certified options, PXE boot, Wake-on-LAN, MAC address pass-through, Kensington security slot and mounting options. These docks are designed for mixed Windows and macOS environments and include the cables and utilities called out by each model for deployment and management.
- QUAD MONITOR USB-C DOCK: USB TYPE-C DOCK SUPPORTS UP TO FOUR (4K 60HZ) MONITORS, INCLUDING QUAD, TRIPLE OR DUAL EXTENDED DISPLAYS, USING ANY COMBO OF 4X DISPLAYPORT (DP) AND/OR 4X HDMI 2.0 OUTPUTS OR DUAL 5K 60HZ (2X DP PER DISPLAY); 100W POWER DELIVERY QUAD MONITOR USB-C DOCK: USB Type-C dock supports up to four (4K 60Hz) monitors, including quad, triple or dual extended displays, using any combo of 4x DisplayPort (DP) and/or 4x HDMI 2.0 outputs or Dual 5K 60Hz (2x DP per display); 100W Power Delivery

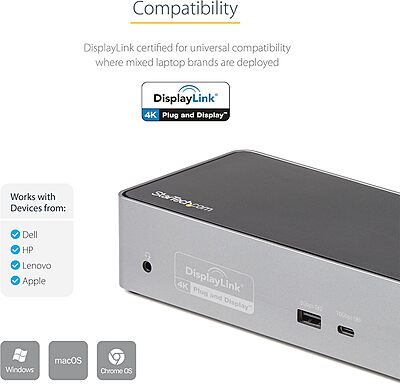

- COMPATIBILITY: SUPPORTS WINDOWS, MACOS, CHROMEOS, LINUX AND HARDWARE PLATFORMS INCLUDING INTEL, AMD AND THE APPLE M-SERIES, ENABLING FOUR EXTERNAL DISPLAYS EVEN ON LAPTOPS THAT NATIVELY ONLY SUPPORT ONE; DRIVER INSTALLATION REQUIRED ON WINDOWS AND MACOS COMPATIBILITY: Supports Windows, macOS, ChromeOS, Linux and hardware platforms including Intel, AMD and the Apple M-Series, enabling four external displays even on laptops that natively only support one; Driver installation required on Windows and macOS
- INCREASE PRODUCTIVITY: DISPLAYLINK CERTIFIED DOCK WITH 4-PORT USB HUB INCLUDES 3X USB-A 5GBPS (1X FAST-CHARGE 1.5A), 1X USB-C UP TO 10GBPS (15W 3A SMARTPHONE/TABLET CHARGING) PORT, GIGABIT ETHERNET (PXE BOOT & WOL), AND A 3.5MM TRRS AUDIO HEADSET/MIC JACK INCREASE PRODUCTIVITY: DisplayLink Certified dock with 4-port USB hub includes 3x USB-A 5Gbps (1x fast-charge 1.5A), 1x USB-C up to 10Gbps (15W 3A smartphone/tablet charging) port, Gigabit Ethernet (PXE Boot & WoL), and a 3.5mm TRRS audio headset/mic jack
- EASY SETUP & MANAGEMENT: QUADRUPLE DISPLAY DOCKING STATION WITH 3.3FT (1M) USB-C HOST CABLE (USB-IF CERTIFIED), FRONT ON/OFF BUTTON, K-SLOT & MOUNTING HOLES, ; OPTIMIZED VENTILATION FOR ENHANCED COOLING EASY SETUP & MANAGEMENT: Quadruple display docking station with 3.3ft (1m) USB-C host cable (USB-IF certified), front On/Off button, K-slot & mounting holes, ; optimized ventilation for enhanced cooling
- OUR ADVANTAGE: INCLUDED CONNECTIVITY TOOLS FOR IT PRO'S AND IT HELP-DESK SUPPORT TEAMS WITH NETWORK MAC ADDRESS PASS-THROUGH FOR NETWORK SECURITY, WIFI AUTO SWITCHING FOR IMPROVED NETWORK PERFORMANCE, USB EVENT MONITORING, AND WINDOWS LAYOUT OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout
Specifications:
| Product Details | |
| Item model number | DK31C4DPPD |
| Wattage | 100 |
| Sizing & Dimensions | |
| Height | 3.90 inches |
| Length | 9.30 inches |
| Product Dimensions | 8.5"L x 3.5"W x 1.8"H |
| Product Weight | 3.1000 |
| Weight | 11.7 ounces |
| Width | 5.90 inches |
| Technical Specifications | |
| Operating System Supported | Windows 10 (64-bit); Windows 11 (64-bit); Mac OS X 10.14 Mojave; macOS 14; ChromeOS 61.x |
| Ports | RJ-45; USB-C; HDMI |
| Supported Resolutions | 3840.000216; 5120.000288 |
| Thunderbolt | No |
| USB Type-C Detail | USB 3.2 Gen 2x1 USB Type-C (Fast-Charge, 24 Pin, 10 Gbps) |
| Warranty | 3-Year Limited |
