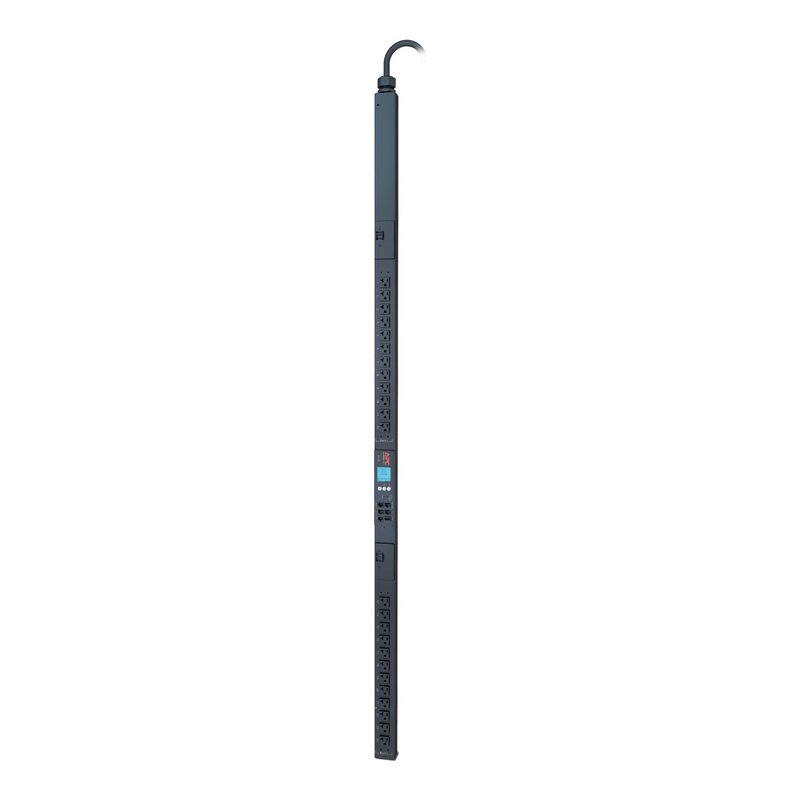

APC Rack Mount PDU, 0U Vertical, 30A, (24) NEMA 5-20R
Customize
The APC Rack Mount PDU family offers a consistent platform for rack power distribution in data center and network environments. All models share a zero-U vertical form factor, 30A NEMA L5-30P input, 24 NEMA 5-20R outlets, black enclosure and a long power cord for flexible placement. Available configurations include Basic distribution, Metered units with +/-3% metering accuracy for amps/volts/kW/kWh, and Switched units with remote outlet-level control, power sequencing and user-defined alarms. Select metered and switched models support real-time local and remote monitoring via secure Web, SNMP or Telnet interfaces and compatibility with APC centralized management platforms. These PDUs provide overload protection and are designed for reliable continuous operation in racks, colocation, and distributed IT sites.
- Cord Length: 9.8 feet
- 0U Vertical Mounting PDU
- Output Receptacles: Twenty-Four (24) 5-20 Outlets

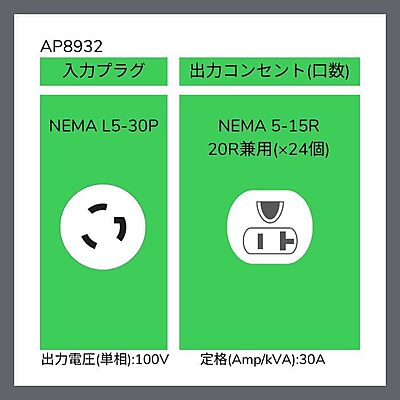

- Input: NEMA L5-30P (2.9 kW)
- 100V-120V Input, Metered 1Ph 30A rackmount Power Distribution Unit
Specifications:
| Materials & Construction | |
| Outer Material | Metal |
| Product Details | |
| Eco Label Standard | Rohs |
| End Of Life Manual Availability | Https://Download.schneider-Electric.com/Files?p_endoctype=circularity+profile&p_doc_ref=enveoli1712014_en |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs) |
| Eu Rohs Declaration Url | Https://Checkaproduct.se.com/Distantrequestdispatcher.aspx?action=export&pid=433134888&lang=en-us |
| Mount Type | Rack-Mountable |
| Optimized Energy Efficiency | Yes |
| Overload Protection | Yes |
| Pdu Type | Metered |
| Plug/Connector Detail | 1 X Nema L5-30p |
| Power Rating (Va) | 2880 |
| Reach Free Of Svhc | No |
| Receptacle Type | Nema 5-20r |
| Warranty | 2-Year Limited |
| Sizing & Dimensions | |
| Product Weight | 18.5500 |
| Weight | 14.67 pounds |
| Technical Specifications | |
| Is Discontinued By Manufacturer | No |
| Maximum Input Current | 30 V |
| Mount Type | Rack-Mountable |
| Optimized Energy Efficiency | Yes |
| Overload Protection | Yes |
| Power Rating (Va) | 2880 |
