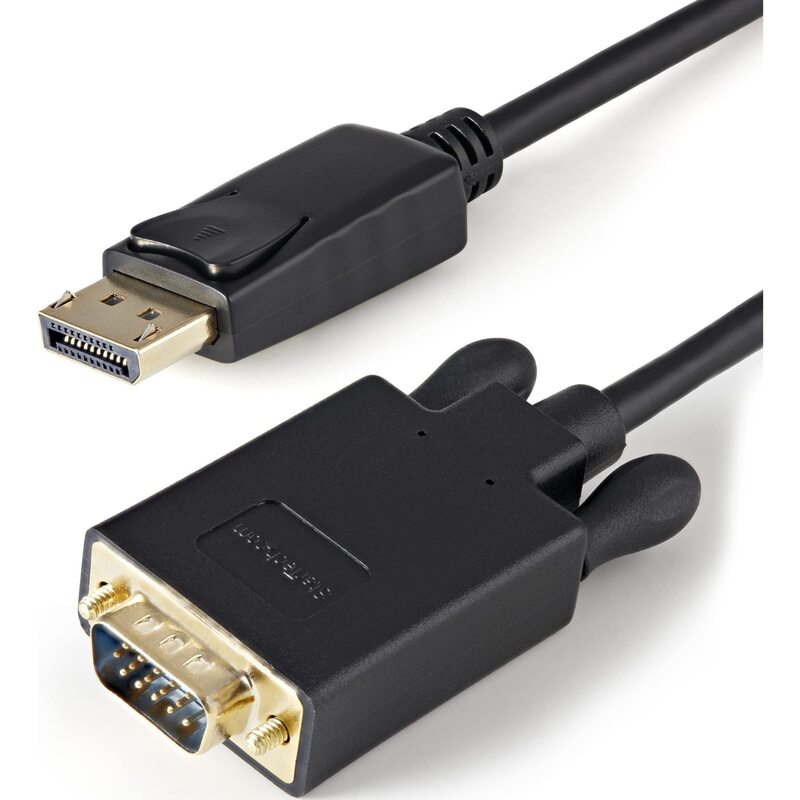

StarTech.com Active DisplayPort 1.2 to VGA Adapter Cable
Customize
This StarTech.com active DisplayPort to VGA adapter cable converts digital DisplayPort (DP/DP++) sources to analog VGA displays and projectors. The slim, flexible cable design integrates the adapter chip into the VGA connector to reduce clutter and minimize signal loss while providing tidy workstation installs. It features a latching DisplayPort connector for a secure host connection and a screw-locking VGA connector to prevent accidental disconnection. The cable supports DisplayPort 1.2 (HBR2) with EDID & DDC pass-through, delivering resolutions up to 2048x1280, 1920x1200 and 1920x1080 (1080p) at 60Hz. Compatible with workstations, desktops (AMD/Nvidia), laptops, small form factor computers and docking stations. Conductor material is copper, color is black, packaged quantity is 1, and the product includes a 3-Year Limited warranty. No software or drivers are required.
- EASY TO USE: With no software or drivers required, the DP to VGA video converter cable/cord works with any OS including macOS, Windows & Ubuntu | DP Source to VGA Monitor/Display/Projector| DisplayPort Male to VGA Male Cable
- LATCHING DISPLAYPORT & SCREW LOCKING VGA: Latching DP connector ensures a solid host connection, and chip built into VGA connector minimizes signal loss | Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection
- INTEGRATED DISPLAY CABLE: Adapter cable has a slim & flexible design w/ adapter chip built into VGA connector reducing clutter & providing a tidy install at your desk workstation in the office or home office
- COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- DISPLAYPORT TO VGA CABLE: 3ft (1m) DisplayPort 1.2 (HBR2) adapter cable lets you connect a single VGA display supporting 2048x1280, 1920x1200 & 1920x1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display
Specifications:
| Materials & Construction | |
| Outer Material | Copper |
| Product Details | |
| Connector On First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector On Second End Details | 1 x 15-pin HD-15 - Male |
| Connector Type | Displayport/Vga |
| Model Number | DP2VGAMM3B |
| Style | Active DisplayPort to VGA Adapter Cable |
| Supported Resolution | 1920x1200 |
| Warranty | 3-Year Limited |
| Sizing & Dimensions | |
| Product Weight | 0.2000 |
| Weight | 2.78 ounces |
| Technical Specifications | |
| Data Transfer Rate | 3 Gigabits Per Second |
| Recommended Uses For Product | signal transfer |
| Shape | Round |
| Unit Count | 1.0 Count |
