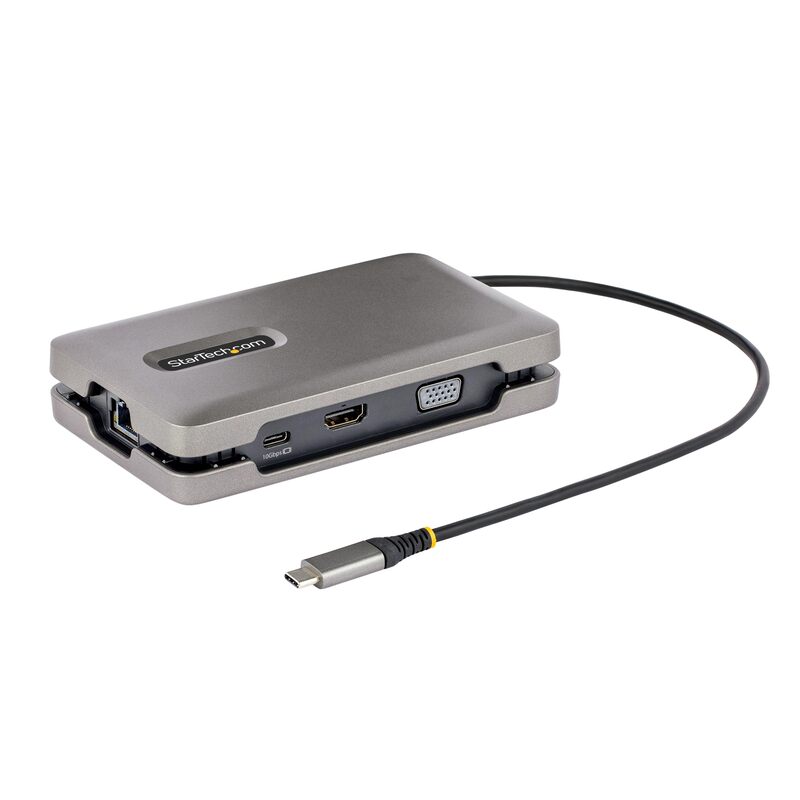

StarTech.com USB-C Docking Station Multiport Adapter with 4K60, 10Gbps USB Hub, 100W PD, Gigabit Ethernet
Customize
StarTech.com USB-C multiport docking stations convert USB-C or Thunderbolt laptops and tablets into full workstations. Designed for portability and reliable performance, these adapters offer DP Alt Mode video support (enabling up to 4K 60Hz where supported), a high-speed USB 10Gbps hub, a downstream full-featured USB-C port, Gigabit Ethernet for wired networking (with PXE and Wake-on-LAN support on select models), and USB Power Delivery pass-through up to 100W for host charging. The family includes variants with HDMI, DisplayPort or VGA video outputs and optional SD/microSD access, and features an extra-long attached cable with wrap-around cable management to reduce strain and clutter during travel. Compatible with a wide range of laptops, Chromebooks and tablets running Windows, macOS, ChromeOS and Linux, the docks include the StarTech.com Connectivity Tools software suite for MAC pass-through, USB event monitoring, Wi-Fi auto-switch and layout utilities. Portable, lightweight and backed by a 3-Year Limited warranty, these adapters are suited for office, home office, travel and boardroom use.

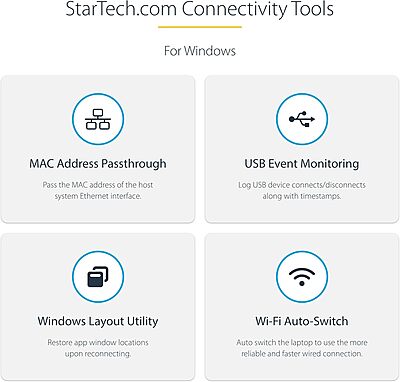

- OUR ADVANTAGE: Includes IT Pro Connectivity Tools to improve network performance and security - featuring MAC Address passthrough, USB Event Monitoring, Windows Layout, and Wi-Fi Auto Switch; Works w/ USB-C, Thunderbolt 3/4, Windows, Linux, ChromeOS
- RELIABLE PERFORMANCE: Adapter is designed to bus power the portable USB-C monitor upto 12W; 100W USB-C PD Pass-Through w/20W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs
- VIDEO PERFORMANCE: Dual Monitor support up to 1 x 4K 30Hz & 1 x 1440p 60Hz through USB-C & HDMI with Intel 11th Gen DP 1.4 Alt Mode or higher Processors & Discreet GPU, Works w/DP 1.2 laptops supporting 2x 1080p; Single display on Apple M1/M2/M3 Pro/Max
- USB-C VIDEO OUTPUT: USB-C hub with downstream USB-C port (video + 10Gbps data) supports USB-C or desktop monitors; NOTE: Host system must support USB-C Power Delivery and DP alt mode. For a multi-monitor configuration, the computer must support MST
- DUAL MONITOR MULTIPORT ADAPTER: Multi monitor 4K UHD mini dock with USB-C DP Alt mode video output, HDMI 2.0b, or VGA, 2 x USB-A hub, 100W USB-C PD Pass-Through (80W laptop charging), Gigabit Ethernet; USB-C video port also supports USB 10Gbps data
Specifications:
| Product Details | |
| Item model number | DKM31C3HVCPD |
| Model | Usb-C Multiport Adapter With Usb-C Dp Alt Mode Video Output / 4k Hdmi 2.0 / Vga, Usb-C Dual Monitor Docking Station, 100w Pd Pass-Through, Usb Type C Mini Dock/Mst Adapter Hub - 2x Usb-A 10gbps, Gbe (Dkm31c3hvcpd) |
| Screen Mode Supported | 4k |
| Special Feature | Pass Through Charge, Fast Charging |
| Supported Resolutions | 3840.000216; 1920.00012; 1920.000108 |
| Sizing & Dimensions | |
| Height | 1.1 inches |
| Length | 5.7 inches |
| Product Dimensions | 5.7 x 3.3 x 1.1 inches |
| Weight | 5.9 ounces |
| Width | 3.3 inches |
| Technical Specifications | |
| Displayport Version | 1.4 |
| Hdmi Version | 2.0b |
| Number Of Rj-45 Ports | 1 |
| Number Of Usb 3.2 Gen 2 Type-A Ports | 2 |
| Usb Type-C Detail | Usb Type-C (24 Pin) Usb Power Delivery Only |
| Warranty | 3-Year Limited |
