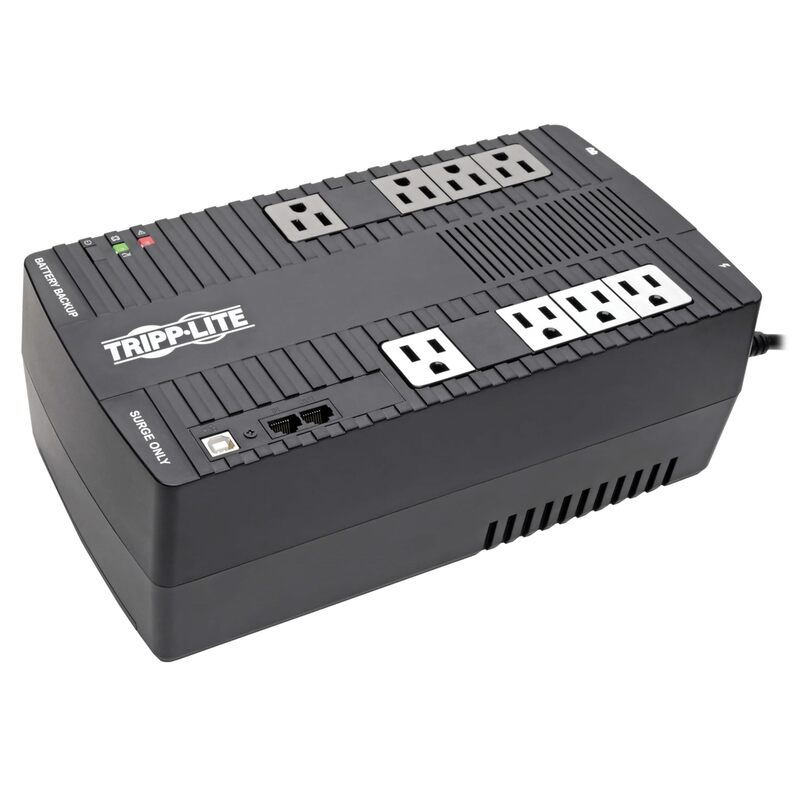

Tripp Lite Ultra-Compact Line Interactive UPS with AVR and Surge Protection, 8 Outlets
Customize
Tripp Lite's ultra-compact line interactive UPS family delivers reliable uninterruptible power and automatic voltage regulation to keep desktop PCs, network workstations and a wide range of professional and consumer electronics running during power issues. UPS circuits switch to battery backup within milliseconds while AVR power conditioning maintains smooth operation during brownouts and overvoltages. The units provide AC and dataline surge suppression and offer 8 outlets (4 battery-backed for critical equipment, 4 surge-only for peripherals). A USB communications port supports built-in power management and auto-shutdown for Windows and Mac OS X, with full monitoring and data-saving auto-shutdown options using Tripp Lite's PowerAlert software. Compact tower/desktop form factor includes a wall-mountable option and is covered by a 3-year warranty.
- 3 Year Limited Warranty and $100,000 Ultimate Lifetime Insurance for connected equipment
- USB port, TEL/DSL protection, Wall mountable, 98% efficient
- NEMA 5 15P input plug and 8 NEMA 5 15R outlets (4 battery supported outlets, 4 surge only outlets)
- Corrects brownouts and over voltages from 83 Volts to 147 Volts
- Line Interactive Battery Back Up: 550 Volt Ampere 120 Volt 300 Watts ultra compact desktop Uninterruptable Power Supply (UPS) with AVR
Specifications:
| Product Details | |
| Automatic Voltage Regulation | Yes |
| Backup Time Full Load (Minutes) | 2 |
| Backup Time Half Load (Minutes) | 5-1/2 |
| Battery Run Time | 2 Min |
| Charge Time (Approx) | 8 hr |
| Display Type | Led |
| Frequency Rating (Hz) | 60 |
| Maximum Operating Temperature (f) | 104 |
| Minimum Operating Temperature (f) | 32 |
| Model | Avr Series 120v 550va 300w 50/60hz Ultra-Compact Line-Interactive Ups With Usb Port |
| Number Of Phases | 1 |
| Output Wattage | 300 |
| Power Rating (Va) | 550 |
| Surge Rating | 316 Joule |
| Ups Type | Line Interactive |
| Voltage (Input) | 120 V |
| Voltage (Output) | 110 V; 115 V |
| Warranty | 3-Year Limited |
| Sizing & Dimensions | |
| Height | 4.75 inches |
| Length | 8.75 inches |
| Overall Depth (Inch) | 3.2800 |
| Product Dimensions | 12 x 6.4 x 4.3 inches |
| Weight | 14.25 pounds |
| Width | 13.5 inches |
| Technical Specifications | |
| Automatic Shutoff | No |
| Battery Cell Composition | Lead Acid |
| Cable Included | Yes |
| EMI/RFI Noise Filtration | Yes |
| Frequency Response | 50Hz to 20kHz |
