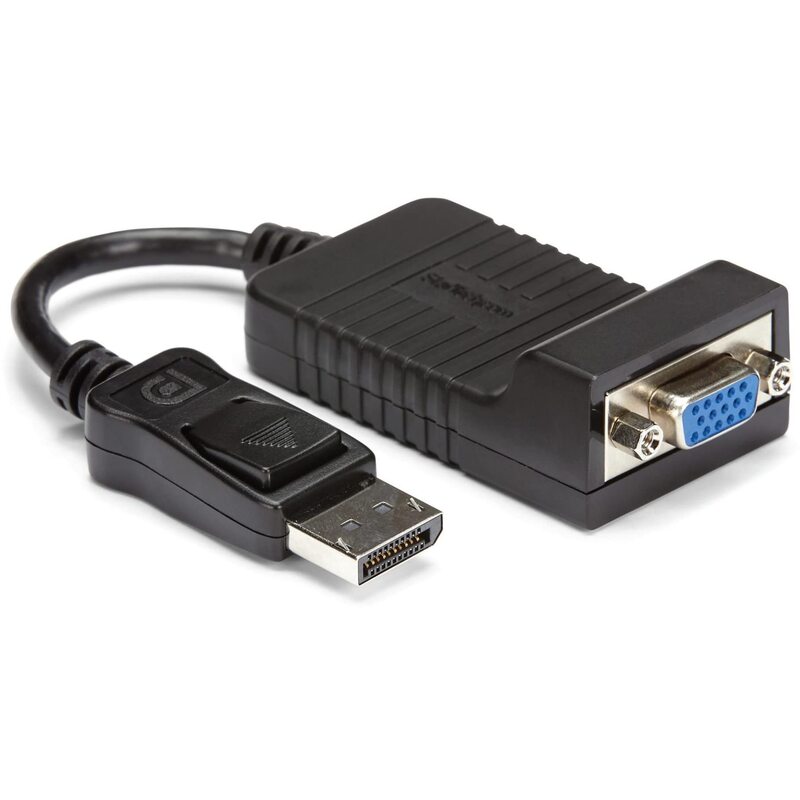

StarTech.com DisplayPort to VGA Adapter - Active DP to VGA Converter
Customize
The StarTech.com active DisplayPort to VGA adapter converts a DisplayPort output to a VGA display or projector without software or drivers, supporting Windows, Ubuntu and macOS. As an active digital-to-analog converter (DisplayPort 1.2 HBR2), it supports resolutions up to 2048x1280, 1920x1200 and 1920x1080 (1080p) at 60Hz, with EDID & DDC pass-through to ensure compatibility between source and display. The adapter includes a latching DisplayPort connector for a secure host connection, screw-lock VGA support to prevent accidental disconnection, EMI shielding for signal integrity, and a durable, compact housing for portability. Backed by StarTech.com support, it is suited for connecting legacy VGA monitors and projectors in office, travel and BYOD environments.
- EASY TO USE: With no software or drivers required, the DP to VGA adapter converter works with any OS including Windows, Ubuntu and macOS; DisplayPort male to VGA female video adapter dongle
- LATCHING DISPLAYPORT & SCREW LOCKING VGA: Latching DP connector ensures a solid host connection | Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection | EMI shielding protects from line noise/distortion
- CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect a VGA monitor or projector, or add a second display to your workstation using the DP to VGA display adapter; Durable housing makes it ideal for travel to & from office/home |Tested w/ VGA cables up to 25'
- COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- DISPLAYPORT TO VGA ADAPTER: DisplayPort 1.2 (HBR2) adapter connects a VGA display or projector supporting 2048x1280, 1920x1200 & 1920x1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display | 3" (8cm) attached cable
Specifications:
| Materials & Construction | |
| Material | N/A |
| Outer Material | N/A |
| Product Details | |
| Compatible Devices | Projector, Monitor, PC, Workstation, Computer, Docking Station, Video Device |
| Connector Type | DisplayPort/VGA |
| Connector Type On First End | Hd-15 - Female |
| Connector Type On Second End | Displayport 1.2 Digital Audio/Video - Male |
| Country of Origin | China |
| Item model number | DP2VGA |
| Packaged Quantity | 1 |
| Product Model | Dp2vga |
| Specific Uses For Product | DisplayPort-equipped devices, VGA monitors or projectors |
| Sizing & Dimensions | |
| Weight | 1.6 ounces |
| Technical Specifications | |
| Warranty | StarTech.com limited warranty / lifetime technical support |
