StarTech.com MSA Compliant SFP Fiber Transceiver Modules
MSA-compliant, hot-swappable StarTech.com SFP fiber transceivers provide reliable Ethernet connectivity over LC fiber with DDM and lifetime warranty.
Out of stock Out of stock
$42.99 - $86.71
$42.99 $42.99
$86.71 $86.71
Connector Type
Select Connector Type
Fiber Mode Supported
Select Fiber Mode Supported
Customize
Item Package Quantity
1 UOM Quantity
1 Available Quantity
13 GSA Compliant
No Item Package Quantity
1 UOM Quantity
1 Available Quantity
5 GSA Compliant
No Product Details

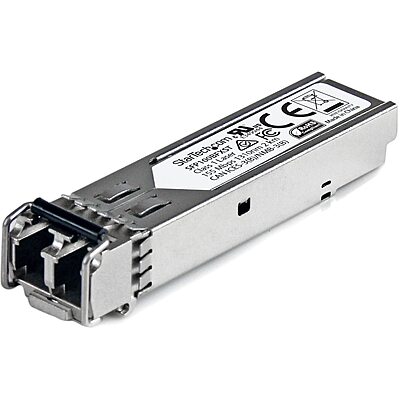

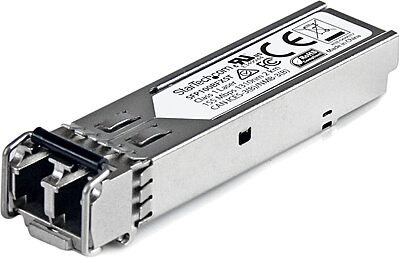

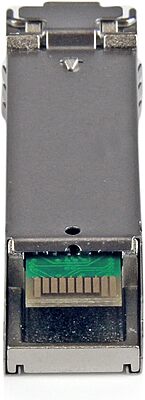

These StarTech.com SFP fiber transceiver modules are MSA-compliant and designed for optical network applications, offering hot-swappable installation and LC fiber connections. Equipped with DDM for monitoring, the modules support both multi-mode (MMF) and single-mode (SMF) fiber, cover Ethernet standards such as 100BASE-FX and 1000BASE-BX, and span distances up to 10 km with data rates up to 1.25 Gbps. Ideal for extending network connections to conference rooms, labs, lobbies and department workgroups, they provide durable fiber performance with minimal signal loss. StarTech.com SFPs are backed by a lifetime warranty and free lifetime technical support as noted in the variant data.
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules.
- TESTED FOR COMPATIBILITY: Hot-swappable in MSA compliant routers and switches; DDM support reports the transceiver's status to most SNMP network management tools.
- TECHNICAL SPECS: 100BASE-FX | 100Mbps | Multi Mode (MMF) | LC Connector | 1310nm | Digital Diagnostic Monitoring (DDM) | Distances up to 2km (1.2mi)
- MSA UNCODED SFP TRANSCEIVER: Designed, programmed and tested to work with compatible MSA compliant switches and routers to deliver dependable 100MbE connectivity
Specifications:
| Materials & Construction | |
| Contact Material | Aluminum |
| Product Details | |
| Circuit Type | 1-way |
| Contact Type | Lucent Connector |
| Country of Origin | China |
| Eco Label Standard | Rohs |
| Environmental Compliance | Waste Electrical And Electronic Equipment Directive (Weee); Restriction Of Hazardous Substances (Rohs); Registration, Evaluation, Authorization And Restriction Of Chemicals (Reach) |
| Ethernet Technology | Fast Ethernet |
| Global Trade Identification Number | 00065030872881 |
| International Protection Rating | IP54 |
| Item model number | SFP100BFXST |
| Model | Msa Uncoded Compatible Sfp Module, 100base-Fx, 100mbe Multi Mode (Mmf) Fiber Optic Transceiver, 100mb Ethernet Sfp, Lc Connector, 2km, 1310nm, Ddm, Mini Gbic Module, 100mbps - Lifetime Warranty (Sfp100bfxst) |
| Network Media Type | Optical Fiber |
| Number of Positions | 1 |
| Specification Met | REACH, WEEE, RoHS |
| Terminal | Msa |
| Wattage | 1 watts |
| Sizing & Dimensions | |
| Height | 0.5 inches |
| Length | 2.3 inches |
| Product Dimensions | 2.3 x 0.5 x 0.5 inches |
| Weight | 0.704 ounces |
| Width | 0.5 inches |
| Technical Specifications | |
| DDM | Yes |
| Maximum Data Transfer Rate | 155 Mbps |
| Power Consumption | Less than 1 Watt |
