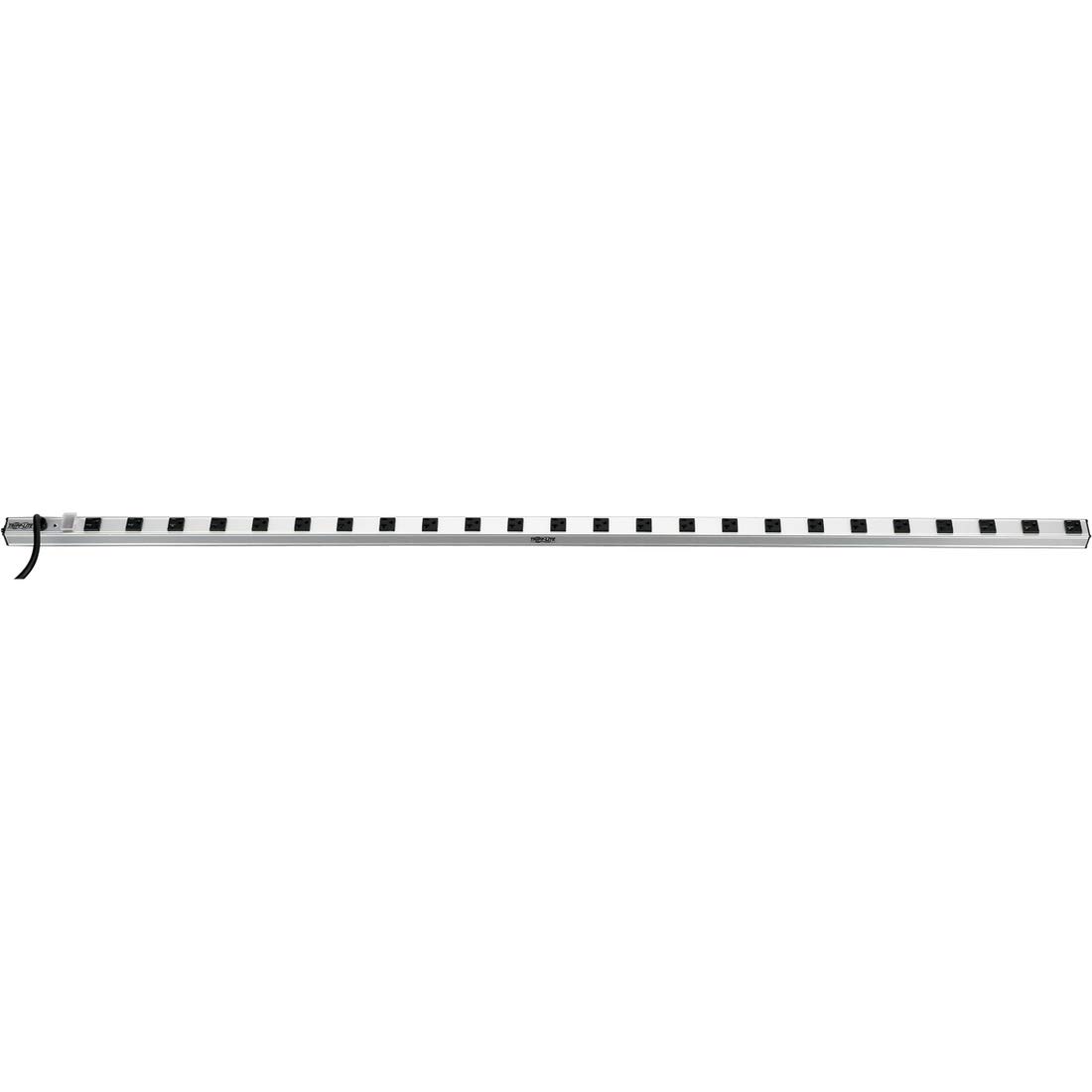

Tripp Lite 24 Outlet Bench & Cabinet Power Strip, 22 5-15R & 2 5-15/20R, 72 in. Length, 15ft Cord with 5-20P Plug (PS7224-20),Black
Customize
The TRIPP LITE PS7224-20 is a heavy-duty 72-inch mountable power strip designed for benches, cabinets and racks. It provides 20 A, 120 V power distribution through 24 output receptacles (22 NEMA 5-15R and 2 NEMA 5-20R) with 2.795 in center-to-center spacing to accommodate adapters. Constructed of extruded aluminum for rugged use in network, lab or industrial environments, the PS7224-20 includes a 15 ft AC cord with NEMA 5-20P input, a lighted power switch with locking transparent cover to prevent accidental shutoff, built-in 20-amp circuit protection, and mounting hardware for vertical or horizontal installation. Standards: cUL Listed; UL1363. Includes: 15 ft AC power cord, instruction manual, light switch with cover, mounting hardware. Ideal for rack, raceway, workbench and cabinet power distribution applications.
- 24 OUTLETS: This 120V multi outlet strip AC power strip includes 22 NEMA 5-15R and 2 NEMA 5-20R output receptacles. The 72-inch housing spaces the outlets 2.795 inches apart from center to center, allowing enough room for most AC adapters and transformers.
- LONG CORD – 15 FT: With a NEMA 5-20P, 15-ft. power cord, you don't have to install the PS7224-20 next to outlets you already have; it can be mounted across the room and deliver reliable service where you need it most. 15-ft cord acts like an extension cord allowing you to reach any outlet.
- 72 INCH VERTICAL & HORIZONTAL MOUNTING: The included mounting hardware allows the powerstrip to be installed wherever reliable, multi-outlet power distribution is required. With vertical or horizontal installation, a rugged housing and plenty of outlets, Tripp Lite's power strip outlet is ideal for point-of-sale and retail display applications.
- ALUMINUM HOUSING WITH PREMIUM SAFETY FEATURES: UL1363A/ cUL certified power strip with built-in, 20-amp circuit breaker prevents dangerous circuit overloads that could damage equipment. The extended power strip heavy duty features a lighted power switch with locking transparent cover to prevent accidental shutoffs.
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Aluminum |
| Outer Material | Aluminum |
| Product Details | |
| Amperage | 20.0 |
| Includes | 15 Ft Ac Power Cord; Instruction Manual; Light Switch With Cover; Mounting Hardware |
| Nema Configuration | 5-20p |
| Number Of Outlets | 24 |
| Outlet Spacing (Decimal Inch) | 2.7950 |
| Special Feature | Mountable |
| Standards | Cul Listed; Ul1363 |
| Voltage | 120v |
| Warranty | Limited Lifetime |
| Sizing & Dimensions | |
| Height | 2.75 inches |
| Length | 75.5 inches |
| Product Dimensions | 3.75 x 75.5 x 2.75 inches |
| Size | 72 inches |
| Weight | 1 pounds |
| Width | 3.75 inches |
| Technical Specifications | |
| Amperage | 20.0 |
| Voltage | 120v |
