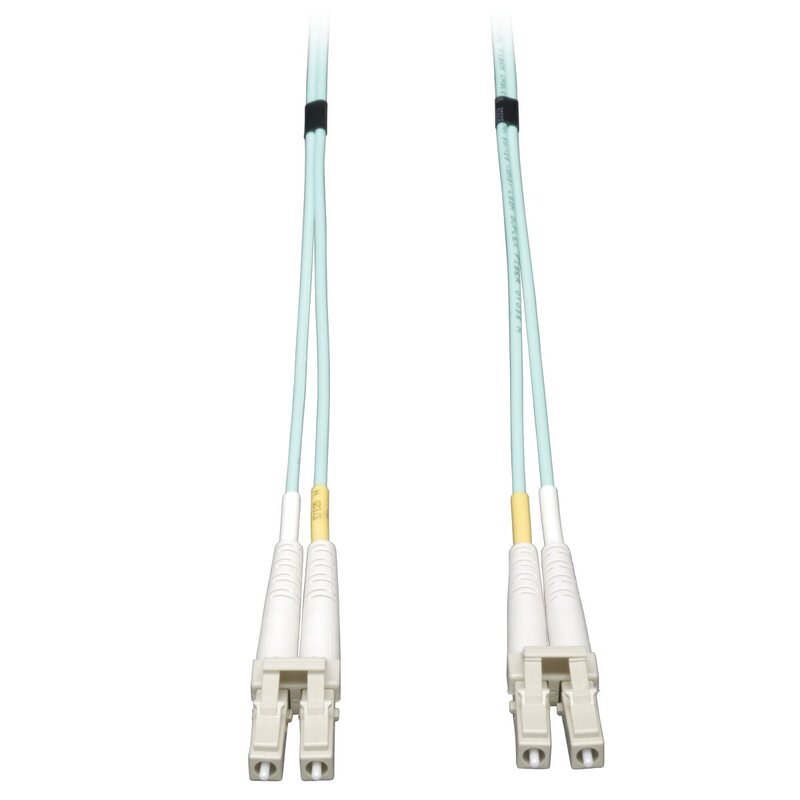

Tripp Lite N820-06M 6M 10Gb Duplex MMF OM3 50/125 LSZH Patch Cable LC/LC Aqua (20 feet)
Customize
Tripp Lite introduces it's new Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications. These new technology, 50/125um, LC/LC Fiber Optic cables, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. Tripp Lite warrants this product to be free from defects in material and workmanship for Life.
- IEEE 802.3ae and TIA LOMMF compliant
- Ideal for Fibre Channel (SAN) applications
- Backward compatible with legacy LAN's
- High-Speed, High-Bandwidth, Low-Cost
- Use with VCSEL and LED laser light sources
- 10gb Ethernet speed to 300 meters @850nm
- 6 Meter ( 20ft ) LC/LC
Specifications:
| Materials & Construction | |
| Color | Aqua |
| Material | Pvc |
| Outer Material | Pvc |
| Product Details | |
| Cable Type | Ethernet |
| Color | Aqua |
| Compatible Devices | Personal Computer |
| Compatible Phone Models | Lite |
| Connector Gender | Male-to-Male |
| Connector Type | RJ45 |
| Customer Package Type | sealed anti-static bag |
| Data Transfer Rate | 10 Gigabits Per Second |
| Fiber Type | Multimode |
| For Use With | Lan |
| Gender (End 1) | Male |
| Gender (End 2) | Male |
| Head Type | Lc/lc |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Is Discontinued By Manufacturer | No |
| Item model number | N820-06M |
| Jacket Color | Aqua |
| Jacket Material | Pvc |
| Model Name | 10Gb Duplex Multimode OM3 Fiber Patch Cable |
| Number of Items | 1 |
| Number of Pins | 2 |
| Psc Code | 6145 |
| Recommended Uses For Product | Data |
| Shape | Round |
| Special Feature | High Speed |
| Specification Met | No |
| UPC | 037332142047 081203303181 |
| Brand Name | Tripp Lite |
| Sizing & Dimensions | |
| Height | 9 inches |
| Length | 0.5 inches |
| Product Dimensions | 0.5 x 7 x 9 inches |
| Product Weight | 0.5000 |
| Size | 20 ft (6 m) |
| Weight | 1.6 ounces |
| Width | 7 inches |
| Technical Specifications | |
| Warranty | Lifetime limited warranty |
