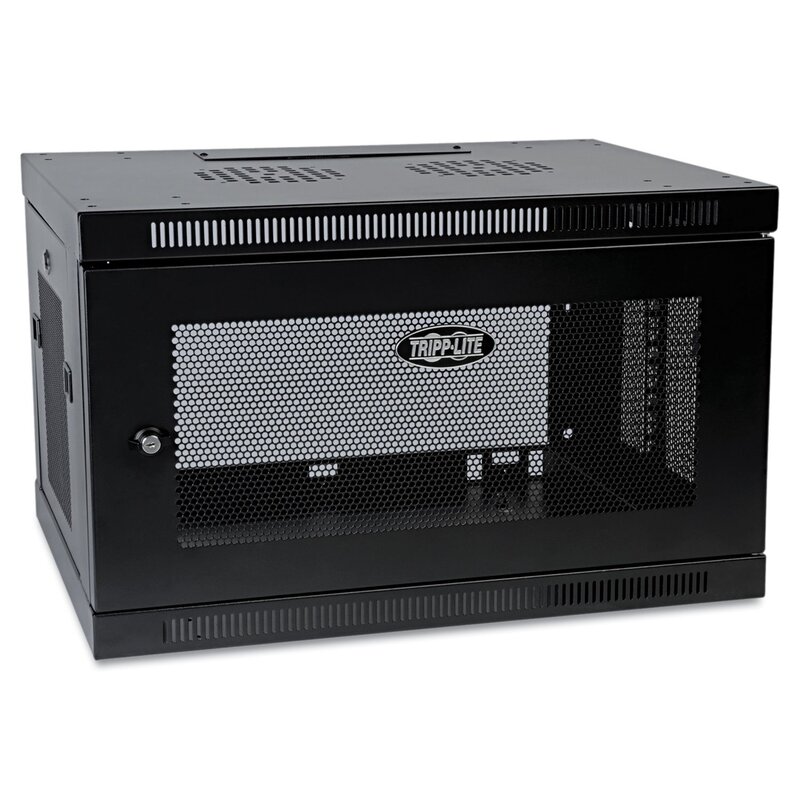

Tripp Lite 6U Wall Mount Rack Enclosure Server Cabinet, 16.5" Deep, Switch-Depth (SRW6U), Black
Tripp Lite SRW6U 6U wall-mount rack enclosure, 16.5" deep, locking steel cabinet with flow-through ventilation for servers and network gear, 200 lb capacity; includes mounting hardware and keys.
$386.54 $386.54
Customize
UOM Quantity
1 Available Quantity
5 Product Details
The Tripp Lite SRW6U SmartRack 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is a locking steel cabinet engineered to secure 6U of 19" rack equipment up to 16.5" deep. It features flow-through ventilation (vented at sides, front, top and bottom) to keep equipment cool, and can mount to a wall or roll on the floor with the optional SRCASTER. Maximum load capacity is 200 lb. Package contents include 12 M6 screws, 12 M6 cage nuts, 12 M6 cup washers, 12 12-24 screws, a removable mounting plate, 3 mounting plate screws and 2 keys. The cabinet is black, low-profile, and designed for switch-depth installations; a 5-year limited warranty is noted by some SKUs/configurations.
- Secures 6U of 19 in rack equipment up to 165 in deep
- Maximum load capacity of 200 pounds locking steel cabinet vented at sides, front, top and bottom
- Mounts to wall or rolls on floor with optional scatter dimension: 145 x 2363 x 175 inches
- SRW6U wall mount rack enclosure cabinet package Includes 12 M6 screws, 12 M6 cage nuts, 12 M6 cup washers, 12 to 24 screws, removable mounting plate, 3 mounting plate screws, 2 keys
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Compatible Devices | Server |
| Includes | Owners Manual; Hardware |
| Mountable | Yes |
| Series | SmartRack |
| Size | 6U |
| Sizing & Dimensions | |
| Height | 17.5 inches |
| Length | 26 inches |
| Product Dimensions | 17.5"D x 23.5"W x 14.5"H |
| Product Weight | 32 pounds |
| Weight | 32.5 pounds |
| Width | 21 inches |
| Technical Specifications | |
| Load Capacity (Lb.) | 200 |
| Warranty | 5-Year Limited Warranty |
