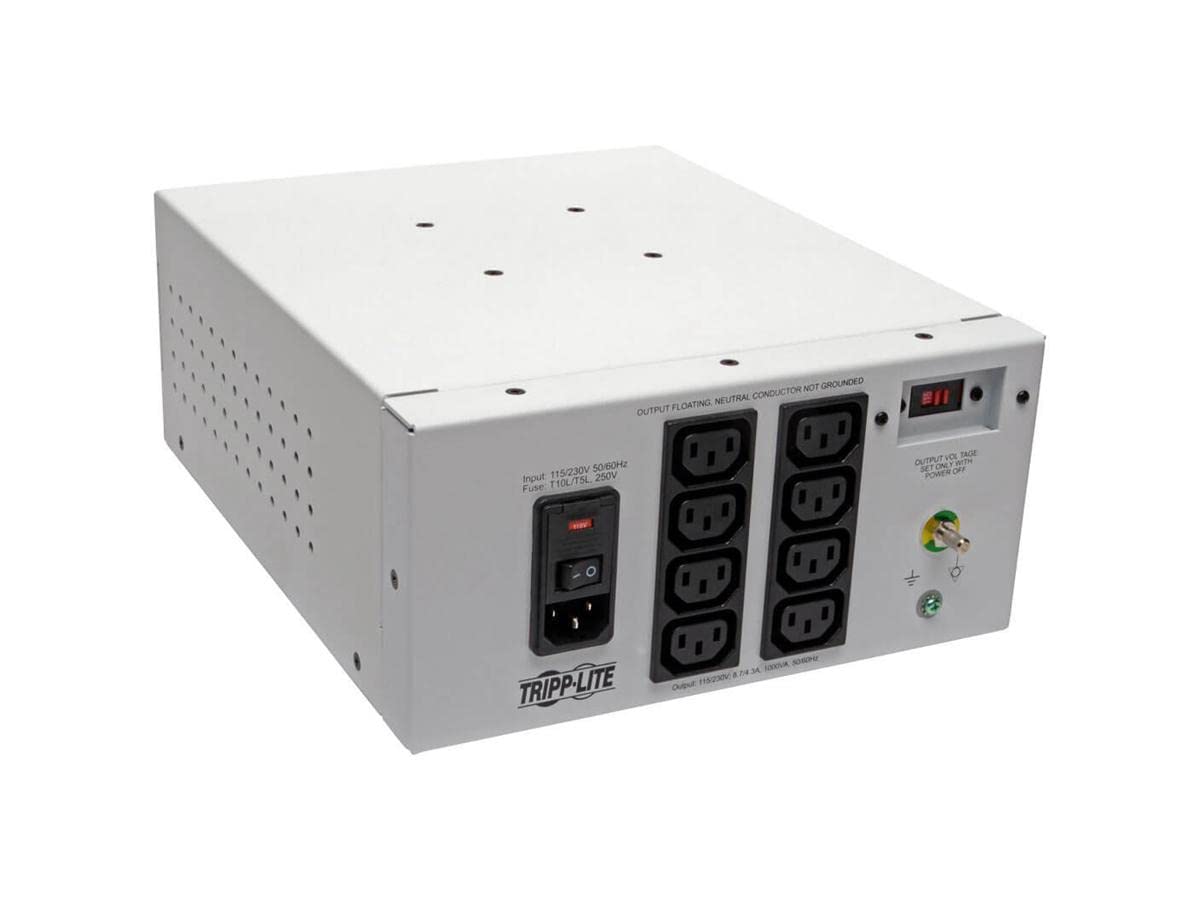

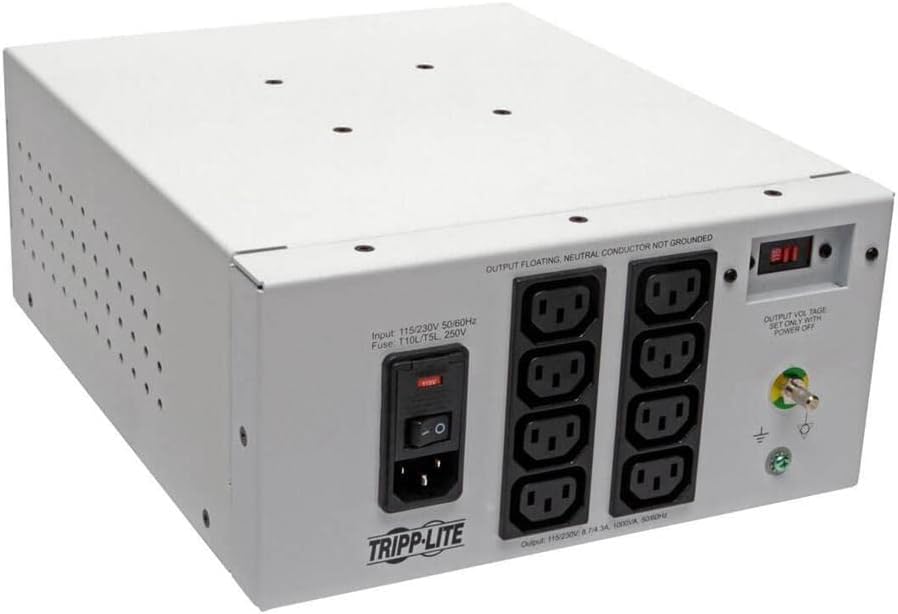

Tripp Lite IS1000HGDV Isolator Series Dual-Voltage 115/230V 1000W 60601-1 Medical-Grade Isolation Transformer, C14 Inlet
TRIPP LITE IS1000HGDV medical-grade isolation transformer, dual-voltage 115/230V, 1000W (1000 VA) output, C14 inlet with 8 C13 outlets, EMI/RFI noise filtration, metal cabinet, rack-mountable, white finish, 2-year limited warranty.
$1,559.00 $1,559.00
Customize
UOM Quantity
1 Available Quantity
0 GSA Compliant
No Product Details
Tripp Lite IS1000HGDV Isolator Series medical-grade isolation transformer designed for hospital, medical, industrial and network environments. Selectable dual-voltage operation (115/230V) delivers 1000 Watt / 1000 VA power capacity with a C14 inlet and eight C13 output outlets. Provides complete isolation from input AC mains power to protect sensitive equipment from EMI/RFI line noise and surges (65 dB noise filtration), includes fuses for 115 V and 230 V operation, overheat and overload protection, and convection-cooled metal cabinet construction. Compliant with IEC 60601-1 and other safety standards. Includes 2-year limited warranty. Product dimensions approx. 11.81 x 9.84 x 5.51 inches; item weight approx. 30.8 pounds.
- Min Operating Temperature: 32 øF| Max Operating Temperature: 104 øF| Humidity Range Operating: 5 - 95% (non-condensing)| Width: 9.8 in| Depth: 11.8 in| Height: 5.1 in| Weight: 30.2 lbs
- Total Harmonic Distortion (THD): 1 %| Included Accessories: Fuse (115 V operation), fuse (230 V operation)| Features: Metal cabinet, overheat protection, noise filtering, overcurrent protection, overload protection, output voltage adjustment, convection cooling, input voltage adjustment| Compliant Standards: NOM, RoHS, WEEE, IEC 60601-1:2005 Third Edition, CAN/CSA C22.2 No. 60601-1:14, ANSI/AAMI ES60601-1:2005 + A2 + A1| Service & Support: Limited warranty - 2 years
- Device Type: Transformer - external| Color: White| Input Voltage: AC 115/230 V| Input Voltage Range: AC 100 - 125 / 200 - 250 V| Frequency Provided: 50/60 Hz| Frequency Required: 50/60 Hz| Input Connectors: 1 x power IEC 60320 C14| Power Output Connectors Details: 8 x power IEC 60320 C13| Output Voltage: AC 115/230 V 50/60 Hz| Power Capacity: 1000 Watt / 1000 VA| Surge Suppression: Yes| Surge Energy Rating: 240 Joules| EMI/RFI Noise Filtration: 65 dB| Circuit Protection: Fuse
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Metal |
| Outer Material | Metal cabinet |
| Product Details | |
| Circuit Protection | Fuse |
| Compliant Standards | Nom, Rohs, Weee, Iec 60601-1:2005, Can/Csa C22.2 No. 60601-1:14, Ansi/Aami Es60601-1:2005 + A2 A1 |
| Eco-Conscious | Helps Save Energy |
| Emi/Rfi Noise Filtration | Yes |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Included Accessories | Fuse (115 V operation), fuse (230 V operation) |
| Model | Isolator Series Dual-Voltage 115/230v 1000w 60601-1 Medical-Grade Isolation Transformer, C14 Inlet, 8 C13 Outlets |
| Mounting Type | Rack Mount |
| Power Capacity | 1000 VA |
| Power Capacity (Watts) | 1000 Watt |
| Power Source | Corded Electric |
| Surge Rating | 240 Joule |
| Surge Suppression | Yes |
| Voltage (Output) | 115 V |
| Warranty | 2-Year Limited |
| Sizing & Dimensions | |
| Height | 5.51 inches |
| Length | 11.81 inches |
| Product Dimensions | 11.81 x 9.84 x 5.51 inches |
| Weight | 30.8 pounds |
| Width | 9.84 inches |
| Technical Specifications | |
| Circuit Protection | Fuse |
| EMI/RFI Noise Filtration | 65 dB |
| Included Accessories | Fuse (115 V operation), fuse (230 V operation) |
| Input Voltage | AC 115/230 V |
| Input Voltage Range | AC 100 - 125 / 200 - 250 V |
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Service & Support | Limited warranty - 2 years |
| Surge Energy Rating | 240 Joules |
| Total Harmonic Distortion (THD) | 1 % |
