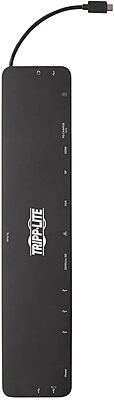

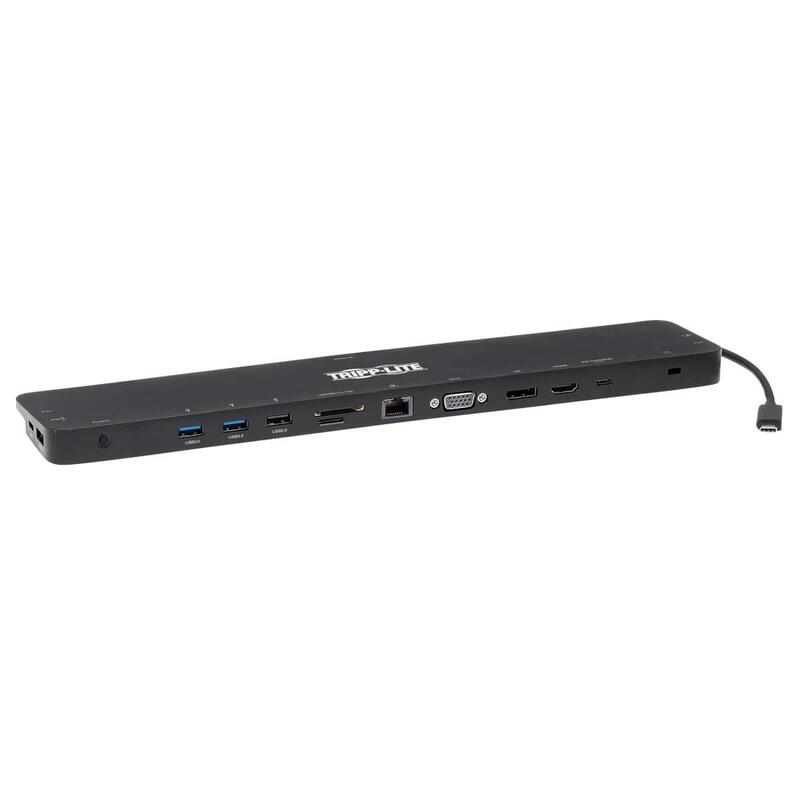

Tripp Lite USB-C Docking Station with Triple Display, 4K HDMI @ 30 Hz, DisplayPort, VGA, USB-A 3.2 Gen 1, Gigabit Ethernet Port, 100W PD Charging, Black Housing, 3-Year Warranty (U442-DOCK7D-B)

USB-C Docking Station Turns Your Laptop’s USB-C or Thunderbolt 3 Port into 14 New Ports This universal docking station with PD Charging expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC’s USB-C or Thunderbolt 3 port. Connect the dock using the included USB-C cable, and add 14 ports to your device: 4K HDMI 4K DisplayPort 1080p VGA RJ45 Gigabit Ethernet (2) USB 2. 0 (2) USB 3. 0 USB 3. 0 with BC 1. 2 USB-C PD Charging USB-C data 3. 5 mm mini stereo and SD and Micro SD card slots Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals By connecting the detachable USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers. Transmits Crystal-Clear 4K Video and Digital Audio to an HDMI or DisplayPort Monitor To send digital audio and Ultra High Definition video to a 4K-ready HDMI or DisplayPort television, projector or monitor, connect the corresponding port to the display using an HDMI or DP cable (such as Tripp Lite’s P569-Series HDMI or P580-Series DP cables, sold separately). The DisplayPort and HDMI ports support UHD video resolutions up to 4096 x 2160 (4K x 2K) at 30 Hz with 4: 4: 4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Extends or Mirrors High-Definition Video Across All 3 External Displays at the Same Time By connecting the detachable USB-C cable to a source that supports Single-Stream Transport (SST) or Multi-Stream Transport (MST), you may connect three monitors simultaneously. You can display the same image on all three monitors (SST), extend the desktop across them (MST), or combine them into one large monitor in video wall mode (MST). Maximum resolutions are 1920 x 1080 (@ 60 Hz) in SST mode and 1280 x 720 (@ 60 Hz) in MST mode. Note: Mac OS laptops or computers will only extend to one monitor. The others will be mirrored. 3 USB 3. 0 and 2 USB 2. 0 Ports Connect Keyboards, Thumb Drives and Other Peripherals Three USB 3. 0 ports accept flash drives, mice, keyboards, printers and other USB peripherals, transferring data back and forth at speeds up to 5 Gbps. One is also BC 1. 2-compliant, delivering up to 1. 5A of fast-charging power to mobile devices. Two other ports are USB 2. 0. PD Charging Port Charges the Connected MacBook, MacBook Pro or Other Device The USB-C 100W Power Delivery (PD) port provides power and charging to the connected PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone). Connect the device’s AC wall charger to the USB-C PD port, which supports power input up to 20V 5A (100W). That’s sufficient wattage to fast-charge, sync and power most high-capacity devices, including the MacBook Pro. This port, as well as the dock’s other USB-C port, can also be used for transferring data up to 5 Gbps. PD 3. 0 Fast Role Swap technology ensures all data and power connections remain stable if the wall charger becomes accidentally dislodged. Accesses a Wired Gigabit Ethernet Network The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (Tripp Lite N201-Series Cat6 cables sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers. Connects Speakers, Microphone and Other Audio Equipment The laptop docking station’s 3. 5 mm mini stereo jack is convenient for connecting speakers, headphones or a microphone to your workstation. You can listen to music or record the latest episode of your podcast. Thunderbolt 3 Dock Allows External Memory Access The memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet. You can access both slots at the same time. Detachable USB-C Cable Connects in Either Direction Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. Anti-Theft Lock Protects the USB-C Docking Station When You Aren’t Around Connect a user-supplied computer/laptop security cable lock (not included) to this port to protect your source device against theft. Ready to Use Right Out of the Package The plug-and-play USB-C dock is specifically designed for use with the MacBook Pro, Google Chromebook Pixel and other laptops, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no software or drivers. Its compact footprint fits easily into your desk space without taking up much valuable room.

• RELIABLE PRODUCT FULLY BACKED AND SUPPORTED: This product is covered by a 3-Year Limited Warranty and is supported by Tripp Lite's Chicago-based expert technical support team over phone and email.
• 4K VIDEO AND DIGITAL AUDIO: The DisplayPort and HDMI ports support UHD video resolutions up to 4096 x 2160 (4K x 2K) at 30 Hz with 4: 4: 4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Send digital audio and Ultra High Definition video to a 4K-ready HDMI or DisplayPort television, projector or monitor
• POWERFUL FEATURES: True 10/100/1000 Mbps Ethernet speeds for fast data transfers. Provide 20V 5A (100W) power output for fast-charging large-capacity mobile devices. Extend 720p video across HDMI, DisplayPort and VGA monitors simultaneously in MST mode. Send mirrored 1080p video across HDMI, DisplayPort and VGA monitors simultaneously in SST mode. Convert audio/video signals from sources supporting USB-C DisplayPort Alt Mode.
• BROAD COMPATIBILITY: Works with USB C and Thunderbolt 3 devices like Dell XPS & Precision, Mac, MacBook Pro, HP Spectre, Samsung Galaxy, Chromebook, Lenovo, ASUS, Acer Aspire. Allows you to connect external display, display video, access wired Ethernet, charge devices, and connect a microphone/headset, and save data. USB-C dock is specifically designed for use with the MacBook Pro, Google Chromebook Pixel and other laptops, tablets and devices equipped with a USB-C or Thunderbolt 3 port.
• CREATE A VERSATILE, PORTABLE WORKSTATION: Add 14 ports, including RJ45 Gigabit Ethernet, 4K HDMI, 4K DisplayPort, 1080p VGA, USB 2. 0, USB3. 0 and with BC1. 2, USB-C PD Charging, 3. 5mm mini stereo, SD and Mico SD card slots to your computer. Expand the potential of your tablet, laptop, MacBook, smartphone or PC’s USB-C or Thunderbolt 3 port.
