StarTech.com DisplayPort To DVI Adapter - Active - 1920x1200 - DP to DVI - DisplayPort Adapter Converter
Customize

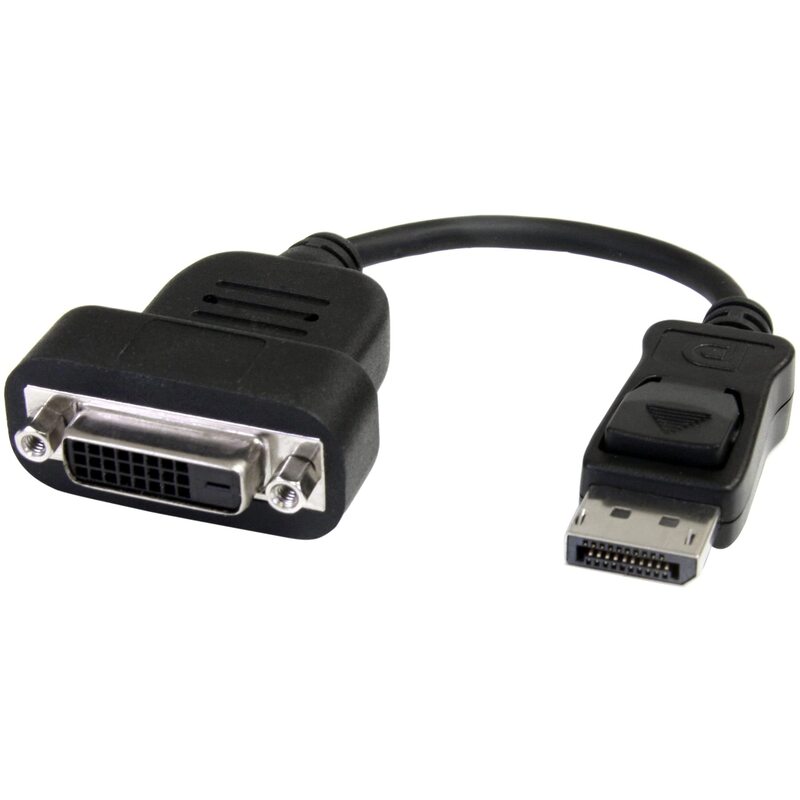

The StarTech.com DP2DVIS is an active DisplayPort 1.2 to DVI-D single-link adapter that lets you connect a DisplayPort video source (desktop PC, laptop, docking station, etc.) to a DVI-D monitor, projector or Apple Cinema Display HD. It provides active conversion for use with any DisplayPort output — ideal for systems that cannot output DP++ (e.g., some AMD Eyefinity configurations). The compact, black adapter includes a 5.7" (15 cm) attached cable, a latching DisplayPort connector to prevent accidental disconnects, and supports DVI screw-locking cables. Tested with DVI cables up to 25 ft, it supports resolutions up to 1920x1200 and 1080p at 60Hz with EDID/DDC pass-through for compatibility. The product is RoHS/WEEE/REACH compliant and is backed by StarTech.com support.
- EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works with any OS including Windows, Ubuntu and macOS; DisplayPort male to DVI female adapter dongle
- LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection | Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection
- CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector or add a second display to your workstation | Compact design |Tested w/ DVI cables up to 25ft | Supports Apple Cinema Display HD
- COMPATIBILITY: Active video converter supports DP or DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations | AMD Eyefinity Certified ideal for use with Radeon Pro Series Workstation Graphics
- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 (HBR2) to DVI-D single-link adapter connects a DVI display/projector supporting 1920x1200 & 1080p 60Hz | EDID/DDC pass-through ensures compatibility between source & display | 5.7" (15cm) attached cable
Specifications:
| Compatibility & Features | |
| Compatible Devices | Workstation, Desktop PC, Laptop, Small Form Factor Computers, Docking Station, Monitor, Projector |
| Recommended Uses For Product | Indoor/Outdoor |
| Special Feature | Compact |
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Cable Type | DVI |
| Connector Gender | Male-to-Female |
| Connector On First End Details | 1 X 25-Pin Dvi-D (Single-Link) Digital Video - Female |
| Connector On Second End Details | 1 X 20-Pin Displayport 1.2 Digital Audio/Video - Male |
| Connector Type | Displayport/Dvi-d |
| Connector Type On First End | Dvi-D (Single-Link) Digital Video - Female |
| Connector Type On Second End | Displayport 1.2 Digital Audio/Video - Male |
| Data Transfer Rate | 1000 Megabits Per Second |
| Eco Label Standard | Rohs; Weee; Reach |
| Number of Items | 1 |
| Shape | Round |
| Unit Count | 1 Count |
| Wattage | 50 watts |
| Sizing & Dimensions | |
| Length | 5.7 inches |
| Product Dimensions | 5.7 Inches |
| Weight | 1.69 ounces |
