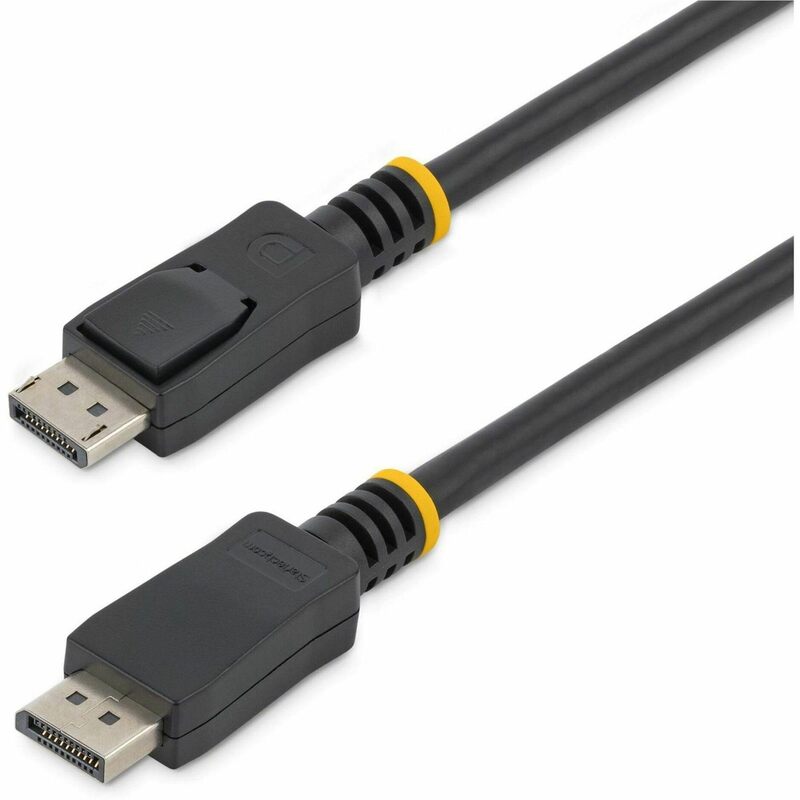

StarTech.com 10 ft DisplayPort 1.2 Cable with Latches - 4K x 2K (4096 x 2160) @ 60Hz - DPCP & HDCP
Customize
This DisplayPort cable provides a secure connection between your DisplayPort equipped devices and is capable of providing higher performance than either HDMI® or dual-link DVI. The DP cable supports high resolutions of up to 4K x 2K (4096 x 2160, 60Hz) with a maximum HBR2 bandwidth of 21.6Gbps, as well as optional audio support. The cable also supports Multi-Stream Transport (MST) for daisy chaining multiple monitors.The 10-foot cable is DisplayPort (VESA) certified to support DP 1.2 specifications and ensure a high-quality, reliable connection for all of your DisplayPort devices.The DISPLPORT10L is backed by a StarTech. with both HDCP and DPCP capability. Supports the DPCP (DisplayPort Content Protection) standard in addition to HDCP Designed and manufactured to DisplayPort 1.2 standards Support for High Bit Rate 2 (HBR2) bandwidth of up to 21.6Gbps DisplayPort (VESA) certified Backward compatible with DisplayPort 1.1 Molded latching connectors with strain relief High-resolution support up to 4K x 2K. Cable type: DisplayPort. Color: Black. Conductor: Copper. Connector on First End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male. Connector on Second End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male. Jacket Type: CMG. Material (Connector): Acrylonitrile Butadiene Styrene (ABS). Material (Jacket): Polyvinyl Chloride (PVC, #3). Packaged Quantity: 1 Each. Packing: Bagged. Product Line: StarTech.com. Shielding: Yes. Supported Resolution: 4096 x 2160. Warranty: Full Lifetime.
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- HIGH PERFORMANCE CABLE: This 10ft (3m) VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Copper, Acrylonitrile Butadiene Styrene (ABS), Polyvinyl Chloride (PVC) |
| Material (Connector) | Acrylonitrile Butadiene Styrene (Abs) |
| Material (Jacket) | Polyvinyl Chloride (Pvc, #3) |
| Material Family | Plastic |
| Outer Material | Polyvinyl Chloride (PVC) |
| Product Details | |
| Conductor | Copper |
| Connector Gender | Male-to-Male |
| Connector On First End Details | 1 X 20-Pin Displayport 1.2 Digital Audio/Video - Male |
| Connector On Second End Details | 1 X 20-Pin Displayport 1.2 Digital Audio/Video - Male |
| Connector Type | DisplayPort |
| Connector Type On First End | Displayport 1.2 Digital Audio/Video - Male |
| Connector Type On Second End | Displayport 1.2 Digital Audio/Video - Male |
| Cord Length | 10 ft |
| Device Supported | Monitor, Audio/Video Device, Notebook, Workstation, Projector |
| Model | 10 Ft Displayport 1.2 Cable With Latches - 4k X 2k (4096 X 2160) @ 60hz - Dpcp & Hdcp - Male To Male Dp Video Monitor Cable (Displport10l) |
| Number of Pins | 20 |
| Packaged Quantity | 1 Each |
| Packing | Bagged |
| Product Line | Startech.com |
| Shielding | Yes |
| Warranty | Full Lifetime |
| Sizing & Dimensions | |
| Height | 0.4 inches |
| Length | 120.1 inches |
| Product Dimensions | 120.1 x 0.8 x 0.4 inches |
| Size | 10 ft |
| Weight | 7.4 ounces |
| Width | 0.8 inches |
| Technical Specifications | |
| Customer Package Type | Standard Packaging |
| Data Transfer Rate | 21.6 Gigabits Per Second |
| Gauge | 28.0 |
| Indoor/Outdoor Usage | Indoor |
| Number of Items | 1 |
| Recommended Uses For Product | transferring data |
| Shape | Round |
| Special Feature | Braided |
| Supported Resolution | 4096 x 2160 |
