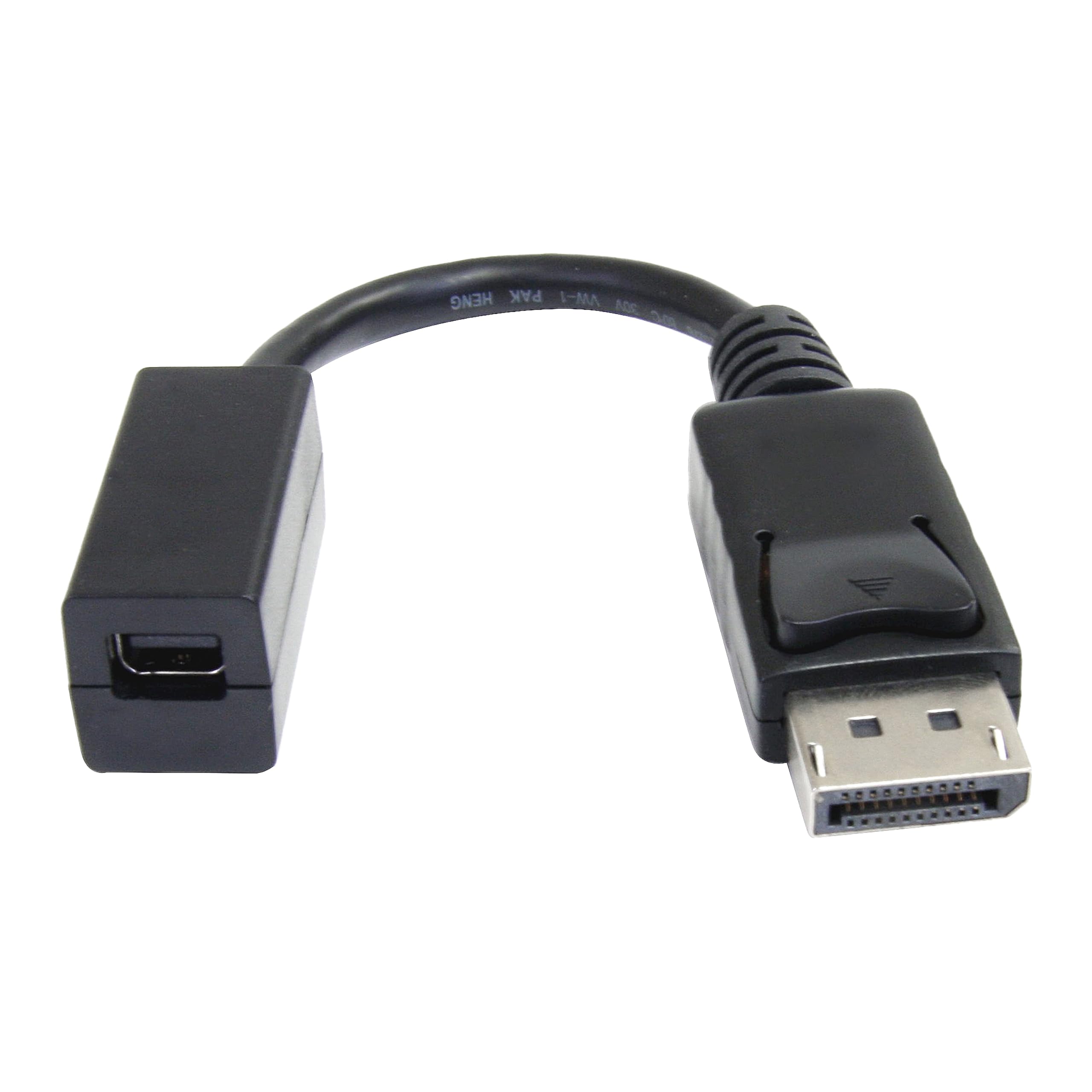

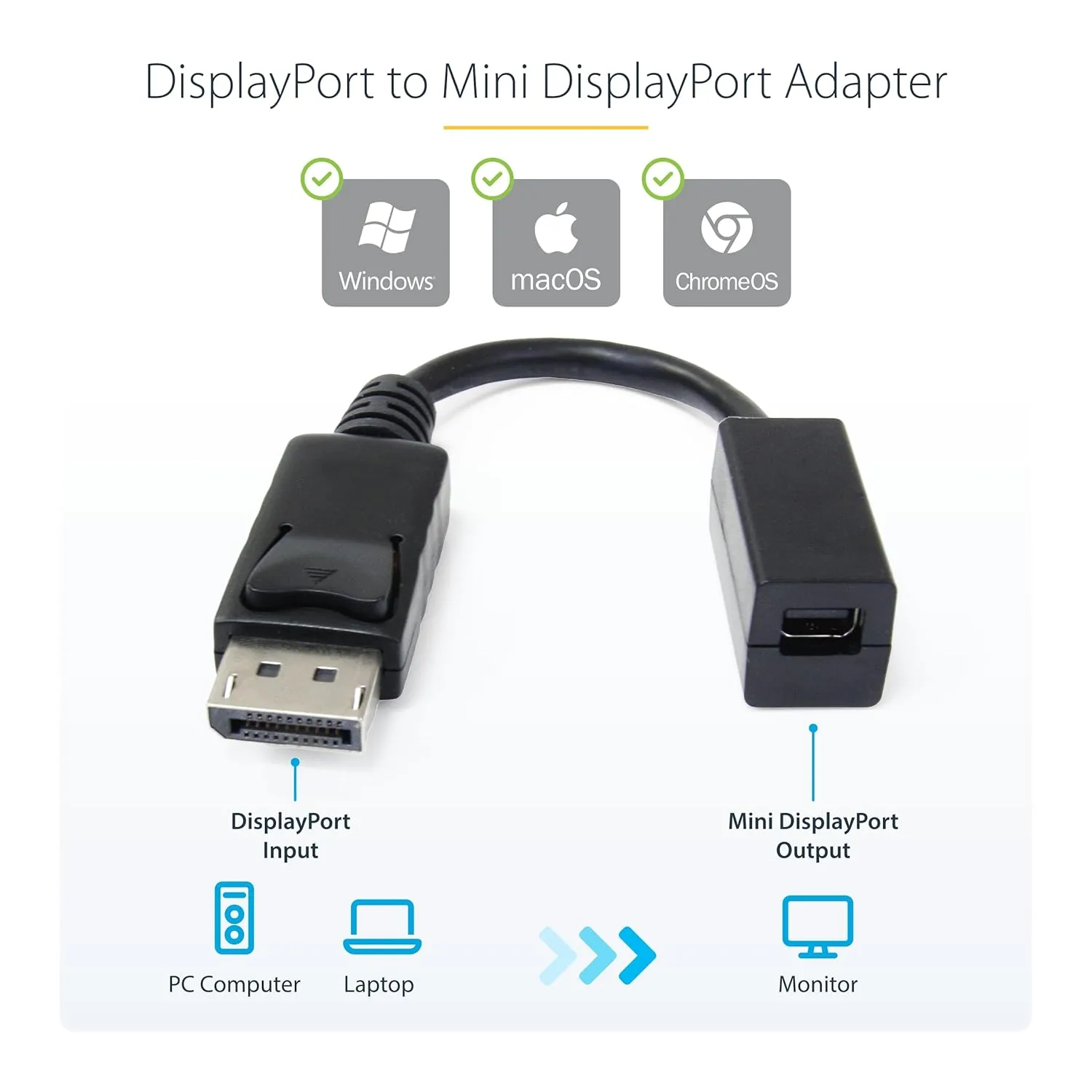

StarTech.com 6in (15cm) DisplayPort to Mini DisplayPort Adapter, 4K Video, DP to mDP Converter (Not compatible w/Thunderbolt)
Customize
NOTE: This DisplayPort to MiniDisplayPort adapter is not compatible with TB monitors like the Apple A1407 Thunderbolt Display; The adapter cannot be used to connect Thunderbolt accessories like docks or audio interfaces to a DP port~ RELIABLE DESIGN: DisplayPort to Mini DisplayPort adapter cable has durable ABS connectors with flexible PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Aluminium foil & Braid provide higher quality video and audio; Backwards compatible with DP 1.1 APPLICATIONS: DisplayPort to Mini DisplayPort cable is ideal for home/office/boardroom/classroom works with laptop with standard DP port and workstations with FirePro S9000/7000, W8100/7100 graphic cards; Use with UHD/4K monitor/projector/display DISPLAYPORT TO MINI DISPLAYPORT 1.2 CABLE: 6in (15 cm) DP male to mDP female extension cable; 4K (3840x2400p 60Hz) x 2K (2560x1600p 120Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST); GTC for precise audio channel timing and 3D Stereo, brand name: StarTech.com , cable type: DisplayPort; Mini DisplayPort , color: Black , Conductor: Copper , Connector on First End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male , Connector on Second End Details: 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Female , Connector Type on First End: DisplayPort 1.2 Digital Audio/Video - Male , Connector Type on Second End: Mini DisplayPort 1.2 Digital Audio/Video - Female , cord length: 1/2 ft , Device Supported: Monitor; Notebook; Audio/Video Device; Computer , Eco Label Standard: RoHS; REACH; WEEE , Gender (End 1): Male , Gender (End 2): Female , Jacket Type: CMG , manufacturer: STARTECH.COM , Material (Jacket): Polyvinyl Chloride (PVC, #3) , Material (Shielding): Polyvinyl Chloride (PVC, #3) , material family: Plastic , model: DP2MDPMF6IN , Packaged Quantity: 1 Each , Product Line: StarTech.com , Supported Resolution: 2560.00016 , Warranty: Limited Lifetime
- Molded latching connectors with strain relief
- Designed and manufactured to DisplayPort revision 1.2 standards

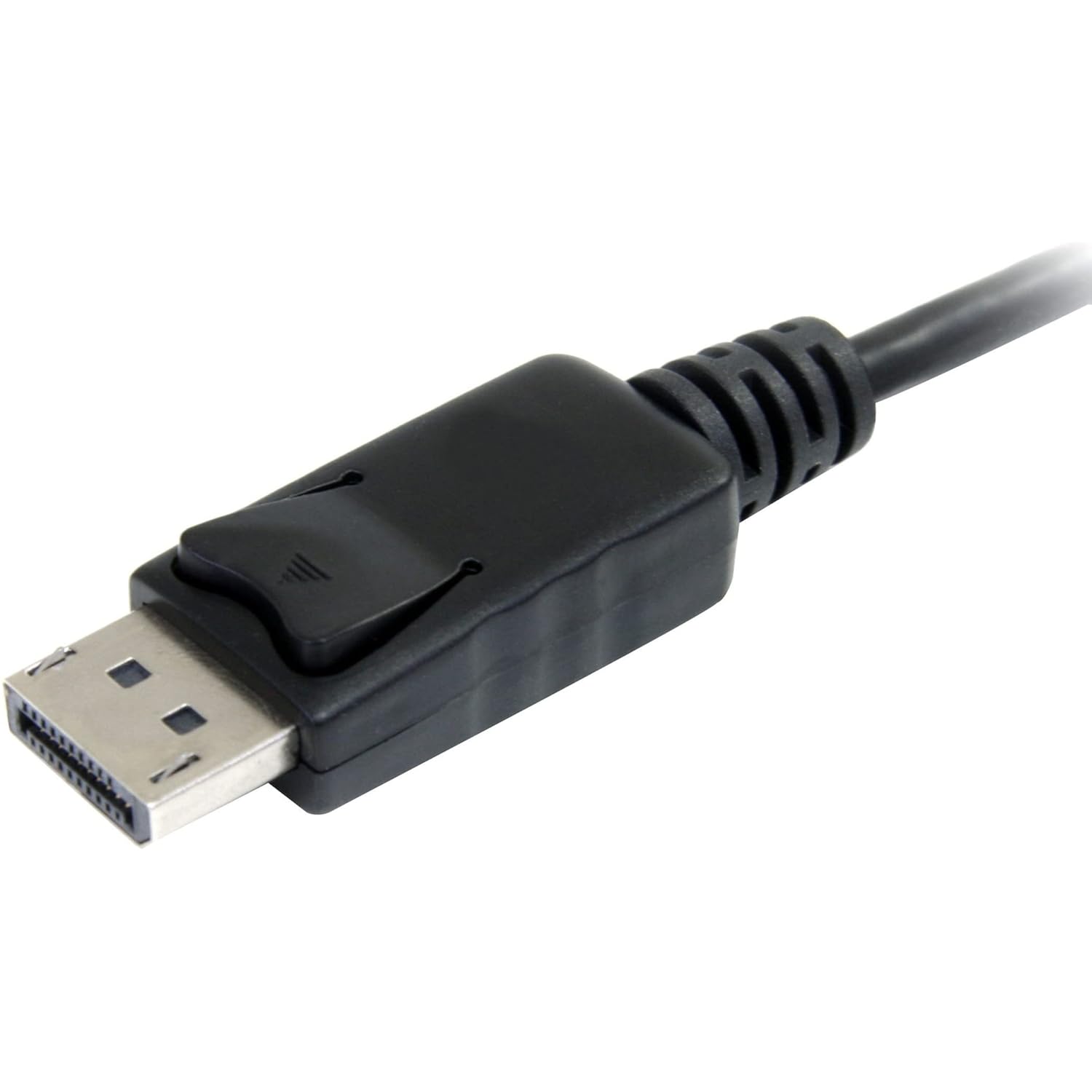

- Molded latching connector secures the cable against accidental disconnection

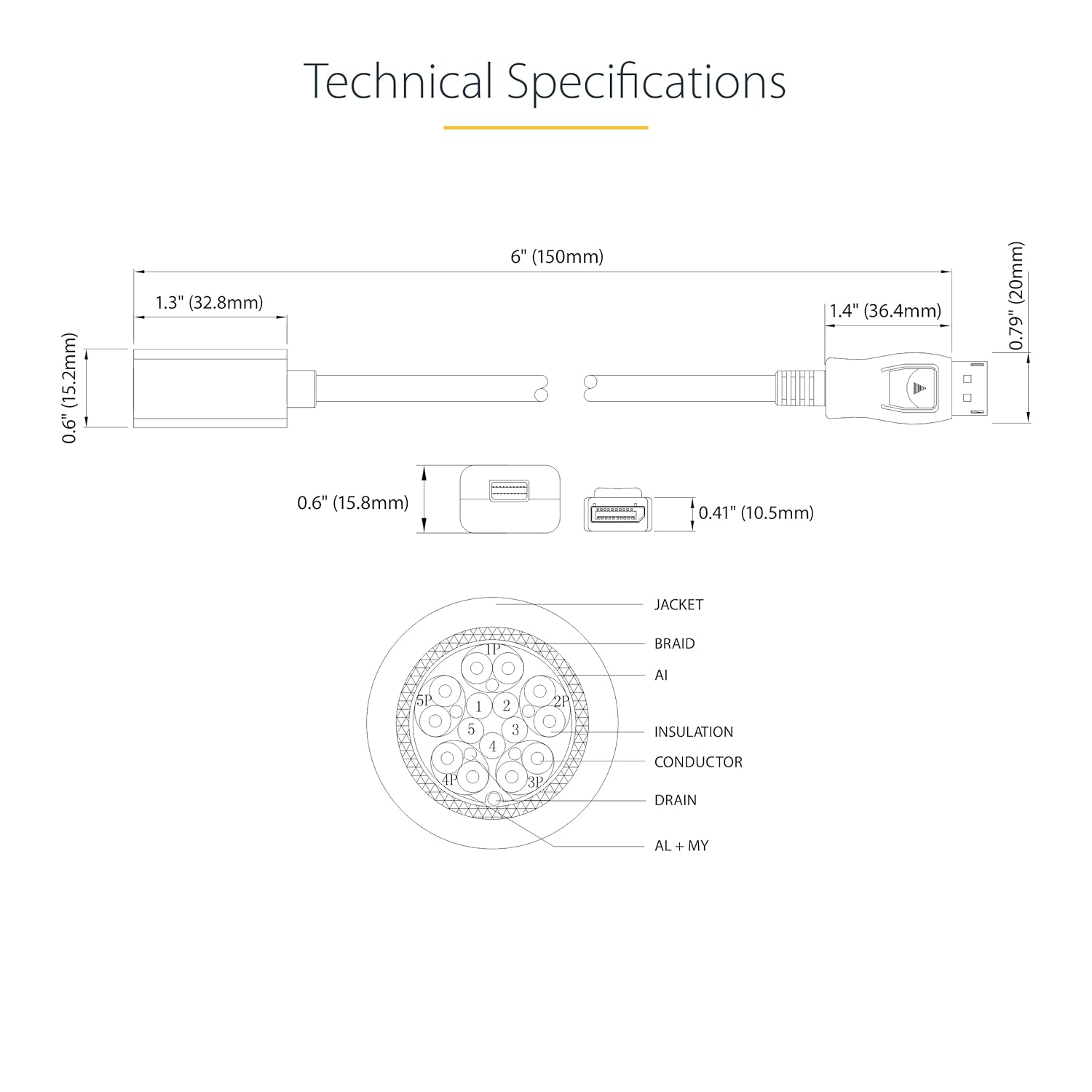

- SPECS: 6 inches (15 cm); Color: Black; DP v1.2; Standard DP Male to Mini-DP Female Converter; 32 AWG PVC cable jacket, ABS connector shell; Shield: Aluminium foil with Braid; Protocols: HBR 2, MST, GTC

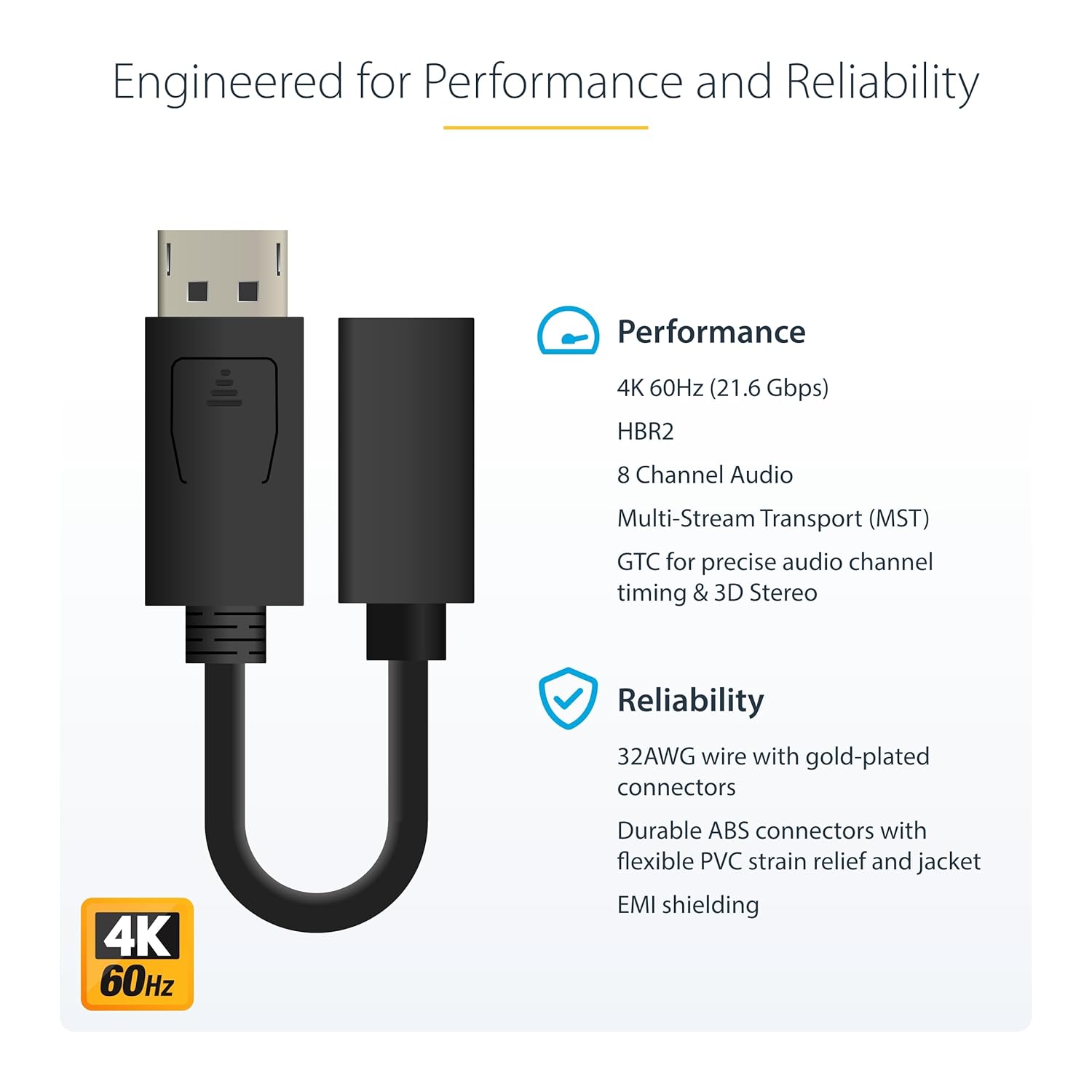

- QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Aluminium foil & Braid provide higher quality video and audio; Backwards compatible with DP 1.1
- RELIABLE DESIGN: DisplayPort to Mini DisplayPort adapter cable has durable ABS connectors with flexible PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding
- DISPLAYPORT TO MINI DISPLAYPORT 1.2 CABLE: DP male to mDP female extension cable; 4K (3840x2400p 60Hz) x 2K (2560x1600p 120Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST); GTC for precise audio channel timing and 3D Stereo

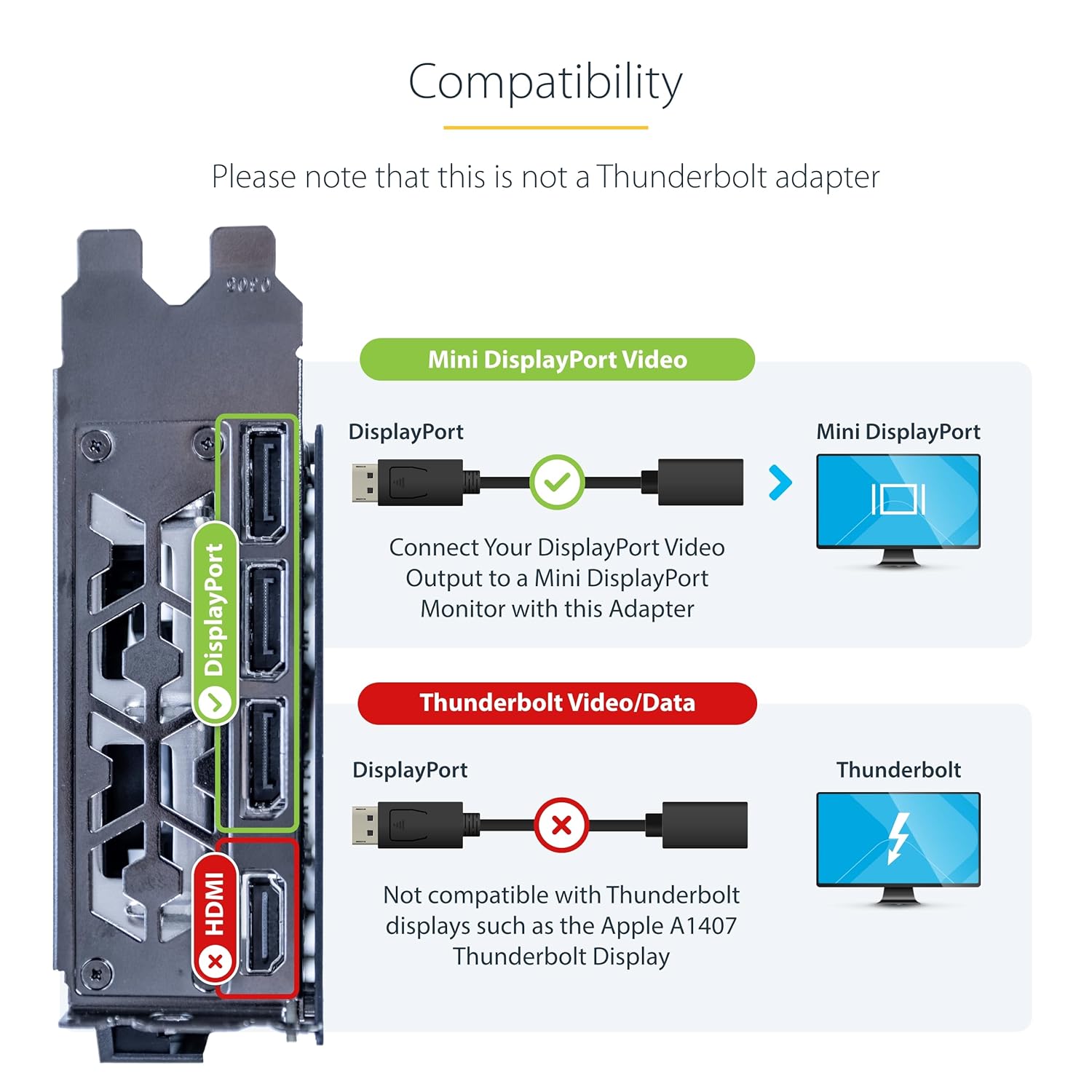

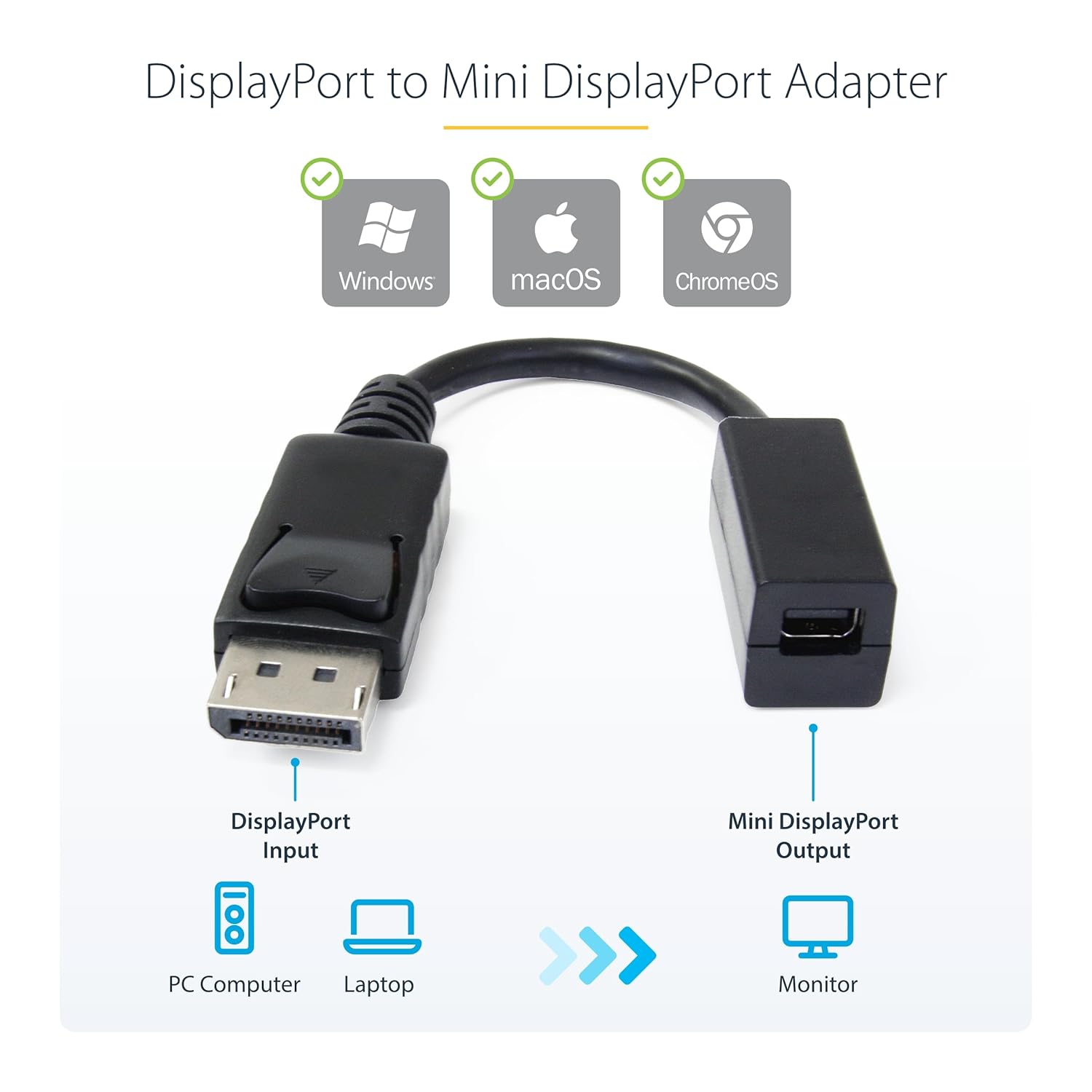

- COMPATIBILITY: This adapter is not compatible with Thunderbolt monitors (e.g., Apple A1407 Thunderbolt Display) and is not suitable for use with iMac in Target Display Mode; Designed to connect DisplayPort computers to Mini DisplayPort monitors
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Polyvinyl Chloride (Pvc, #3) |
| Outer Material | Polyvinyl Chloride (Pvc, #3) |
| Product Details | |
| Cable Type | DisplayPort; Mini Displayport |
| Conductor | Copper |
| Connector On First End Details | 1 X 20-Pin Displayport 1.2 Digital Audio/Video - Male |
| Connector On Second End Details | 1 X 20-Pin Mini Displayport 1.2 Digital Audio/Video - Female |
| Connector Type On First End | Displayport 1.2 Digital Audio/Video - Male |
| Connector Type On Second End | Mini Displayport 1.2 Digital Audio/Video - Female |
| Cord Length | 1/2 ft |
| Device Supported | Monitor; Notebook; Audio/Video Device; Computer |
| Eco Label Standard | Rohs; Reach; Weee |
| Jacket Type | Cmg |
| Material (Jacket) | Polyvinyl Chloride (Pvc, #3) |
| Material (Shielding) | Polyvinyl Chloride (Pvc, #3) |
| Material Family | Plastic |
| Packaged Quantity | 1 Each |
| Product Line | StarTech.com |
| Special Feature | Braided |
| Supported Resolution | 2560.00016 |
| Warranty | Limited Lifetime |
| Sizing & Dimensions | |
| Height | 1.36 inches |
| Length | 15 inches |
| Product Dimensions | 15 x 1.99 x 1.36 inches |
| Weight | 0.49 ounces |
| Width | 1.99 inches |
| Technical Specifications | |
| Bandwidth & Protocols | 21.6 Gbps, HBR2, MST, GTC, 8Ch Audio |
| Cable Gauge | 32AWG |
| Packaged Quantity | 1 Each |
| Shielding | Aluminium foil & Braid |
