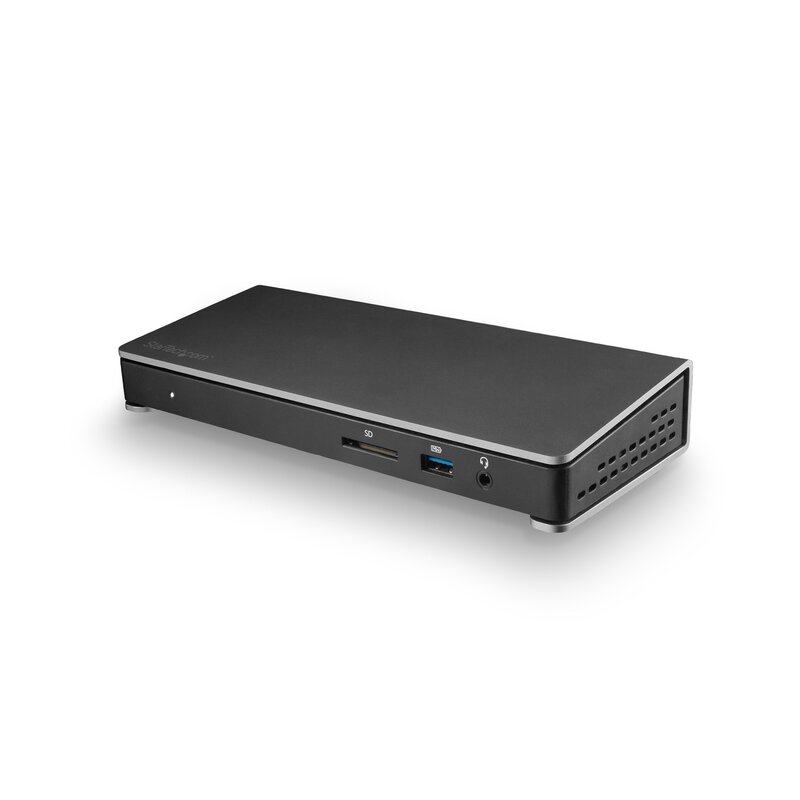

StarTech.com USB-C Dual Monitor Docking Station for MacBook Pro/Air M1 M2 M3 M4 & Windows, Universal 4K 60Hz USB C DP Thunderbolt Dock, 85W Laptop Charging
Customize
Easily transform your TB3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality Thunderbolt 3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader.Create a Dual-4K 60Hz WorkstationThis dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display.Connect your laptop to:- 1 x 4K monitor via the DP Port- 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)OR- 1 x 5K monitor via the DP and TB3 USB-C portsEasy Installation & DeploymentSimply connect the TB3 port replicator to your laptop with the included TB3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters.Plenty of Ports Including SD Card ReaderThe TB3 docking station offers six USB type 3.0 ports, including a Fast-Charge port and USB-C port, an GbE port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations.85W Power DeliveryUsing a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.TB3DOCK2DPPD is backed by a StarTech. Operating Temperature: 0°C to 40°C (32°F to 104°F)
- OUR ADVANTAGE: INCLUDES POWER ADAPTER THAT SIMULTANEOUSLY PROVIDES 85W OF POWER DELIVERY TO CHARGE THE LAPTOP & FULL POWER TO ALL PORTS; CONNECTIVITY TOOLS W/NETWORK MAC ADDRESS PASS-THROUGH, WINDOWS LAYOUT AND MORE OUR ADVANTAGE: Includes power adapter that simultaneously provides 85W of Power Delivery to charge the laptop & full power to all ports; Connectivity Tools w/Network MAC Address Pass-Through, Windows Layout and more
- FLEXIBLE THUNDERBOLT 3 PORT: DOWNSTREAM TB3 PORT SUPPORTS 3 MODES OF OPERATION: 2ND MONITOR FOR DUAL 4K 60HZ VIDEO UTILIZING DIRECT GPU PERFORMANCE WITH NO SOFTWARE OR COMPRESSION, DAISY CHAIN UP TO 5 TB3 PERIPHERALS, OR CONNECT USB TYPE-C ACCESSORIES FLEXIBLE THUNDERBOLT 3 PORT: Downstream TB3 port supports 3 modes of operation: 2nd monitor for dual 4K 60Hz video utilizing direct GPU performance with no software or compression, daisy chain up to 5 TB3 peripherals, or connect USB Type-C accessories
- MORE USB DEVICE PORTS: TB3 DOCKING STATION HAS A 6-PORT USB 3.1 GEN 1 5GBPS HUB (5X USB-A, 1X USB-C PORTS) W/ 1X BC 1.2 (1.5A) FAST CHARGING ALWAYS-ON PORT THAT WORKS WITH OR WITHOUT LAPTOP CONNECTED; INCLUDED 6FT (1.8M) TB3 HOST CABLE MORE USB DEVICE PORTS: TB3 docking station has a 6-port USB 3.1 Gen 1 5Gbps Hub (5x USB-A, 1x USB-C ports) w/ 1x BC 1.2 (1.5A) fast charging always-on port that works with or without laptop connected; Included 6ft (1.8m) TB3 host cable
- COMPATIBILITY: THIS DOCKING STATION IS COMPATIBLE WITH WINDOWS, MACOS, AND UBUNTU; SUPPORTS THUNDERBOLT OR USB4 LAPTOPS; DUAL DISPLAY ON M1, M2, M3 MAX/PRO, M4 PRO/MAX MACBOOKS, AND SINGLE DISPLAY ON BASE M-SERIES MACBOOKS AND IPAD PRO M1 & LATER COMPATIBILITY: This docking station is compatible with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later
- HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: EASY DRIVERLESS SETUP; THUNDERBOLT 3 (40GBPS); DUAL 4K 60HZ (DP + TB3) VIDEO OUTPUT OR SINGLE MONITOR 5K 30HZ; 5X USB HUB; SD 4.0 CARD READER, GIGABIT ETHERNET, HEADSET PORT; 85W PD HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: Easy Driverless setup; Thunderbolt 3 (40Gbps); Dual 4K 60Hz (DP + TB3) video output or single monitor 5K 30Hz; 5x USB Hub; SD 4.0 card reader, Gigabit Ethernet, headset port; 85W PD
Specifications:
| Materials & Construction | |
| Color | Space Gray |
| Product Details | |
| Hardware Interface | USB, DisplayPort, USB 3.0, Thunderbolt |
| Hardware Platform | Apple MacBook Pro (15 & 16), Apple MacBook Air, HP Notebooks |
| Number Of Ports | 13 |
| Operating System | Windows® 8, 8.1, 10, 11 macOS 10.12 - 10.15, 11.0, 12.0, 13.0, 14.0 |
| Power Source | AC Adapter Included |
| Series | Dual 4K 60Hz Monitor Thunderbolt 3 Dock with 6x USB 3.0 Ports |
| Total USB Ports | 7 |
| Voltage | 20 Volts |
| Warranty | 3-Year Limited |
| Wattage | 180 |
| Sizing & Dimensions | |
| Height | 1.3 inches |
| Length | 8.7 inches |
| Product Dimensions | 8.7"L x 3.4"W x 1.3"H |
| Size | 8.7"L x 3.4"W x 1.3"H |
| Weight | 1.1 pounds |
| Width | 3.4 inches |
| Technical Specifications | |
| Input Voltage | 2.4E+2 Volts (AC) |
| Memory Card Reader | Yes |
| Number Of Displays Supported | 2 |
| Number Of Rj-45 Ports | 1 |
| Operating System Supported | Windows 8.1; Windows 8; Windows 10; Windows 11; Mac OS X 10.12 Sierra |
| Screen Mode Supported | 4k |
| Supported Resolutions | 4096.000216; 3840.000216 |
| Usb Type-C Detail | 1 X Usb Type-C (24 Pin) Usb 3.0 (5gbps), 2 X Thunderbolt™ 3 Usb-C (24-Pin) (40gbps) |
