Mount-It! Recessed TV Wall Mount, Articulating Full Motion in-Wall TV Bracket for Flush Installation, 27 Inch Extended Arm Fits Screen Sizes 32-70 inch, Up to 175 lbs
Customize
Set up this Mount-It! MI-381 Recessed TV Mount in your space to create the entertainment center of your dreams. The wall mount supports TVs up to 70in and weighing up to 175 lb. The recessed design provides a clean look that wonT expose wiring. Supports 32in-70in Inch Screen Sizes Weight Capacity: 175 lbs Tilt: up 5 deg., down 15 deg. Extension: 26.8in from wall All Mounting Hardware Included, adjustable height: No , brand name: Mount-It! , color: Black , depth: 5 in. , dimensions: 18 in. X 29 in. X 5 in. , Gas Spring Tensioning: No , height: 18 in. , manufacturer: MOUNT-IT! , material family: Metal , maximum monitor size: 70 in. , Motion Type: Tilts , primary material: Steel , style name: MI-381 Recessed TV Wall Mount , Swivel Motion: 180 degrees , Tilt Motion: 15 degrees , weight capacity: 175 lb , width: 29 in.
- Flush mount recessed TV mount includes cable management clips to neatly conceal all wires within the articulating arms. When the in-wall TV mount is closed and recessed within the wall it will appear as if there is no mount on the wall and your TV is floating on the wall.
- This full motion recessed TV mount comes with four standard single gang knock outs inside the recessed cavity, two on top and two on the bottom. You can install your recessed power outlet in one and a low voltage scoop in the other knock out.
- WILL IT FIT MY TV This recessed wall mount comes with the industry standard VESA bolting patterns of 200x200, 300x200, 300x300, 400x200, 400x400, 600x200, 600x400. These patterns covers TVs with screen size of 32, 37, 40, 42, 47, 50, 55, 60, 65, 70 inches. If your TV has bolting pattern of less than or equal to 24 inches wide and less than or equal to 16 inches tall, this mount will fit your TV. Weight capacity is 175 lbs.

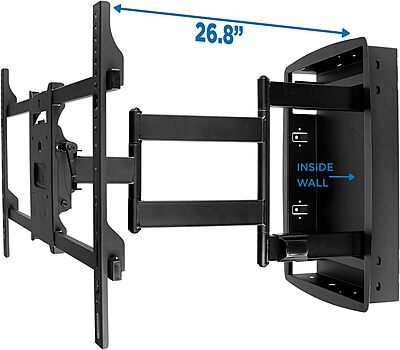

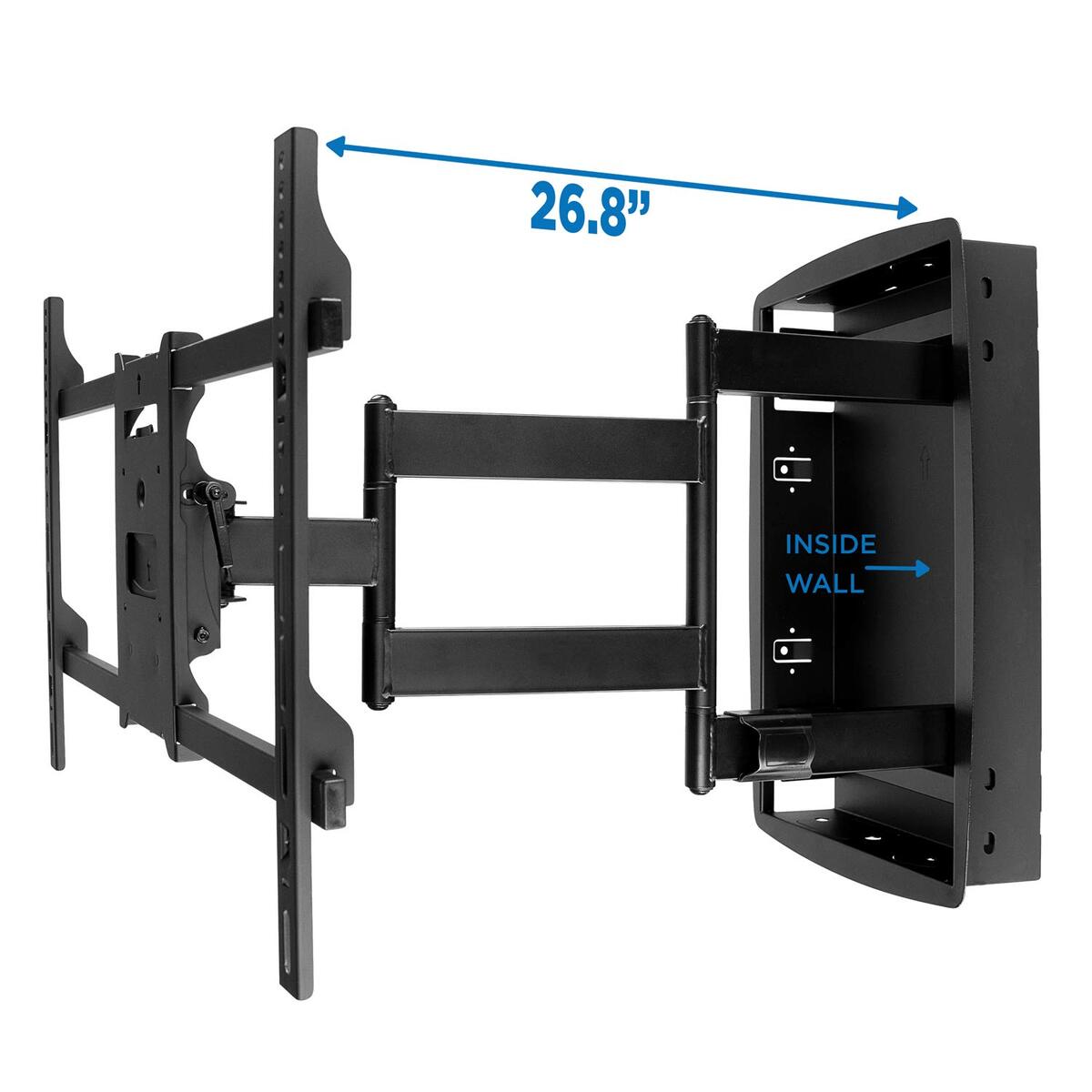

- IN-WALL TV WALL MOUNT is designed to fit between 16 inch studs. Hidden TV mount installs inside the wall between two 16 inch on-center wood studs for a full recessed installation. It can extend up to 26.8 inches from the wall. It can swivel 90 degrees left and right and tilt down 15 degrees and up 5 degrees. 5 degrees of post-installation level adjustment ensures the mount is horizontally level.
- RECESSED TV MOUNT gives you the functionality of a full motion articulating TV mount with the flush look of a zero-gap TV mount bracket. Enjoy the ability to extend your TV away from the wall and swivel it left and right to optimize viewing angles and push it all the way flush to display your TV as an art piece. Works like a flush TV mount without the hassle of managing cables.
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Alloy Steel |
| Material Family | Metal |
| Primary Material | Steel |
| Product Details | |
| Adjustable Height | No |
| Color | Black |
| Depth | 5 In. |
| Dimensions | 18 In. X 29 In. X 5 In. |
| Gas Spring Tensioning | No |
| Item model number | MI-381 |
| Material Family | Metal |
| Maximum Compatible Size | 70 Inches |
| Maximum Monitor Size | 70 In. |
| Maximum Tilt Angle | 15 Degrees |
| Minimum Compatible Size | 32 Inches |
| Motion Type | Tilts |
| Mounting Type | Wall Mount |
| Movement Type | Swivel, Tilt, Articulating |
| Package Dimensions | 29 x 18.4 x 5.3 inches |
| Primary Material | Steel |
| Style | MI-381 Recessed TV Wall Mount |
| Style Name | Mi-381 Recessed Tv Wall Mount |
| Swivel Motion | 180 Degrees |
| Tilt Motion | 15 Degrees |
| Weight Capacity | 175 lb |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 29 inches |
| Product Dimensions | 18 In. X 29 In. X 5 In. |
| Size | 18 In. X 29 In. X 5 In. |
| Weight | 36.6 pounds |
| Width | 18 inches |
| Technical Specifications | |
| Compatible Devices | Television |
| Extension | 26.8in from wall |
| Maximum Compatible Size | 70 Inches |
| Minimum Compatible Size | 32 Inches |
| Movement Type | Swivel, Tilt, Articulating |
| Swivel Motion | 180 Degrees |
| Tilt Motion | 15 Degrees |
| VESA Compatibility | 200x200, 300x200, 300x300, 400x200, 400x400, 600x200, 600x400 |
