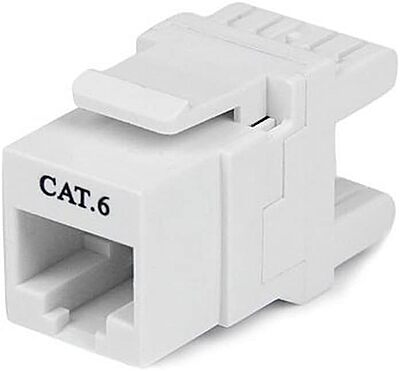

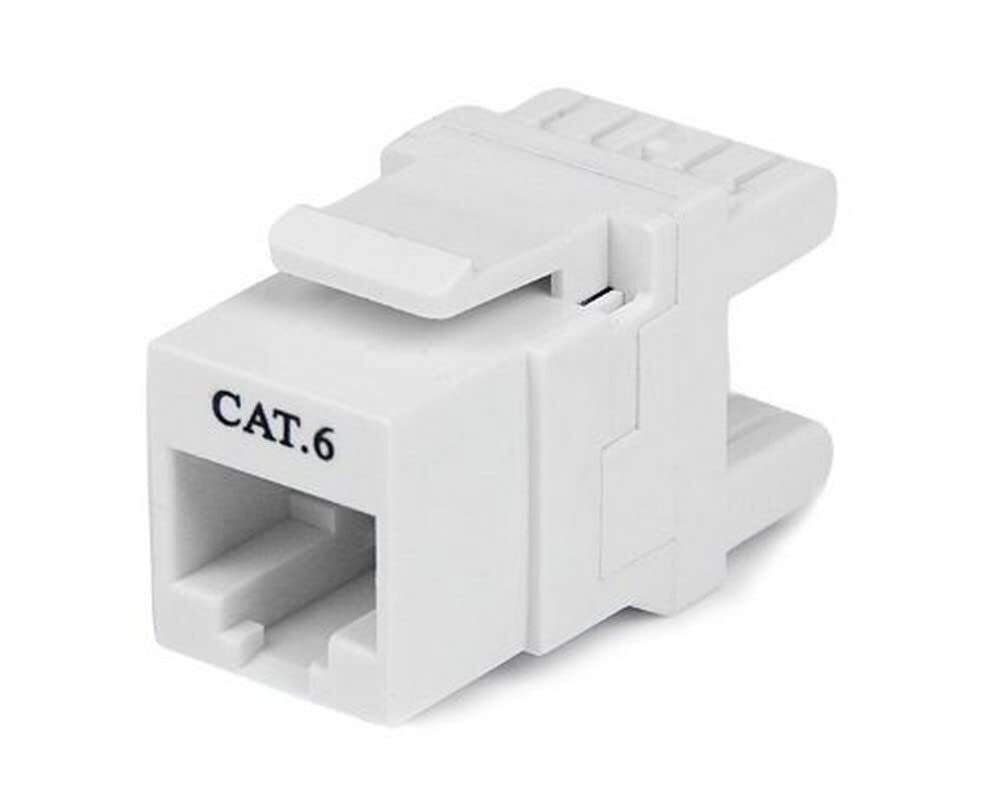

StarTech.com 180 Degree Cat 6 Keystone Jack - RJ45 Ethernet Cat6 Wall Jack White - 110 Type - Keystone Jack 180 Degree 110 UTP (C6KEY110SWH)
StarTech.com Cat6 180° keystone jack (C6KEY110SWH) — white RJ45 female, 110-type. Snap-in design for wall plates and patch panels; compact 180° termination, RoHS/REACH compliant, 2-year limited warranty.
$11.99 $11.99
Customize
UOM Quantity
1 Available Quantity
34 Product Details
The C6KEY110SWH is a compact StarTech.com Cat6 180° keystone jack designed for quick deployment in wall plates, patch panels and surface connection boxes. It meets and exceeds ISO/IEC 11801 and ANSI/TIA-568-C.2 requirements. The jack uses dual-type IDC connectors terminated with a 110-type punch tool and is color-coded for both T568A and T568B installations. Constructed from high-impact, flame-retardant plastic with a flexible 8-pin insert for added durability, it includes a 110 block, supports Cat6 Ethernet cable, and is RoHS/WEEE/REACH compliant. Packaged quantity: 1. Warranty: 2-Year Limited.
- White
- Cat 6 RJ45 Wall Jack
- Solid one-piece plastic construction with a flexible 8-pin insert for added durability
- Terminates Cat6 cables at a 180° angle, reducing the keystone profile within the wall jack, wall plate or patch panel
- Terminate Cat6 cables at a 180 degree angle for a more compact keystone jack installation
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| 110 Block | Yes |
| Cable Type | Ethernet |
| Color | White |
| Compatible Devices | Routers, Switches, Computers, Servers, Network Devices |
| Connector Details | 1 X Rj-45 Network Female |
| Connector Gender | Female |
| Connector Type | RJ45 |
| Country of Origin | China |
| Eco Label Standard | Rohs; Weee; Reach |
| Ethernet cable category | Cat 6 |
| Global Trade Identification Number | 00065030848206 |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Item model number | C6KEY110SWH |
| Maximum Voltage | 2 Volts (DC) |
| Number of Items | 1 |
| Number of Pins | 8 |
| Outer Material | Plastic |
| Packaged Quantity | 1 |
| Product Material | Plastic |
| Recommended Uses For Product | wall plates, patch panels |
| Special Feature | Compact |
| Specification Met | No |
| Unit Count | 1 Count |
| UPC | 065030848206 |
| Warranty | 2-Year Limited |
| Sizing & Dimensions | |
| Height | 0.7500 inches |
| Length | 5.0000 inches |
| Product Dimensions | 4.92 x 3.54 x 0.87 inches |
| Weight | 0.246 ounces |
| Width | 3.5000 inches |
| Technical Specifications | |
| Maximum Voltage | 2 Volts (DC) |
| Warranty | 2-Year Limited |
