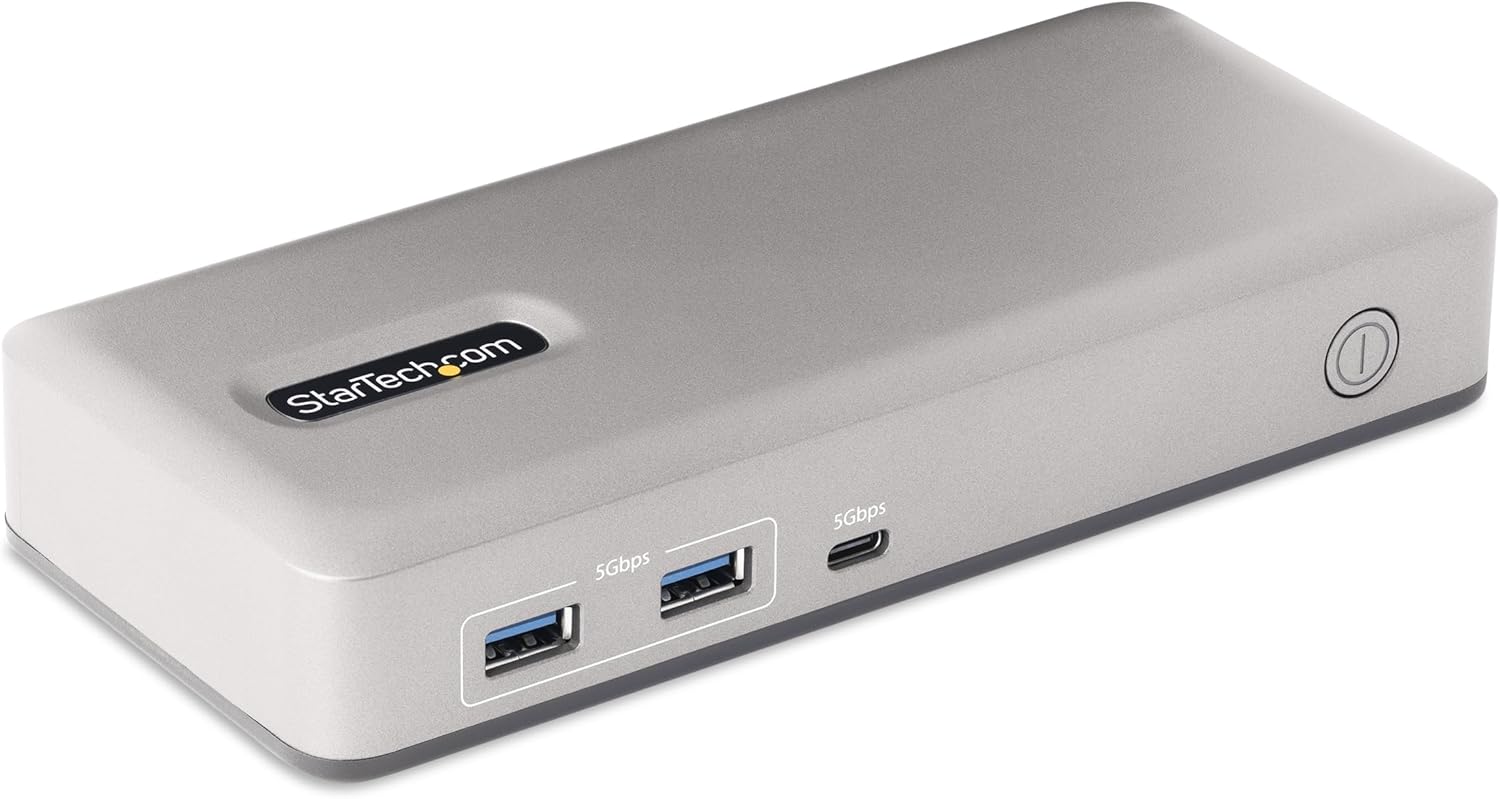

StarTech.com Dual-Monitor USB-C Docking Station, DisplayPort & HDMI or VGA, Multi Monitor Dock up to 4K 60Hz - USB 3.2/3.1 (5Gbps) Type-C Dock - 7X USB Hub, 85W PD, Windows & ChromeOS, TAA
Customize
85W POWER DELIVERY 3.0: The port replicator includes a fully spec-d power adapter that provides full power to laptop and peripheral devices unlike consumer docks that use SMART power; Front-facing power button to turn docking station on/off. FLEXIBLE MULTIMONITOR OUTPUT: Provides video versatility with DisplayPort (DP) 1.4, HDMI 2.0b and VGA display outputs; Choose between single or dual video; For dual video pair DP as the primary output with HDMI or VGA as the secondary output. HIGH-PERFORMANCE VIDEO: Supports up to 2x 2560x1440 60Hz through DP & HDMI ports or single 4K 60Hz (Intel 11th Gen or higher with DP 1.4 Alt Mode & MST req. for max performance); 1080p VGA; MST utilizes laptop GPU for uncompressed video & low CPU usage. DEVICE SECURITY: Includes USB-IF Certified 3.3ft (1m) Locking USB-C host cable; Locking USB-C host port; Mounting holes for optional bracket; K-slot and Nano Slot; USB Event Monitoring & Windows Layout utilities. 7-PORT USB HUB: The dock features a wide variety of extra USB ports for device connectivity; 2x USB 3.2 Type-A (5Gbps) front facing ports, 1x USB 3.2 5Gbps Type-C front facing port, 4x USB 2.0 Type-A HID rear facing ports; Features Driverless installation. Compatible with USB-C and Thunderbolt 3/4 computers. DisplayPort 1.4, HDMI 2.0b, VGA 15-Pin D-Sub. Environmental Compliance: RoHS, WEEE. Warranty: 3-Year Limited.

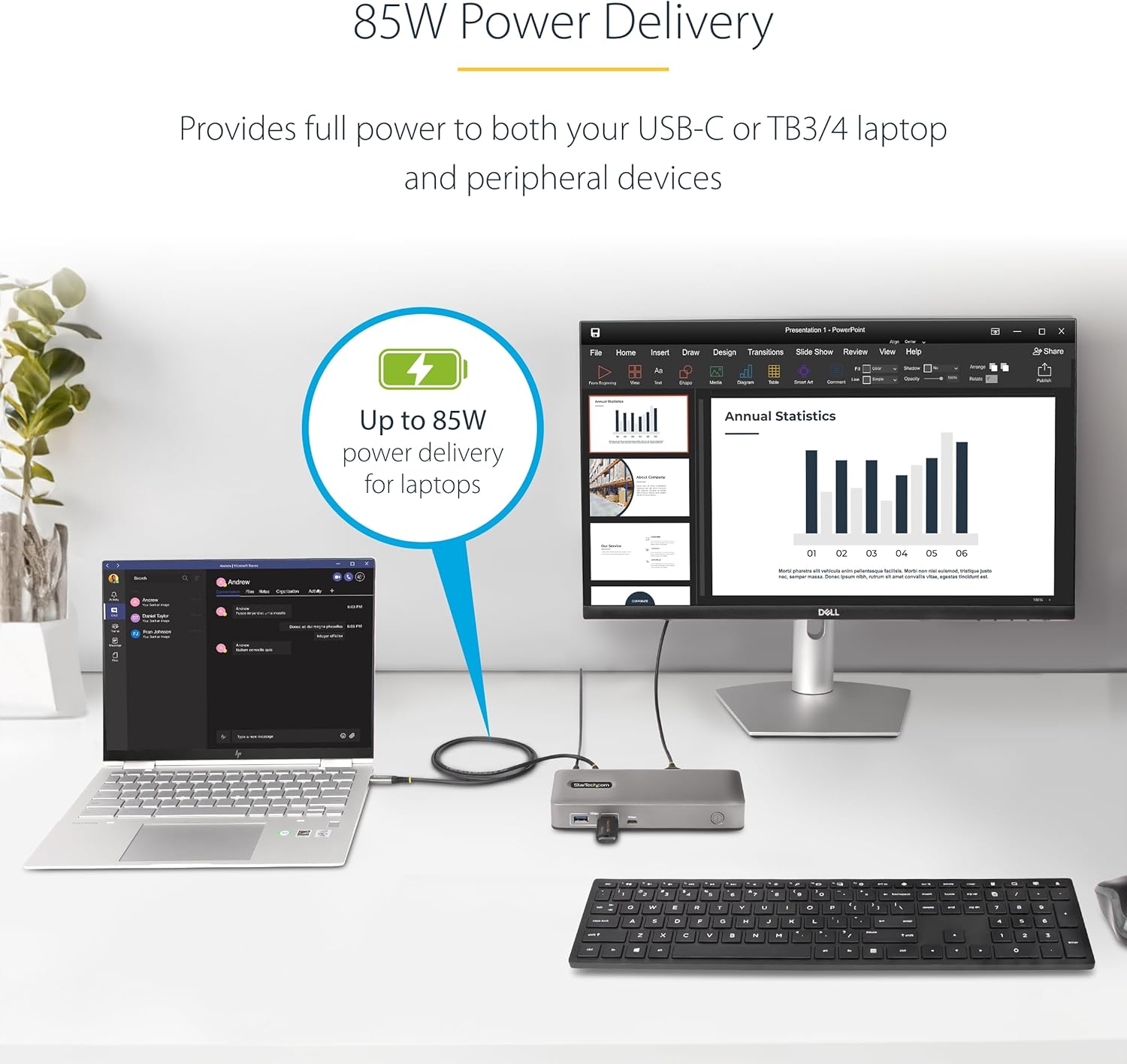

- 85W POWER DELIVERY 3.0: The port replicator includes a fully spec'd power adapter that provides full power to laptop and peripheral devices unlike consumer docks that use SMART power; Front-facing power button to turn docking station on/off

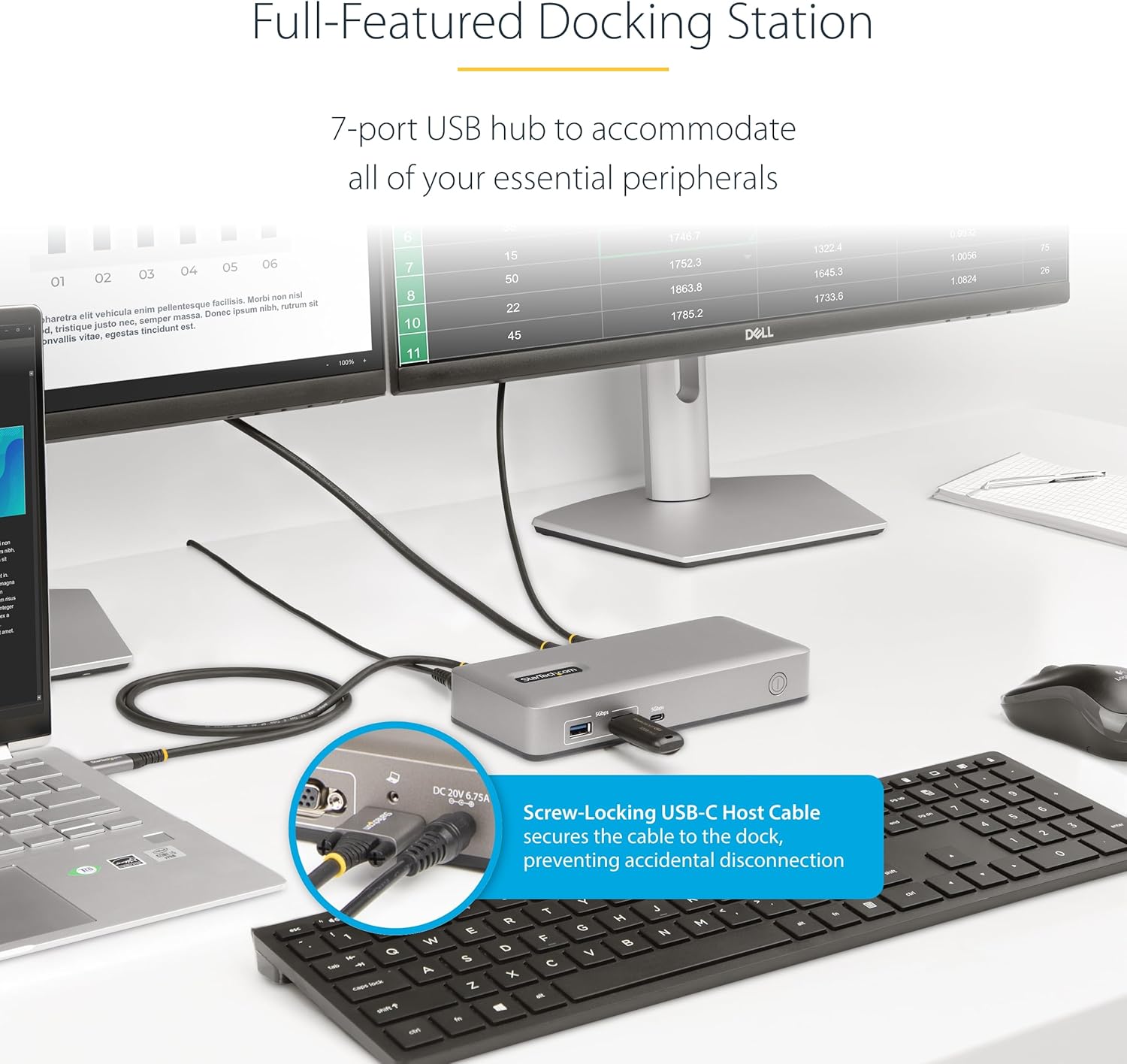

- DEVICE SECURITY: Includes USB-IF Certified 3.3ft (1m) Locking USB-C host cable; Locking USB-C host port; Mounting holes for optional bracket; K-slot and Nano Slot; USB Event Monitoring & Windows Layout utilities

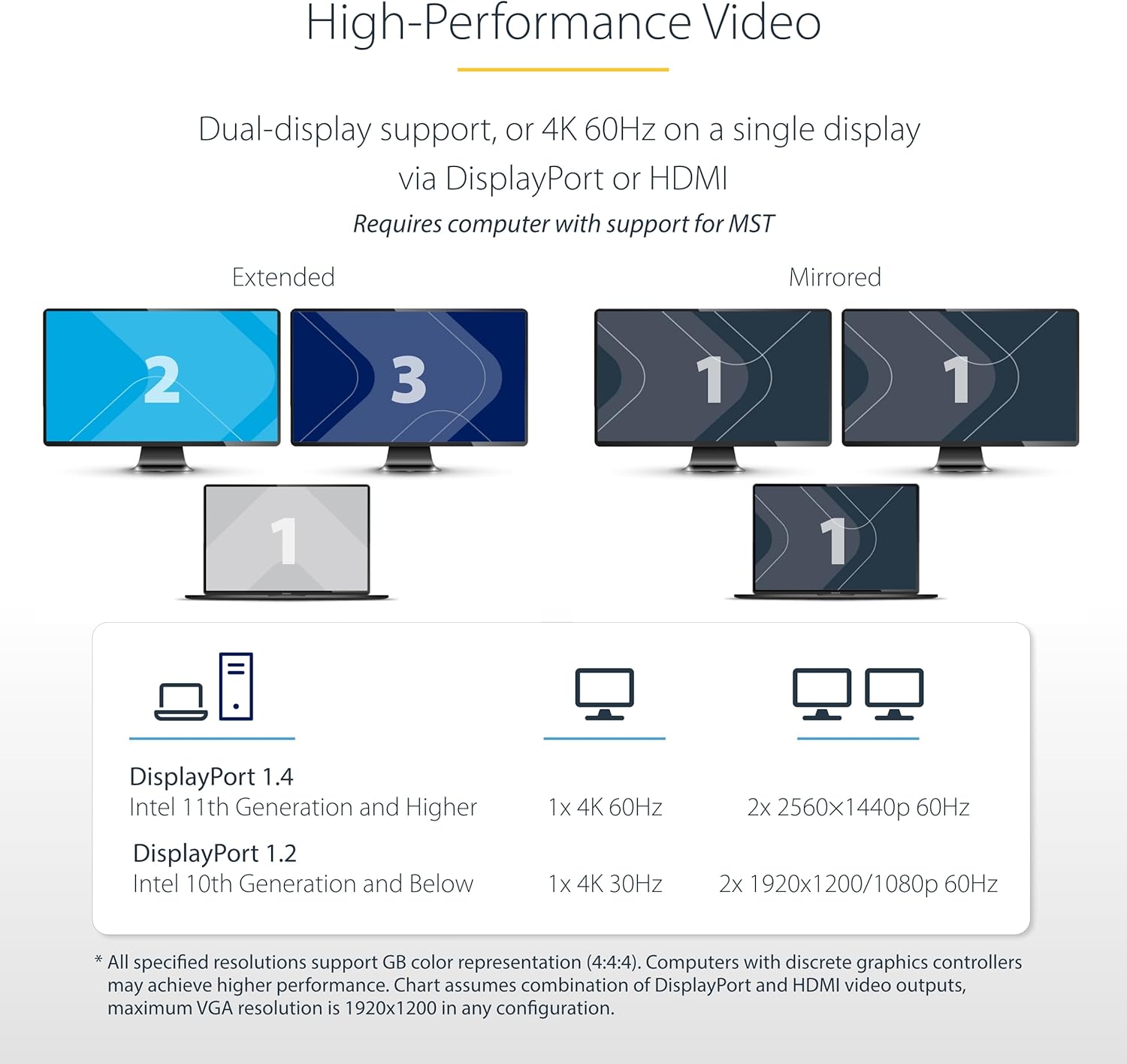

- HIGH-PERFORMANCE VIDEO: Supports up to 2x 2560x1440 60Hz through DP & HDMI ports or single 4K 60Hz (Intel 11th Gen or higher with DP 1.4 Alt Mode & MST req. for max performance); 1080p VGA; MST utilizes laptop GPU for uncompressed video & low CPU usage

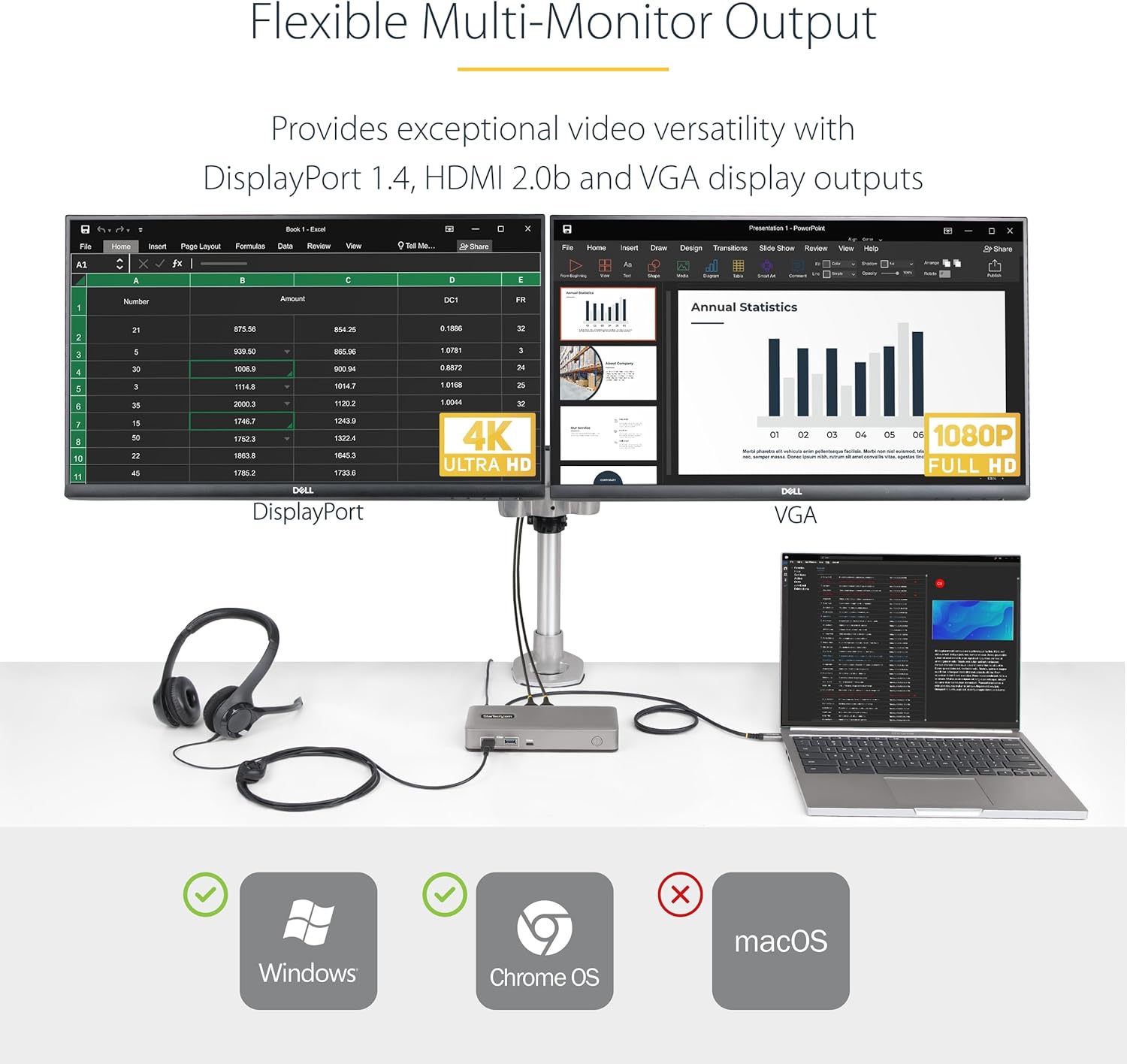

- FLEXIBLE MULTIMONITOR OUTPUT: Provides video versatility with DisplayPort (DP) 1.4, HDMI 2.0b and VGA display outputs; Choose between single or dual video; For dual video pair DP as the primary output with HDMI or VGA as the secondary output

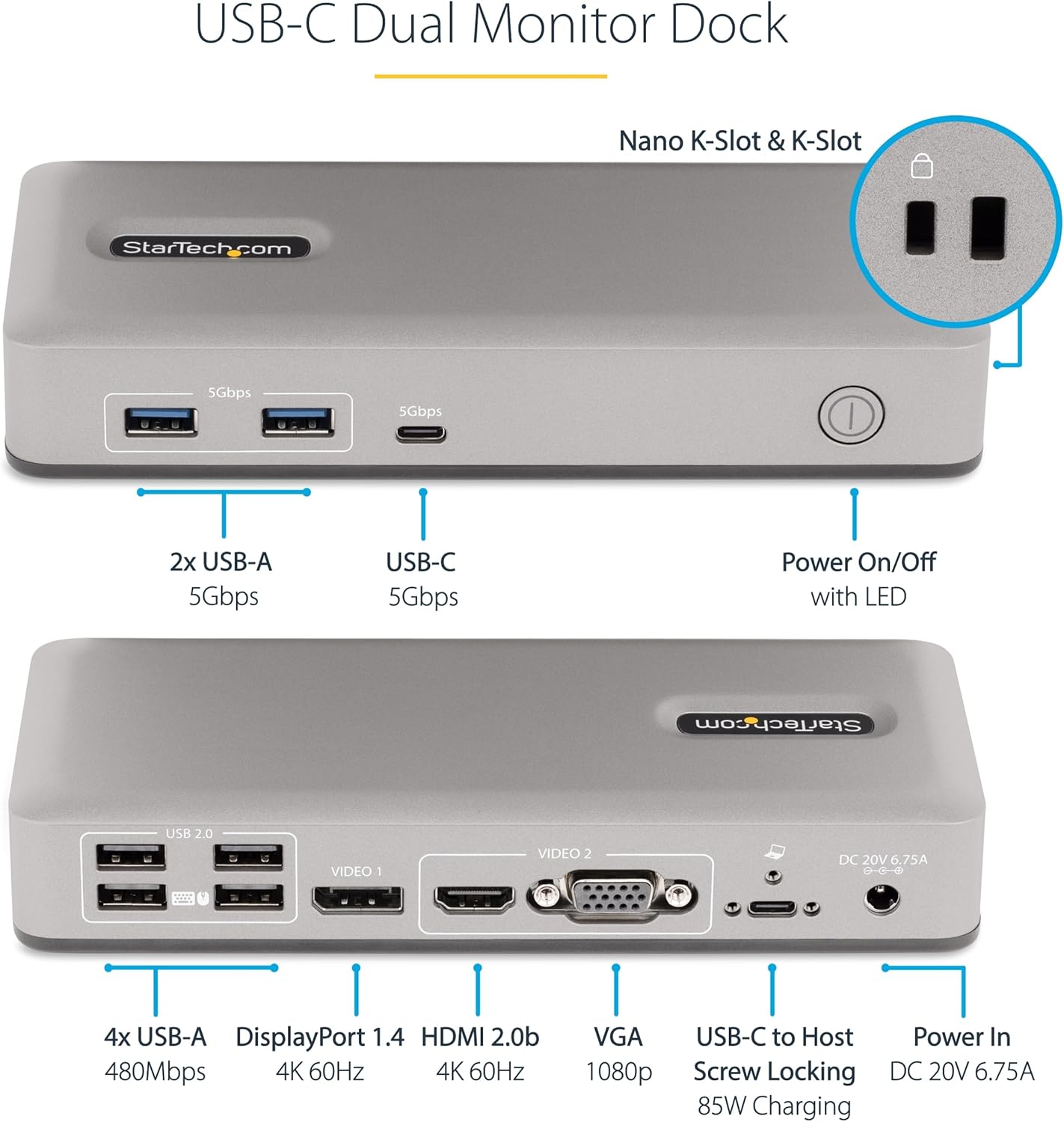

- 7-PORT USB HUB: The dock features a wide variety of extra USB ports for device connectivity; 2x USB 3.2 Type-A (5Gbps) front facing ports, 1x USB 3.2 5Gbps Type-C front facing port, 4x USB 2.0 Type-A HID rear facing ports; Features Driverless installation
Specifications:
| Materials & Construction | |
| Color | Space Gray |
| Product Details | |
| Compatible With | Compatible With Usb-C And Thunderbolt 3/4 Computers |
| Displayport Version | 1.4 |
| Hardware Interface | USB 3.2 Gen 1 |
| Hdmi Version | 2.0b |
| Number Of Displayports | 1 |
| Number Of Displays Supported | 2 |
| Number Of Hdmi Ports | 1 |
| Number Of Usb 3.2 Gen 1 Type-A Ports | 2 |
| Number Of Usb Type-A Ports | 6 |
| Number Of Usb Type-C Ports | 1 |
| Number Of Vga Outputs | 1 |
| Ports | Vga 15-Pin D-Sub; Hdmi |
| Power Source Type | Power Adapter |
| Screen Mode Supported | 4k @ 60hz; Full Hd; Wuxga; Qhd |
| Usb Power Delivery | 85w |
| Usb Type-A | Yes |
| Usb Type-C Detail | 2 X Usb 3.2 Type-C (24 Pin, Gen 1, 5gbps) |
| Warranty | 3-Year Limited |
| Wattage | 85 |

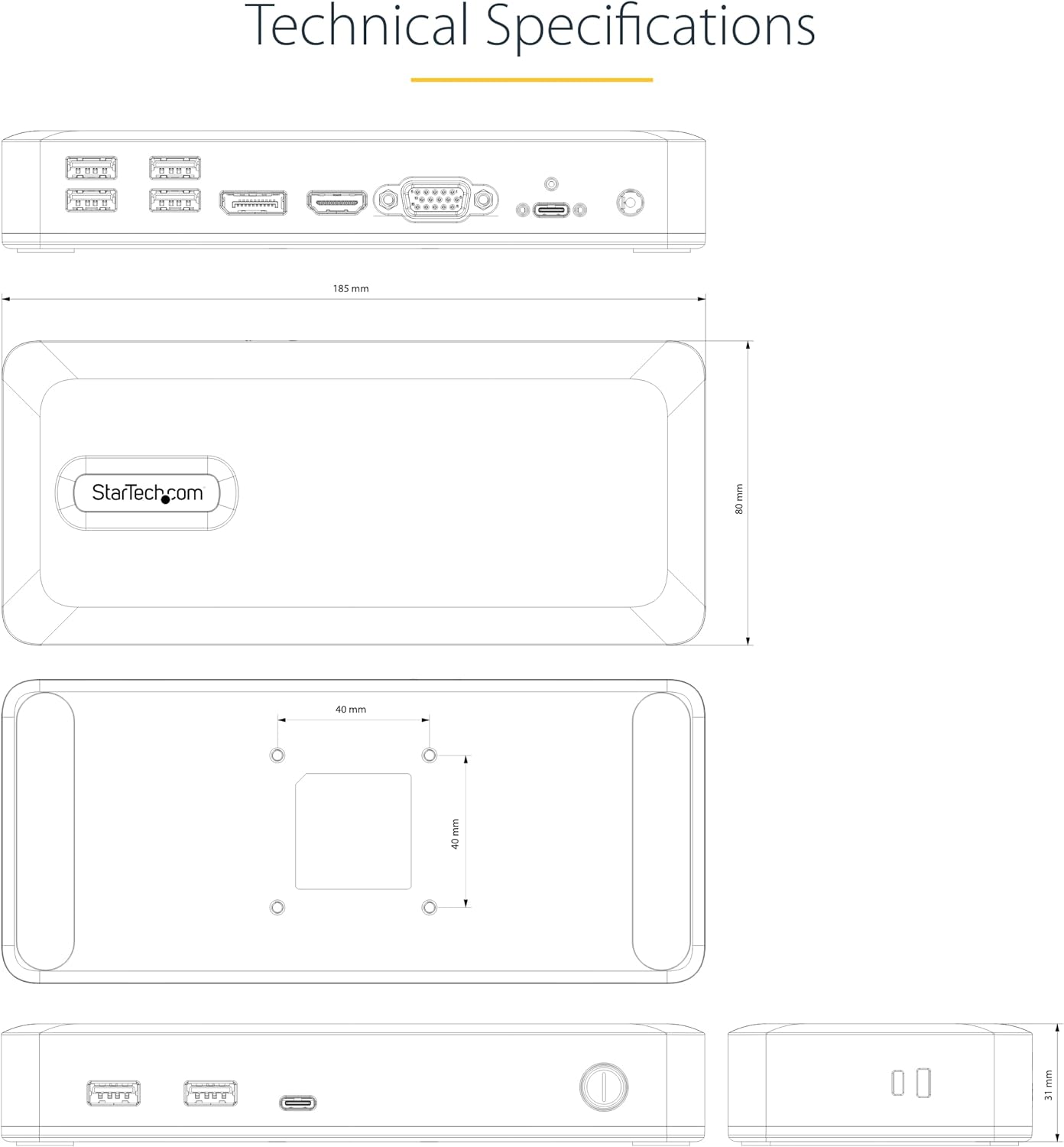

| Sizing & Dimensions | |
| Height | 1.2 inches |
| Length | 3.1 inches |
| Product Dimensions | 3.1 x 7.3 x 1.2 inches |
| Weight | 0.61 pounds |
| Width | 7.3 inches |
| Technical Specifications | |
| Number of Ports | 12 |
| Operating System Supported | Windows 7; Windows 8; Windows 8.1; Windows 10; Windows 11; ChromeOS |
| Total HDMI Ports | 1 |
| Total USB Ports | 8 |
| Wattage | 85 |
