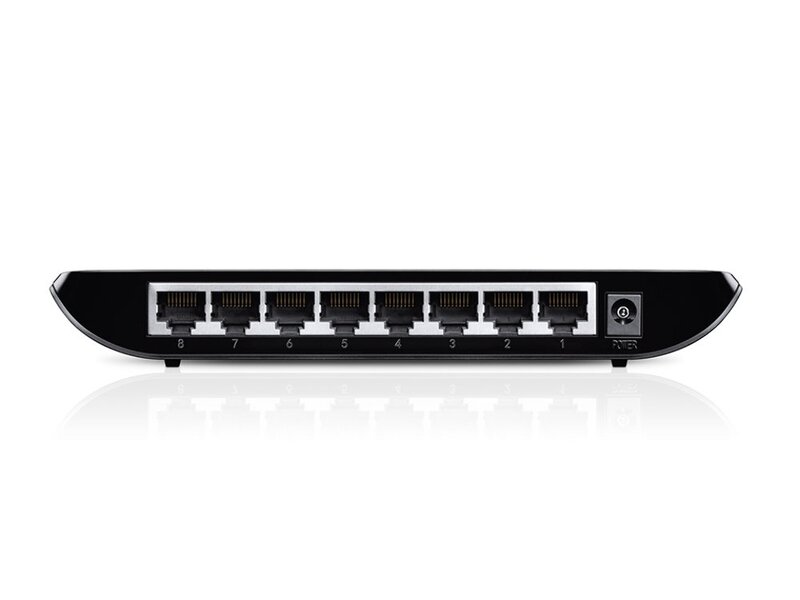

TP-Link TL-SG1008D 8-Port 10/100/1000M Gigabit Switch
Customize
Specifications * Mfr Part Number: TL-SG1008D * Features: * * Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode * Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput * Supports MAC address auto-learning and auto-aging * LED indicators for monitoring power; link; activity * Plastic case; desktop or wall-mounting design * External power adapter supply * Standards and Protocols: IEEE802.3; 802.3u; 802.3ab; 802.3x; CSMA/CD; TCP/IP * Ports: 8x 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) * Basic Function: * * Wire-speed Performance * MAC Address Auto-Learning and Auto-aging * IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode * Backbound Bandwidth: 16Gbps * MAC Address Table: 4k * Forwarding Rate: * * 10BASE-T: 14880pps/port * 100BASE-TX: 148800pps/port * 1000BASE-T: 1488000pps/port * Transmission Method: Store-and-Forward * Network Media: * * 10Base-T: UTP category 3; 4; 5 cable (maximum 100m) * EIA/TIA-568 100Ã STP (maximum 100m) * 100Base-Tx: UTP category 5; 5e cable (maximum 100m) * EIA/TIA-568 100Ã STP (maximum 100m) * 1000Base-T: UTP category 5; 5e cable (maximum 100m) * LED Indicator: Power; 10/100M; 1000M * Safety & Emission: FCC; CE * Power: External Power Adapter * Dimensions(WxDxH) 7.9 x 5.5 x 1.1 inch / 200.0 x 140.0 x 28.0 mm
- Tp-link Tl-sg1008d 10/100/1000mbps 8-port Gigabit Desktop Switch, 10gbps Switching Capacity - 8 Ports - 8 X Rj-45 - 10/100/1000base-t-rohs Compliance
Specifications:
| Materials & Construction | |
| Case Material | Plastic |
| Product Details | |
| Data Transfer Rate | 1000 Megabits Per Second |
| Global Trade Identification Number | 00069353640202, 00845973020262 |
| Interface Type | RJ45 |
| Item model number | TL-SG1008D |
| Model | Tl-Sg1008d 8-Port Gigabit Desktop Switch |
| Number Of Ports | 8 |
| Platform | BBC Micro |
| Switch Type | Unmanaged |
| UPC | 012304982791 072091603941 845973020262 638548102612 168141531835 172302747041 230494831778 033585524081 778890698644 069353640202 191120081052 |
| Voltage | 9 Volts (DC) |
| Sizing & Dimensions | |
| Height | 1.1 inches |
| Length | 7.9 inches |
| Product Dimensions | 7.9"L x 5.5"W x 1.1"H |
| Product Weight | 0.9110 |
| Weight | 7.2 ounces |
| Width | 5.5 inches |
| Technical Specifications | |
| Backbound Bandwidth | 16Gbps |
| Forwarding Rate | 1000BASE-T: 1488000pps/port |
| LED Indicator | Power; 10/100M; 1000M |
| MAC Address Table | 4k |
