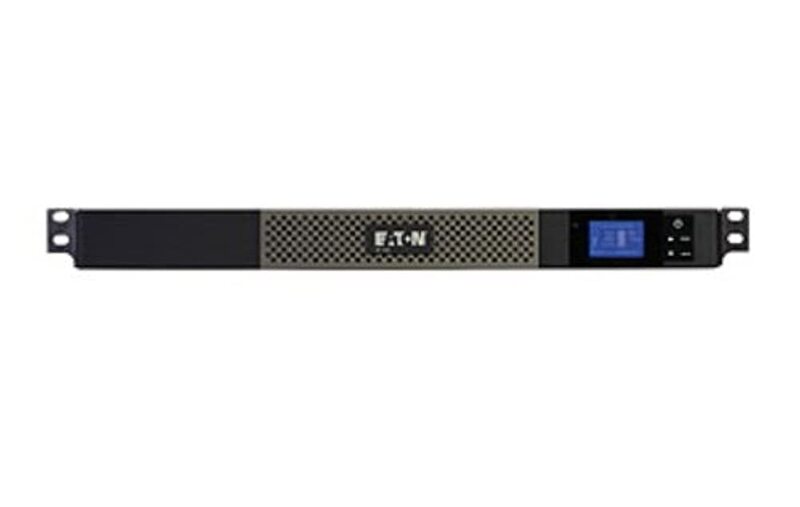

Eaton 5P 850VA 600W 230V Line-Interactive UPS, C14 Input, 4 C13 Outlets, True Sine Wave, Cybersecure Network Card Option
Customize
The Eaton 5P850GR is an energy-efficient, line-interactive 1U rack-mount UPS designed to protect critical equipment from power interruptions while offering advanced energy metering and management features. It provides 850 VA / 600 W power capacity with true sine wave output and four C13 outlets fed from a C14 input. Exclusive ABM technology and 3-stage charging extends internal battery life up to 50%. A 5-button graphical LCD displays critical UPS data and load status at a glance. Optional NETWORK-M2 Gigabit network card enables full remote access and control. The unit is UL listed, uses lead-acid batteries, and includes cable(s). Multiple output voltages are supported (240 V; 208 V; 132 V; 220 V; 230 V). Designed for energy efficiency and Eco-conscious deployments (Energy Star; RoHS), it helps limit the energy used by connected equipment. Typical features include pure sine wave output, enhanced manageability, adjustable tolerance/sensitivity, and improved battery runtime characteristics. Back-up supports safe shutdown and file save operations during outages. Warranty: 3-Year Limited.
- Stronger, longer battery life
- Adjustable tolerance and sensitivity
- Pure sinewave output
- Performance and efficiency
- Manageability
Specifications:
| Materials & Construction | |
| Battery Cell Composition | Lead Acid |
| Color | black |
| Product Details | |
| Battery Run Time | 4 Min |
| Cable Included | Yes |
| Eco Label Standard | Energy Star; Rohs |
| Eco-Conscious | Energy Efficient; Helps Save Energy |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs) |
| Load Capacity (Watt) | 600 |
| Power Capacity | 850 va |
| UL Listed | Yes |
| UPS Battery Type | Lead-Acid |
| Vertical Rack Space | 1U |
| Voltage (Input) | 220 V |
| Voltage (Output) | 240 V; 208 V; 132 V; 220 V; 230 V |
| Warranty | 3-Year Limited |
| Sizing & Dimensions | |
| Height | 7 inches |
| Length | 23.25 inches |
| Product Dimensions | 23.25 x 21.75 x 7 inches |
| Size | 1U |
| Weight | 40.2 pounds |
| Width | 21.75 inches |
| Technical Specifications | |
| Battery Technology | Exclusive ABM technology with 3-stage charging |
| Manageability | Optional NETWORK-M2 Gigabit network card for remote access and control |
| Performance and Efficiency | Pure sinewave output; energy metering and manageability features |
