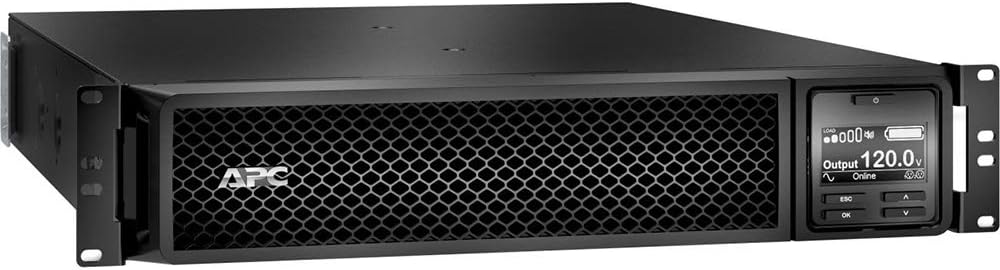

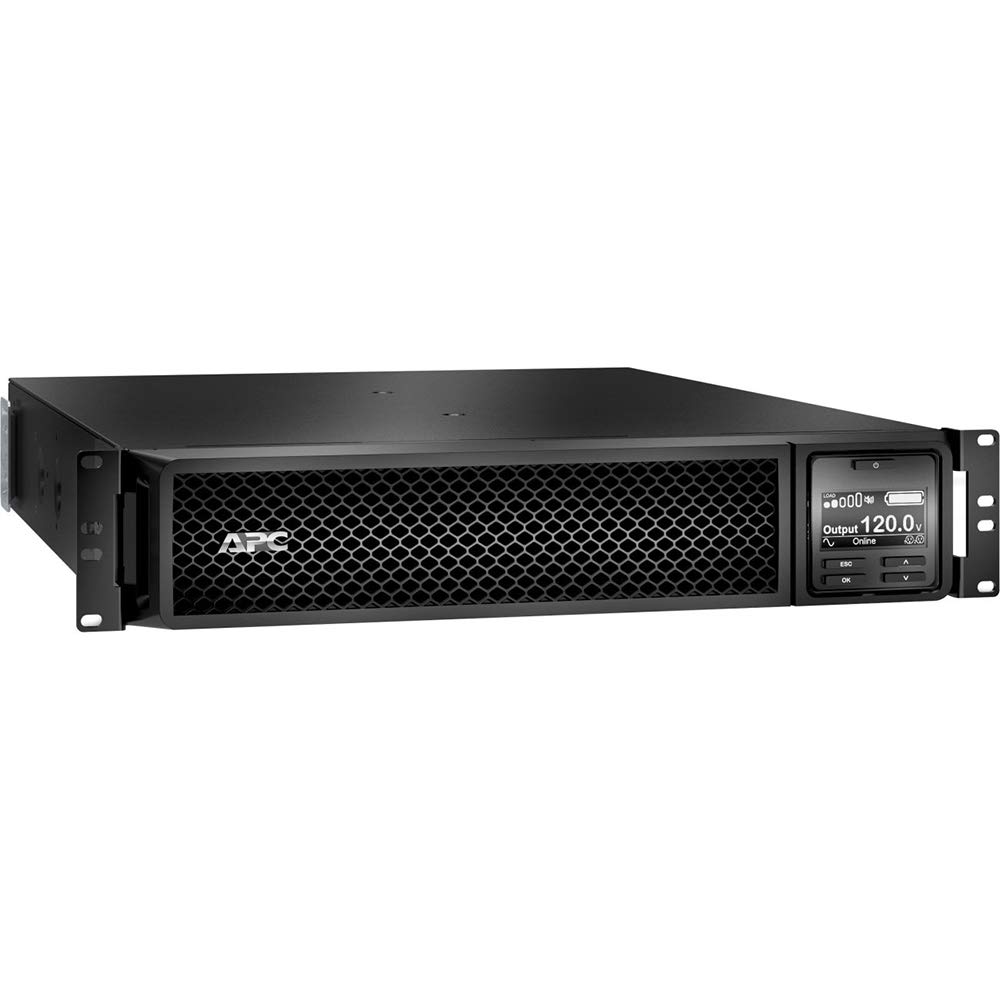

APC Smart-UPS On-Line, 1500VA, Rackmount 2U, 120V, 6x 5-15R NEMA outlets, Network Card, Extended runtime
Customize
The APC Smart-UPS On-Line SRT1500RMXLA-NC delivers double-conversion on-line pure sine wave power protection for critical equipment. Features a preinstalled Network Management Card for network-based UPS monitoring and management, graceful shutdown for physical and virtual servers and HCI clusters, and support for up to 10 external battery packs (SRT48RMBP) for extended runtime. The 2U rackmount unit provides 1500 VA / 1350 W capacity with 6x 5-15R NEMA outlets, Rack/Tower convertible configuration (rail kit included), and energy-efficient design. Typical uses include servers, storage, voice/data networks, medical labs, and light industrial applications. Key specifications include Lead-Acid (AGM) battery composition, ~48.5 lb item weight, product dimensions approximately 17.01 x 19.88 x 3.35 inches, 5 minute standby runtime, ~3 hour recharge, 120 V input/output, 432 Joule surge rating, and a 3-Year Limited warranty. Eco and compliance information: Energy Star listed, RoHS declaration and REACH documentation available from the manufacturer; California Proposition 65 warning applies. This model includes mounting hardware and a 1-year Secure Network Management Card subscription.
- 120 V AC Output
- 120 V AC Input
- 5 Minute Stand-by
- 3 Hour Recharge
- 2U Rack-mountable
Specifications:
| Materials & Construction | |
| Battery Cell Composition | Lead-Acid, AGM |
| Color | Black |
| Product Color | Black |
| Product Details | |
| Battery Cell Composition | Lead-Acid, AGM |
| Battery Run Time | 5 Min |
| Charge Time (Approx) | 3 hr |
| Item model number | SRT1500RMXLA-NC |
| Load Capacity (Watt) | 1350 |
| Model | 1500va Rm Network Card |
| Number Of Surge Only Outlets | 6 |
| Power Capacity | 1500 va |
| Rack Mountable | Yes |
| Series | APC SRT 1500 |
| Surge Rating | 432 Joule |
| UPS Type | Online |
| Vertical Rack Space | 2u |
| Sizing & Dimensions | |
| Depth | 20 In. |
| Height | 3.35 inches |
| Item Dimensions Lx Wx H | 17.01 x 19.88 x 3.35 inches |
| Length | 17.01 inches |
| Product Dimensions | 20"D x 17.01"W x 3.35"H |
| Product Weight | 70.1000 |
| Size | 2U |
| Weight | 48.5 pounds |
| Width | 19.88 inches |
| Technical Specifications | |
| Frequency Response | 50Hz to 20kHz |
| Surge Rating | 432 Joule |
| Voltage (Input) | 120 V |
| Voltage (Output) | 120 V |
| Warranty | 3-Year Limited |
